Application
Checks to be carried out before lifting
a load
WARNING
Never exceed the capacity of the truck. This ca-
pacity is based on the centre of gravity and the lift
height of the load.
Comply strictly with the load diagram! It is not
permitted to increase the capacity by adding extra
weight to the truck. Never exceed the maximum
loads shown! Otherwise, the stability of the truck
can no longer be guaranteed.
Transporting people in order to increase the capa-
city of the truck is prohibited.
.
Example
Weight of load to be
lifted:
Distance between
the load centre of
gravity/fork carriage:
Permissible lift height: 2600 mm (2)
WARNING
The illustrations are only examples.
Only the values stated on your truck's plate should
be taken into consideration.
WARNING
If small items are being transported or if the load
exceeds the height of the fork carriage, a load
protective guard must be installed to prevent the
items from falling on the operator.

Picking up the load

Load pick up from the ground
– Approach the load with caution and with as
much precision as possible.
– Lower the forks and the straddles so that
they can easily be inserted into the pallet.
– Slowly insert the forks at the centre of the
load to be lifted.
1200 kg (3)
600 mm (1)
45728043430 EN - 05/2017

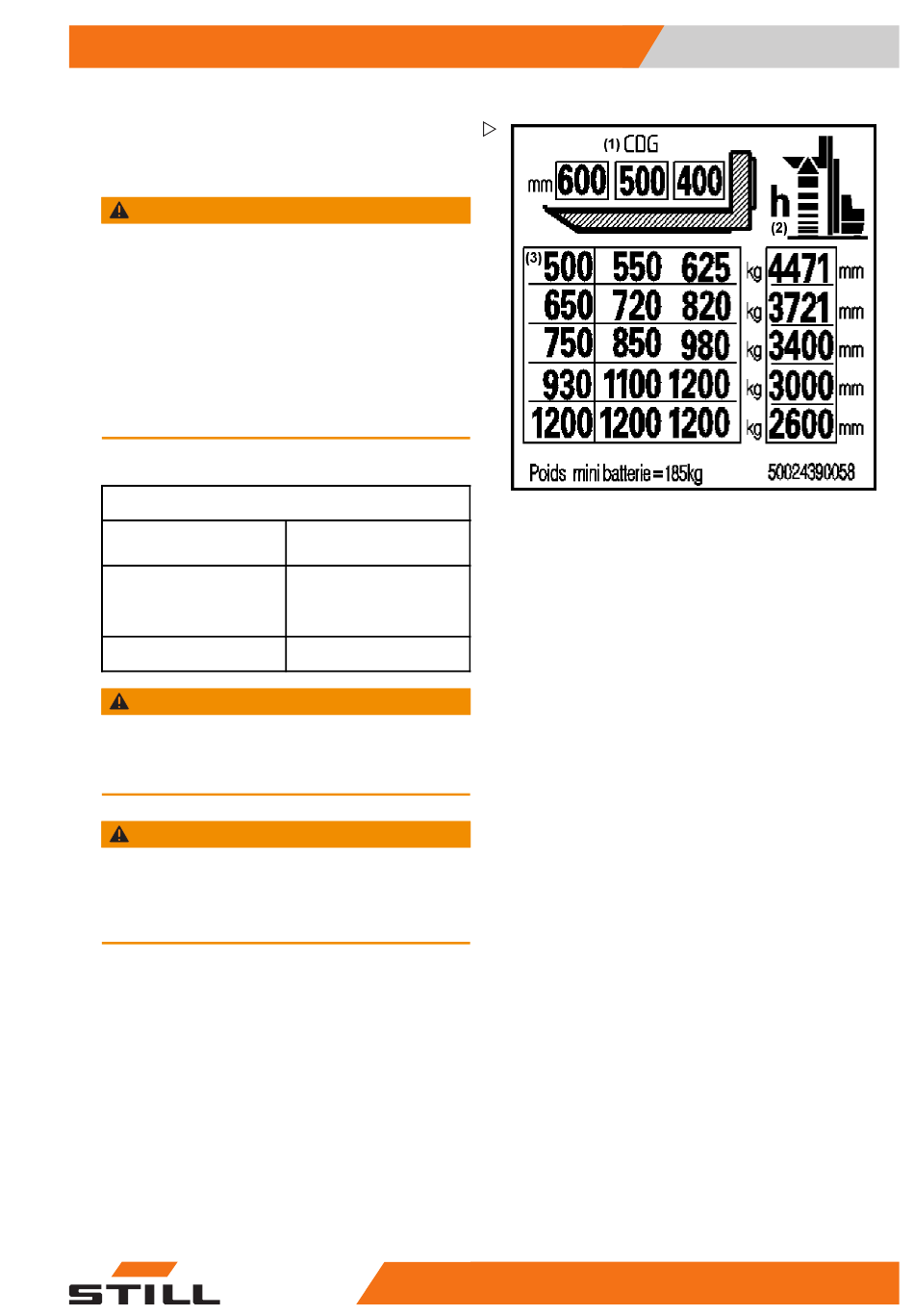

(1) CDG = distance "C" from the centre of
gravity of the load on the forks to the fork
carriage (in mm)
(2) h = lift height of the forks from the ground (in
mm)
(3) Maximum permissible loads "Q" (in kg)
