Markings; Location Of Labels - Still EXV 10 Basic Original Instructions Manual

Overview

Markings

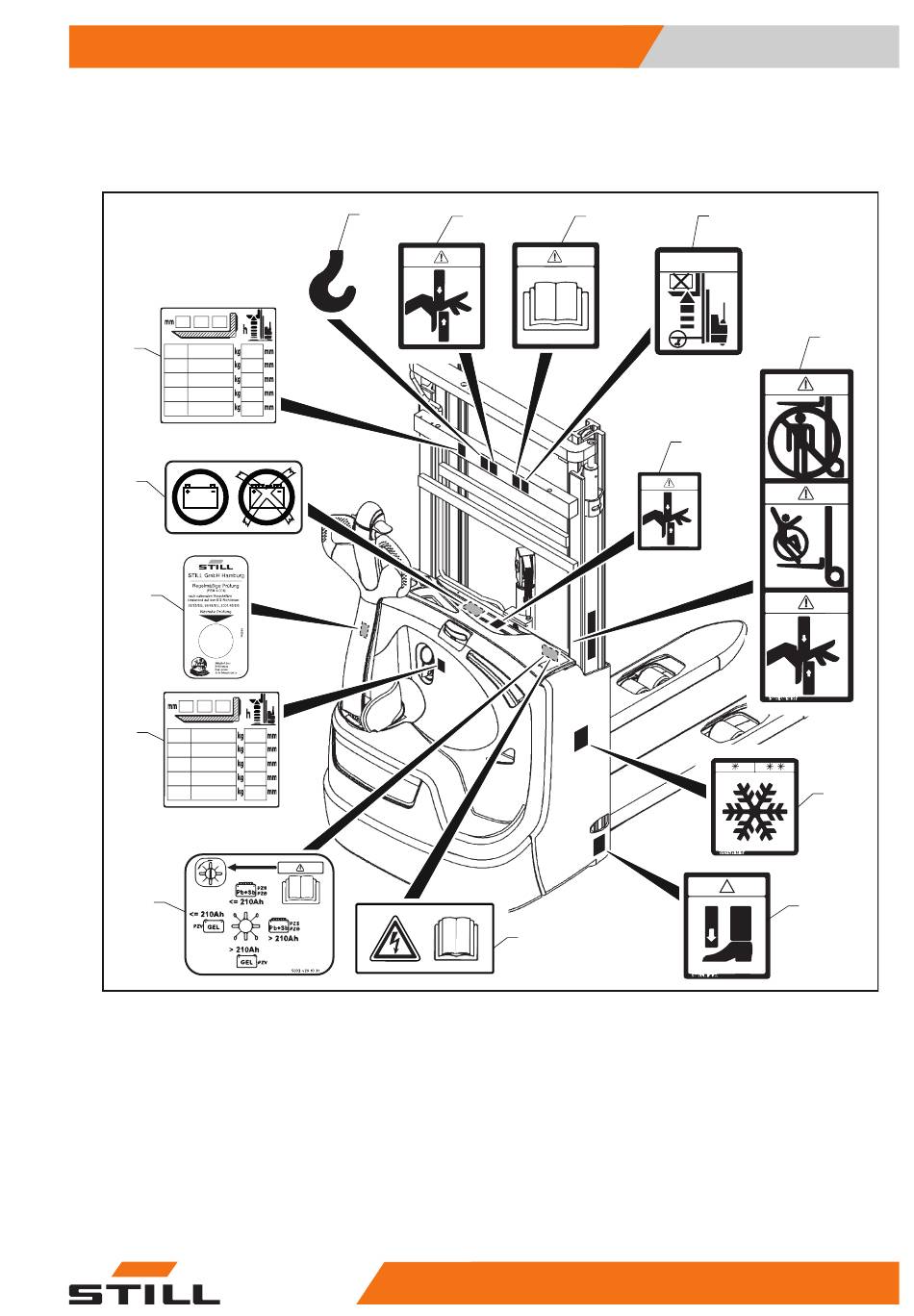

Location of labels

1
8
GEL
Pb+Sb
10
1
9
1 "Truck capacity diagram" label
2 "Danger of crushing hands" label
3 "Hook" symbol
4 "Danger of crushing hands" label
5 "Operating and maintenance manual" label
6 "Lifting danger" label (only on version with
straddle initial lift function "i")
7 "Operating and maintenance manual" label
3
4
7
8
9
10
11
12
13
45728043430 EN - 05/2017
5 6
2
!
Version set up for gel batteries
"On-board battery charger" label
Annual testing label (Germany only)
Warning label
"Danger of crushing feet" label (only on
version with straddle initial lift function "i")
"Cold store" label (on cold store version only)
