Tiller controls

Tiller controls

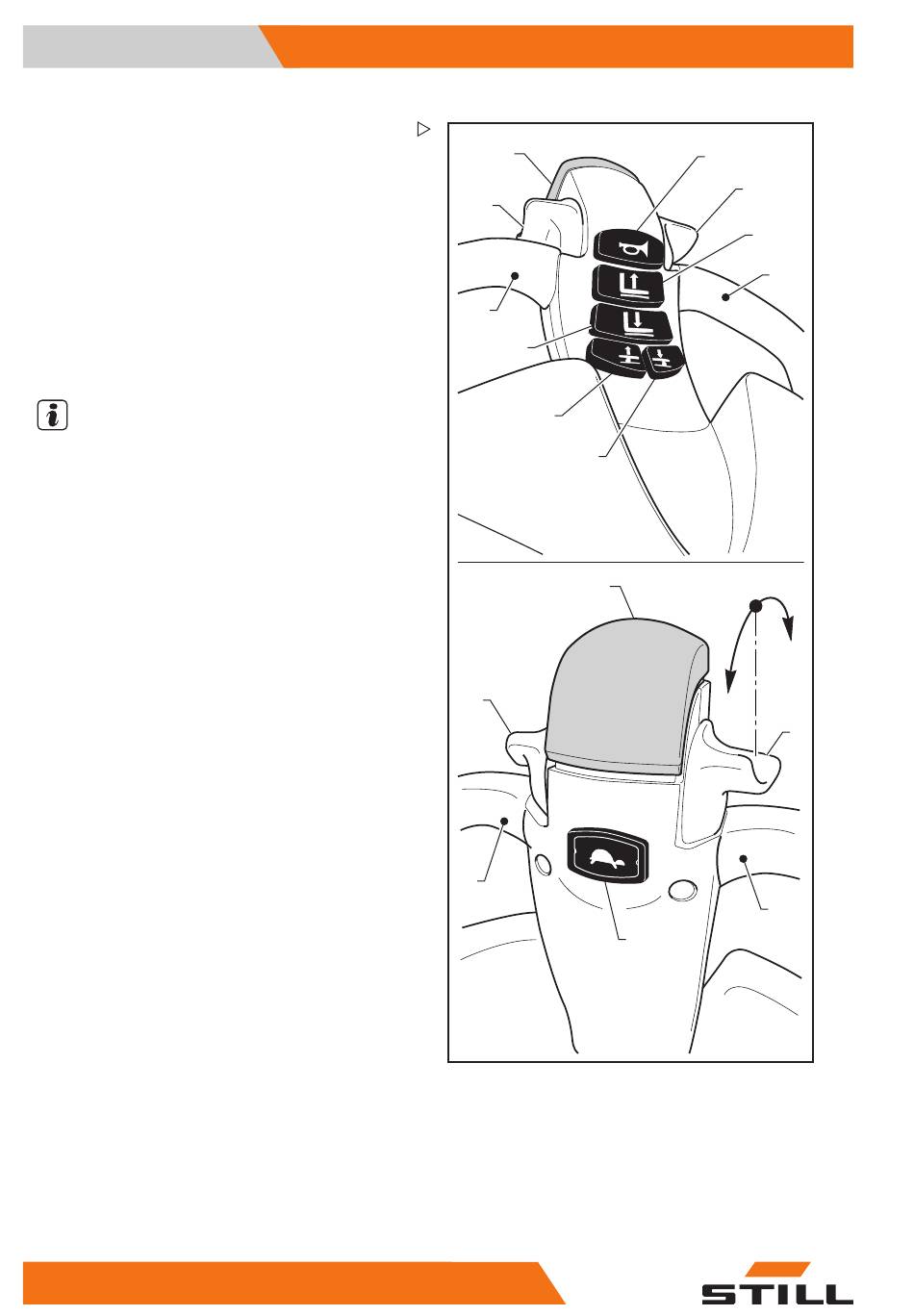

1 — Tiller head handle
2 and 3 — Drive control throttle
4 — Fork lowering button
5 — Fork lifting button
6 — Horn button
7 — Anti-crush button
8 — Creep speed button (optional — Creep
Speed)
9 — Straddle lifting button (optional)
10 — Straddle lowering button (optional)
NOTE
The following controls are active with the tiller
in the "working position".
Tiller head handle (1)
• Areas designed for holding the tiller head
during use
Drive control throttle (2 – 3)
• When the throttle (2 or 3) is turned in
direction (A), the truck starts moving in the
direction of the forks
• When the throttle (2 or 3) is turned in
direction (B), the truck starts moving in the
direction of the operator
• The truck speed increases or decreases
according to the angular position of the
throttle
• Releasing the throttle causes the truck to
brake and then come to a standstill
Fork lowering button (4)
• Press the button (4) to lower the fork arms
• Fork movement can be stopped at any time
by releasing the button (4) The forks will
stop in the position reached
• The fork lowering button (4) is active only
when the tiller is angled to the working
position
