7 +5V
8 +5V
Connector Type
X8: 15 pin SATA connector.
Note
The voltage rails +3.3V, +5V and +12V have maximum current of 2 amps each.
5.8.3

Mini SATA

The mini SATA connector X6 on the conga-IA4 is used to connect mSATA devices. This connector shares the SoC's SATA1 signals with SATA
connector CN2. Connector CN2 will not function whenever an mSATA card is inserted into the mSATA connector. Therefore, if you plan to use
connector CN2, do not insert an mSATA device into connector X6.
The mSATA connector also supports mini PCIe devices. When an mSATA or mPCIe device is connected to X6, the conga-IA4 automatically
detects the type of device that is attached.
Table 32 mSATA (Connector X6) Pin Description.
Pin Signal
1 Reserved
3 N.C.
5 N.C.
7 Reserved
9 GND
11 Reserved
13 Reserved
15 GND
17 Reserved
19 N.C.
21 Card_Present *
23 +B
25 -B
Copyright © 2016 congatec AG
15 12V
Pin Signal
2 +3.3V
4 GND
6 +1.5V
8 N.C.
10 N.C.
12 N.C.
14 N.C.
16 N.C.
18 GND
20 Reserved
22 Reserved
24 +3.3V
26 GND
M43
M44
M46
IA40m12.indd

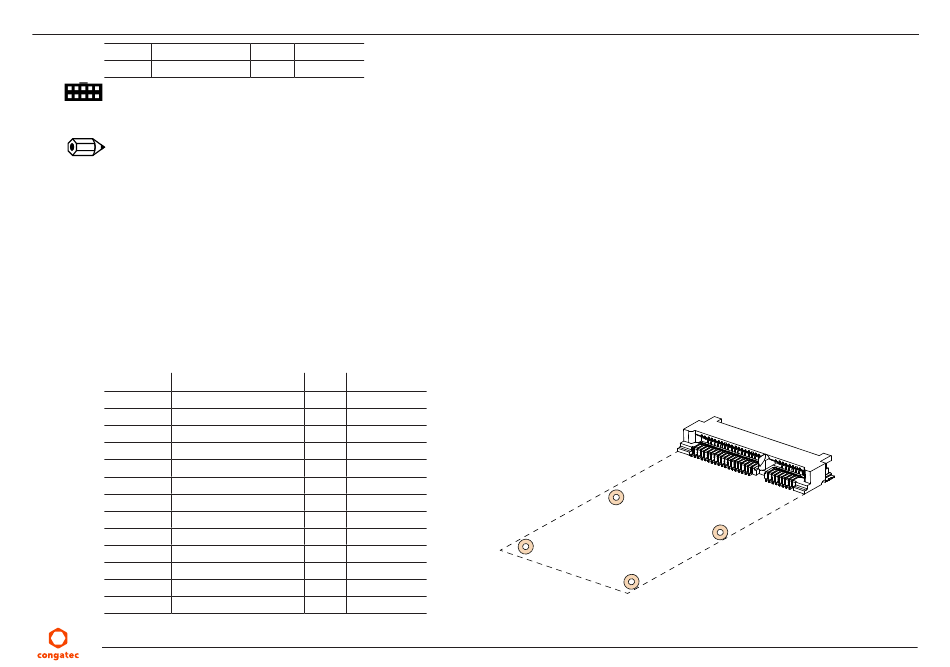

mSATA/mPCIe Socket
(Connector X6)
X6
M45
