5.6.2
Internal USB Connector
The conga-IA4 offers two USB 3.0 ports on connector X60 (internal header). The ports are backward compatible to USB 2.0 devices.
Table 27
USB 3.0 Header (Connectors 60) Pinout Description
Port 3
Pin Signal
Description
1
+5V
+5V supply
2
SS3_RX-
SuperSpeed receiver differential pair (-ve)
3
SS3_RX+ SuperSpeed receiver differential pair (+ve) 13
4
GND
Ground
5
SS3_TX-
SuperSpeed transmitter differential pair
(-ve)
6
SS3_TX+ SuperSpeed transmitter differential pair
(+ve)
7
GND
Ground
8
Data3-
High-speed differential transceiver (-ve)
9
Data3+
High-speed differential transceiver (+ve)
10
NC
Not Connected
Connector Type
X60: 2.54mm, 2x10 pin header
Note
Connector X60 has a maximum current of 1.2A.
congatec offers a cable for connector X60 (see section 1.2.2 "Optional Accessories"). For more information, contact congatec technical
solution department.
Copyright © 2016 congatec AG
Port 2
Pin Signal
Description
11
Data2+
High-speed differential transceiver (+ve)
12
Data2-
High-speed differential transceiver (-ve)
GND
Ground
14
SS2_TX+
SuperSpeed transmitter differential pair
(+ve)
15
SS2_TX-
SuperSpeed transmitter differential pair
(-ve)
16
GND
Ground
17
SS2_RX+ SuperSpeed receiver differential pair (+ve)
18
SS2_RX-
SuperSpeed receiver differential pair (-ve)
19
+5V
+5V supply
20
No Pin
Empty
IA40m12.indd

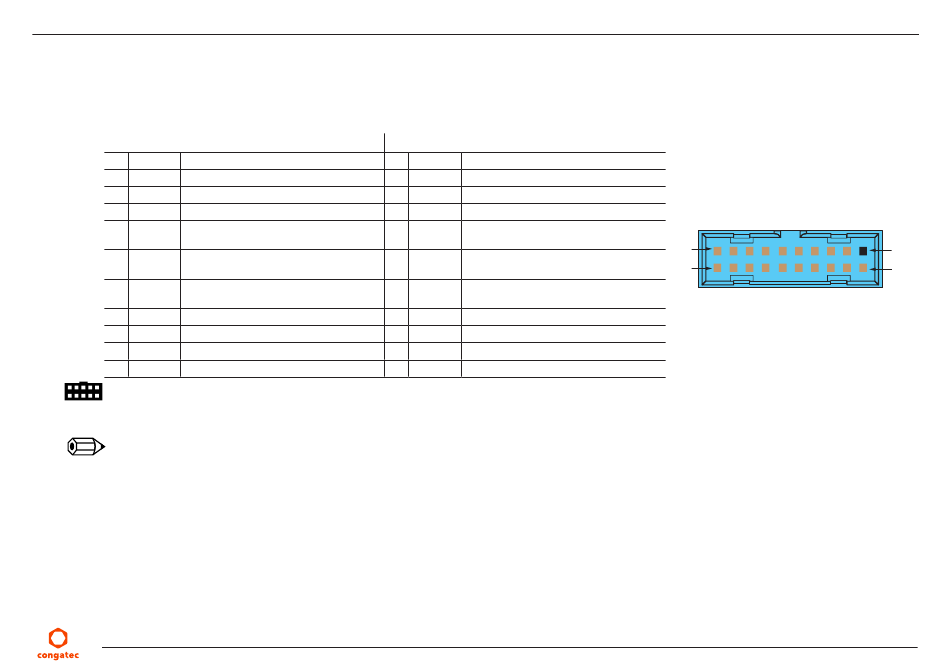

Internal USB 3.0 - Connector X60
Pin 11
Pin 10
No Pin
Pin 1
35/97
