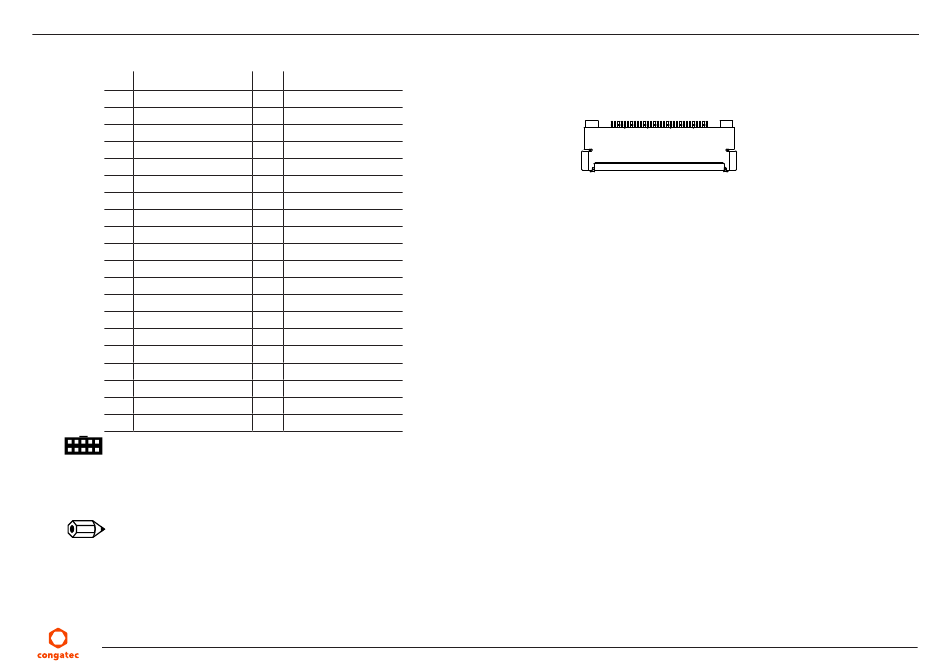

Table 34 Connector X32 Pinout Description
Pin Signal Pin
1 LVDS_A3+ 21
2 LVDS_A3- 22
3 LVDS_A2+ 23
4 LVDS_A2- 24
5 LVDS_A1+ 25
6 LVDS_A1- 26
7 LVDS_A0+ 27
8 LVDS_A0- 28
9 LVDS_B3+ 29
10 LVDS_B3- 30
11 LVDS_B2+ 31
12 LVDS_B2- 32
13 LVDS_B1+ 33
14 LVDS_B1- 34
15 LVDS_B0+ 35
16 LVDS_B0- 36
17 EDID_GND 37
18 LCD_VCC 38
19 LCD_VCC 39
20 LCD_VCC 40
Connector Type
X32: 0.5mm, 40 pin ACES connector.
Possible Mating Connector: ACES 88441-40 and ACES 50204-40.
Note
congatec offers cables and adapter for the LVDS interface (see section 1.2.2 "Optional Accessories"). For more information, contact congatec
technical solution department.
Copyright © 2016 congatec AG
Signal
N.C.
EDID_3.3V
LCD_GND
LCD_GND
LCD_GND
LVDS_A_CLK+
LVDS_A_CLK-
BKLT_GND
BKLT_GND
BKLT_GND
EDID_CLK
LVDS_BKLT_EN
LVDS_BKLT_CTRL
LVDS_B_CLK+
LVDS_B_CLK-
BKLT_PWR
BKLT_PWR
BKLT_PWR
N.C
EDID_DATA
LVDS Connector X32
