Example 6: Recalling a Preset

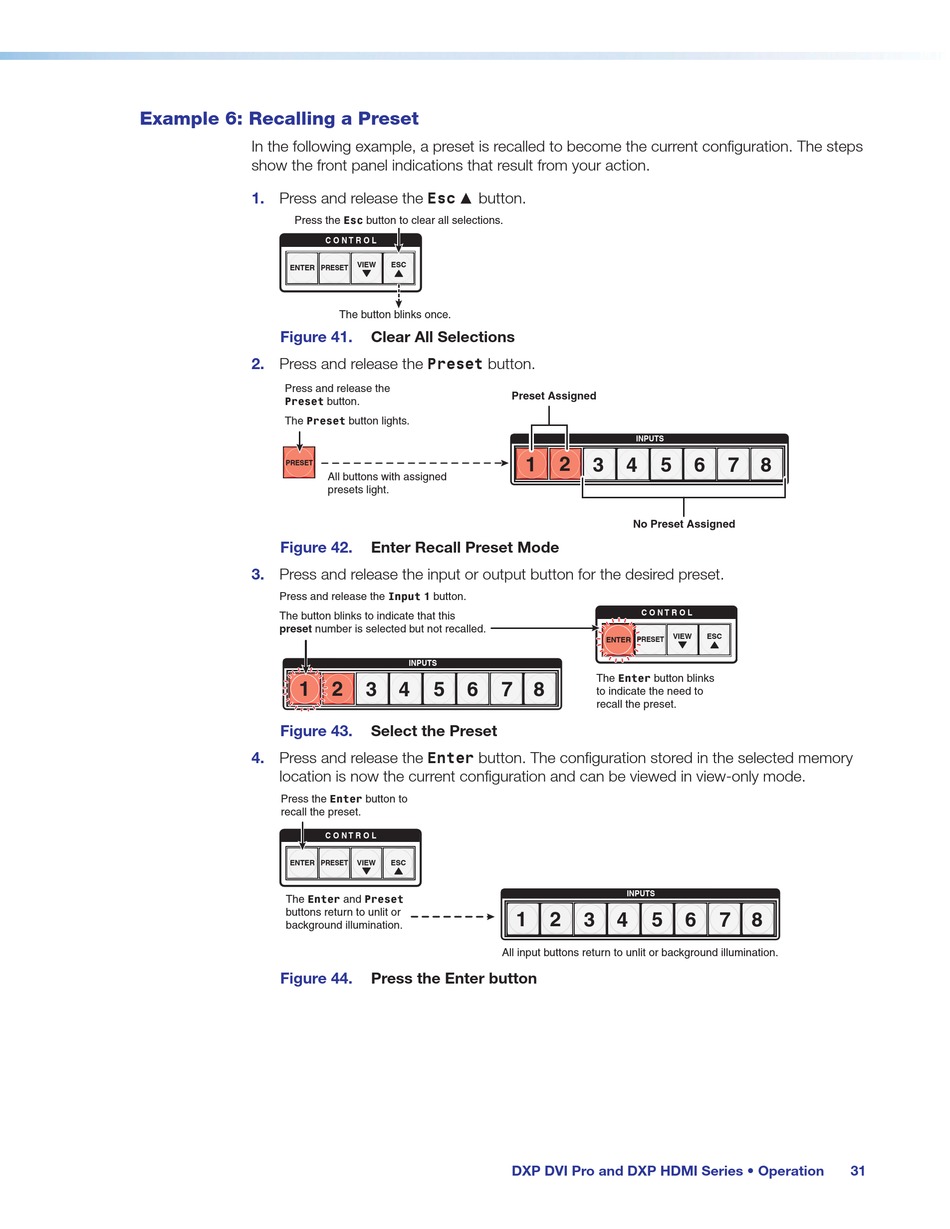

In the following example, a preset is recalled to become the current configuration. The steps
show the front panel indications that result from your action.
1. Press and release the Esc
Press the Esc button to clear all
ENTER
Figure 41.
2. Press and release the Preset button.
Press and release the
Preset button.
The Preset button lights.
PRESET
Figure 42.
3.
Press and release the input or output button for the desired preset.
Press and release the Input 1 button.
The button blinks to indicate that this
preset number is selected but not recalled.
1
Figure 43.
4. Press and release the Enter button. The configuration stored in the selected memory
location is now the current configuration and can be viewed in view-only mode.
Press the Enter button to
recall the preset.
ENTER
The Enter and Preset
buttons return to unlit or
background illumination.
Figure 44.
>
button.
selections.
C O N T R O L
VIEW ESC
PRESET
The button blinks once.
Clear All Selections
All buttons with assigned
presets light.
Enter Recall Preset Mode
INPUTS
2
3 4 5 6
Select the Preset
C O N T R O L
PRESET VIEW ESC
Press the Enter button
Preset Assigned
INPUTS
1 2 3 4 5
No Preset Assigned
C O N T R O L
VIEW
ENTER PRESET
The Enter button blinks
7 8
to indicate the need to
recall the preset.
INPUTS
1 2 3 4 5
All input buttons return to unlit or background illumination.
