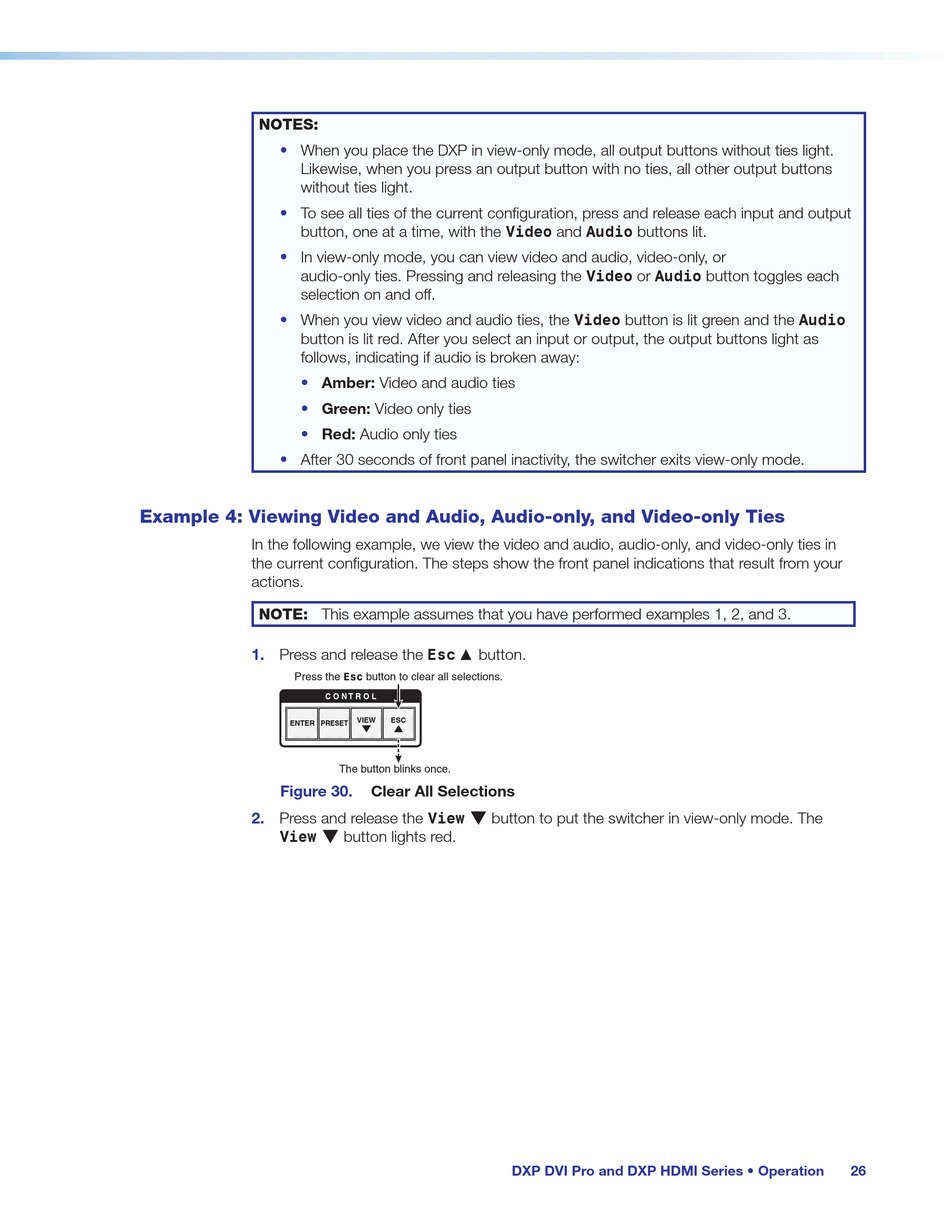

Example 4: Viewing Video And Audio, Audio-Only, And Video-Only Ties - Extron electronics DXP DVI Pro User Manual

NOTES:
• When you place the DXP in view-only mode, all output buttons without ties light.
Likewise, when you press an output button with no ties, all other output buttons
without ties light.
• To see all ties of the current configuration, press and release each input and output
button, one at a time, with the Video and Audio buttons lit.
• In view-only mode, you can view video and audio, video-only, or
audio-only ties. Pressing and releasing the Video or Audio button toggles each
selection on and off.
• When you view video and audio ties, the Video button is lit green and the Audio
button is lit red. After you select an input or output, the output buttons light as
follows, indicating if audio is broken away:
•
•
•
• After 30 seconds of front panel inactivity, the switcher exits view-only mode.

Example 4: Viewing Video and Audio, Audio-only, and Video-only Ties

In the following example, we view the video and audio, audio-only, and video-only ties in
the current configuration. The steps show the front panel indications that result from your
actions.
NOTE: This example assumes that you have performed examples 1, 2, and 3.
1. Press and release the Esc
Press the Esc button to clear all
ENTER
Figure 30.
2.
Press and release the View
View
Amber: Video and audio ties
Green: Video only ties
Red: Audio only ties
>
button.
selections.
C O N T R O L
VIEW ESC
PRESET
The button blinks once.
Clear All Selections

button to put the switcher in view-only mode. The

button lights red.
DXP DVI Pro and DXP HDMI Series • Operation 26
