Status Tab

The Status tab lets you access the System Status Page, below, and the DSVP and
HDCP Page on the next page.

System Status Page

The System Status page provides an overall view of the status of the matrix switcher,
including individual voltages and serial port status (if applicable). The System Status page
is the default page that the switcher downloads when you connect to it. You can access the
System Status page from other pages by clicking the Status tab.

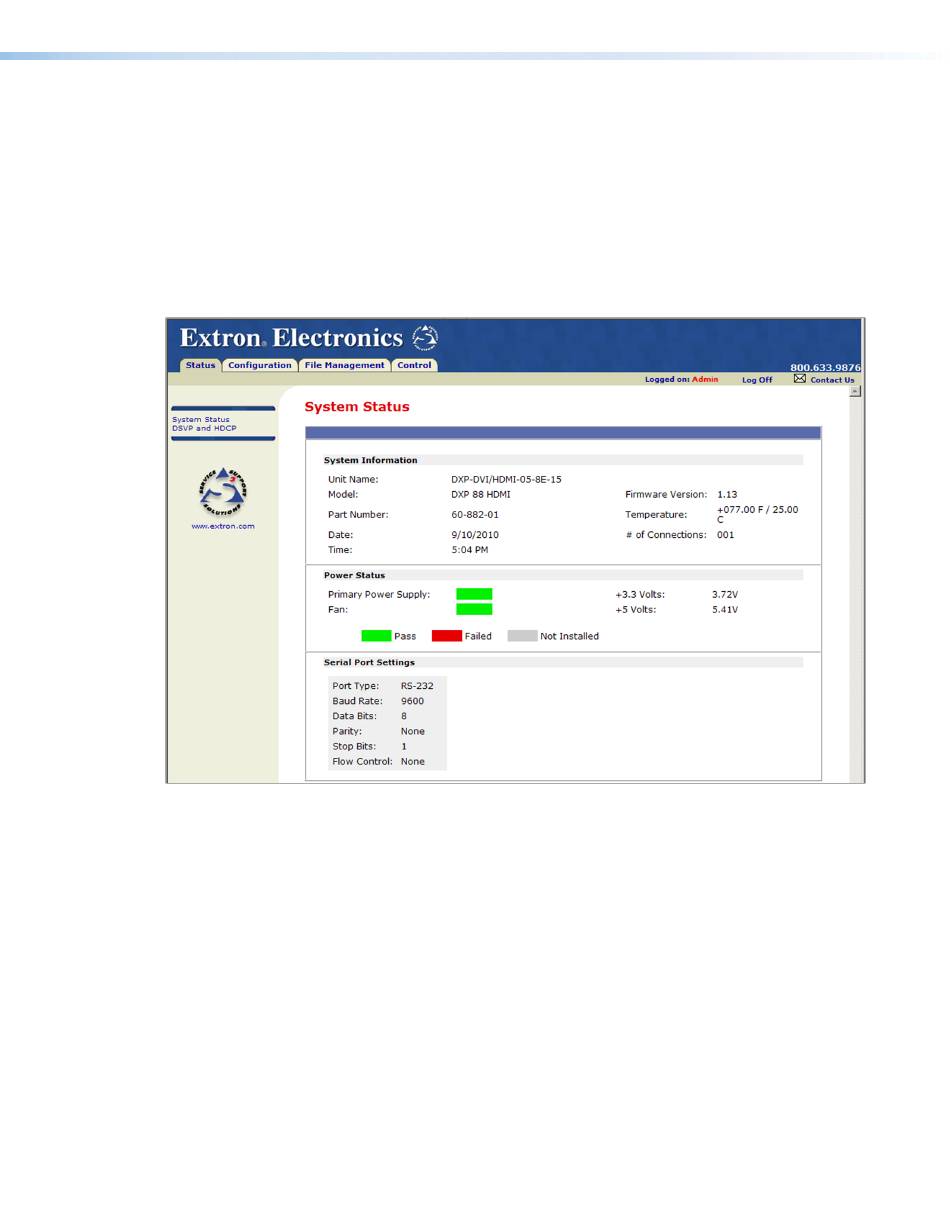

Figure 107. System Status Page
The System Status page updates itself periodically to reflect the latest status of the
switcher components. If a variable changes, the display shows the change in status the next
time it updates.
DXP DVI Pro and DXP HDMI Series • HTML Operation 109
