Output Power Reduction Due To The Input Voltage - ABB REACT 2 Series Product Manual

O
utput power reduction due to the input voltage
REACT2-UNO-3.6-TL
The operating point of REACT2, inside the area of the diagram, depends on the level of
charge of the battery/ies, the PV power available and the setting of the control algorithm.
For input voltages below 90Vdc, the output power of the inverter could be different from zero
should the battery be low.
REACT2-UNO-5.0-TL
The operating point of REACT2, inside the area of the diagram, depends on the level of
charge of the battery/ies, the PV power available and the setting of the control algorithm.
For input voltages below 90Vdc, the output power of the inverter could be different from zero
should the battery be low.

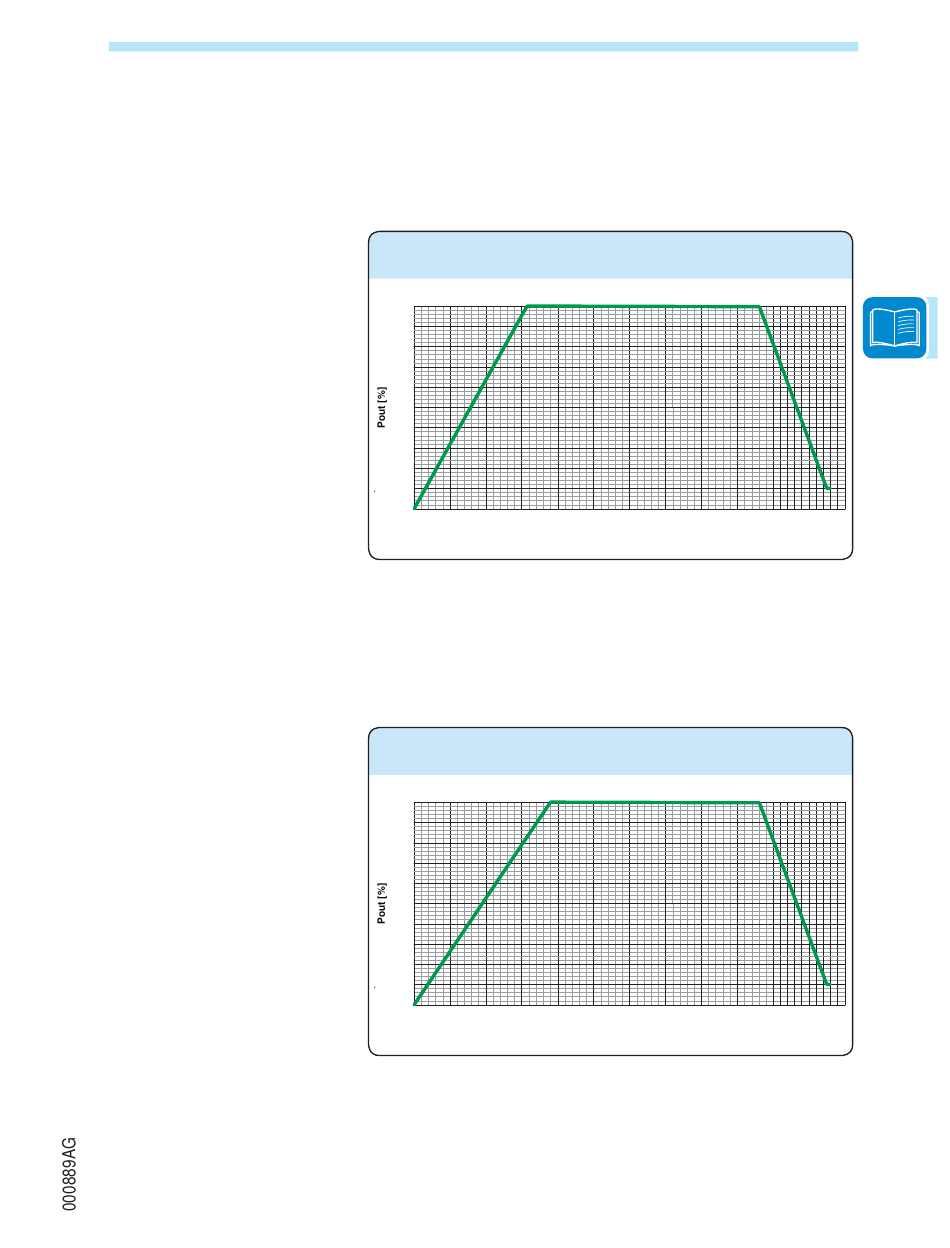

The graphs show the automatic reduction of supplied power when input
voltage values are too high or too low.
100
90
80
70
60
50
40
30
20
10
0
0 50 100 150
100
90
80
70
60
50
40
30
20
10
0
0 50 100 150
- 31 -
2 - Characteristics
Pout Vs. Vin
200 250 300 350 400
Vin [V]
Pout Vs. Vin
200 250 300 350 400
Vin [V]
450 500 550 600
450 500 550 600
