S O L A R I N V E R T E R S

Quick Installation Guide

PVS-100/120-TL (100 to 120 kW, "B version")

Advertisement

Table of Contents
loading

Related Manuals for ABB PVS-100-TL

Summary of Contents for ABB PVS-100-TL

  • Page 1: Quick Installation Guide

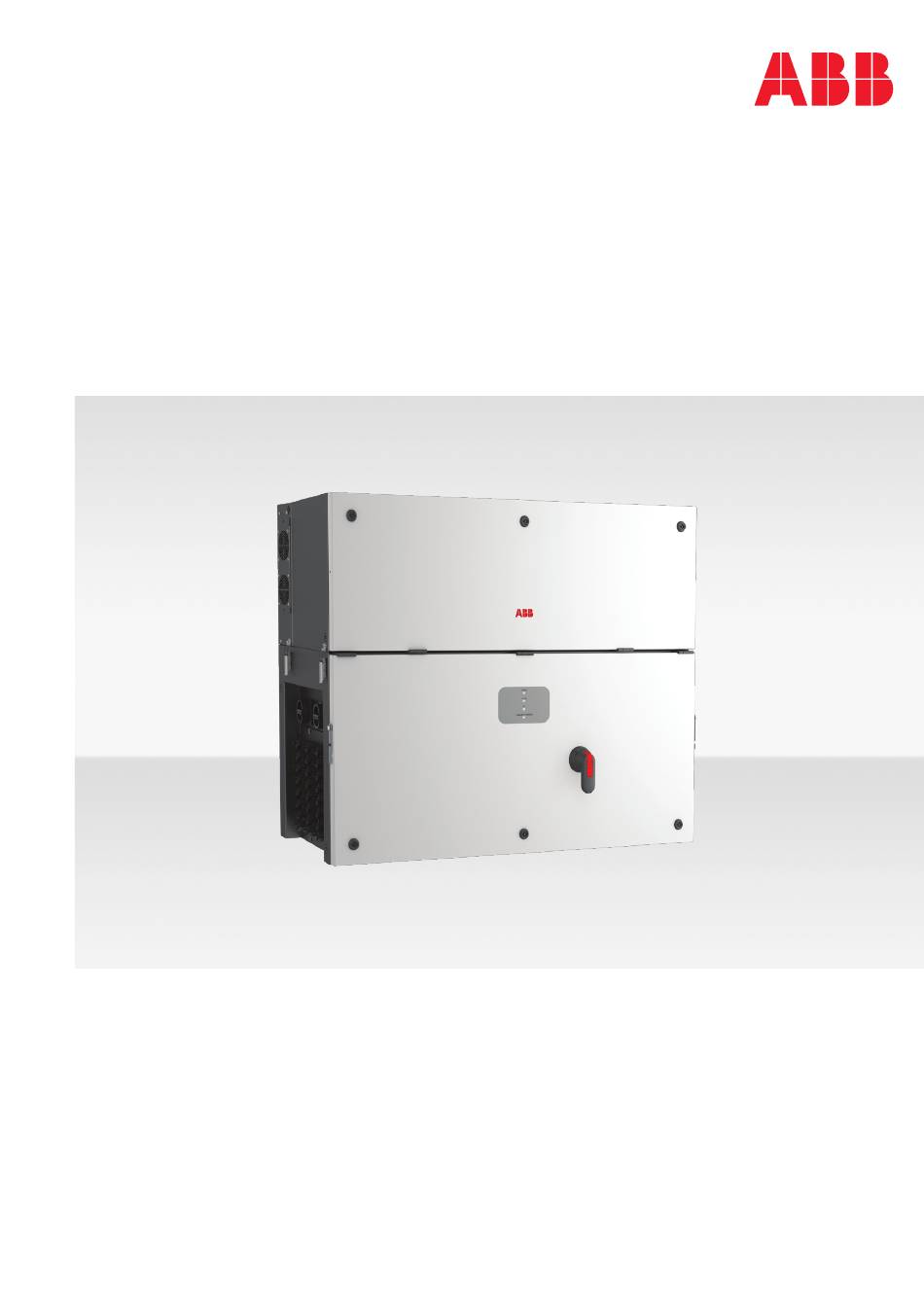

    — S O L A R I N V E R T E R S Quick Installation Guide PVS-100/120-TL (100 to 120 kW, “B version”)
  • Page 2 145 A ac max tion instruction only. Actual product may vary due to product enhancement. Specifications subject to change without notice. The latest version of this document is available on the ABB web- site. 6 minutes M type 7331 (UL R/C, PGJI2)

  • Page 3: Table Of Contents

    — Table of contents 002 – 004 Reference number index Models and range of equipment Labels and symbols 006 – 007 Lifting and transport List of supplied components 008 – 010 Choice of installation location 011 – 016 Mounting Instructions Routing the cable to the inverter Characteristics of the protective grounding cable...

  • Page 4: Reference Number Index

    — Reference number index 01 Power module 19 Positive string fuses plate 41 USB connector 02 Wiring box 20 Negative string fuses plate (-SX2, -SY2 only) 42 SD card slot 03 Mounting bracket 21 AC connection busbar 43 CR2032 coin battery 04 Handles 22 AC overvoltage surge arresters 50 DC interface connectors...
  • Page 5 PVS-100/120-TL “B version” - External sedes view SERVICE O SERVICE ONLY SERVICE ONLY PVS-100/120-TL “B version” - Internal view 3P20 Pb-free MP18 MP18 MP19 MP19 MP20 MP20 MP15 MP15 MP16 MP16 MP17 MP17 MP12 MP12 MP13 MP13 MP14 MP14 MP10 MP10 MP11 MP11...

  • Page 6: Models And Range Of Equipment

    DC) + individual string monitoring (24 ch.) “Power module” Model Number Description PVS-120 PVS-100-TL-POWER MODULE Inverter section / power module with 100kW output power at 400Vac PVS-120-TL-POWER MODULE Inverter section / power module with 120kW output power at 480Vac “Bracket”...

  • Page 7: Labels And Symbols

    50 / 60 Hz sc max Process Cyan C Process Yellow C and apply it on the plant documentation. (ABB recommend to create a plant map and apply the Communication Identification label on it). Mfg. approved 20/12/2018 S.Bindi 145 A...

  • Page 8: Lifting And Transport

    Risk of injury due to the heavy weight of the equipment! ABB usually stores and protects individual components by suitable means to make their transport and subsequent handling easier. Nonetheless, as a rule, it is necessary to turn to the experience of specialised staff to take charge of loading and unloading components.
  • Page 9 Always consider the center of gravity of the enclosures while lifting. Center of gravity (wiring box) Center of gravity (power module) In case of manual lifting it’s suggested to use a support plan (e.g. a table) to place the equipment during the lifi- ting operation, to allow the change of hands position.

  • Page 10: List Of Supplied Components

    In case of opening when the unit is wet, avoid any water infiltration inside the unit, either in WB or PM. • All installations over 6500’ (2,000 meters) must be assessed by ABB Technical Sales to determine the proper datasheet derating.
  • Page 11 50cm Distances • Hardware and software maintenance on device entails opening the front cover. Check that the correct installation safety distances are observed in order to allow (*): minimum free routine check and maintenance operations. space to operate • Provide sufficient working space in front of the inverter that allows to open the front covers and to make the internal connections.
  • Page 12 Installation of multiple units 30 cm 30 cm PVS-120 PVS-120 PVS-120 • When installing multiple units position the inverters side by side paying attention to keep the minimum clearance distances (measured from the outer edge of the inverter) for each inverter specified in the following graph.

  • Page 13: Mounting Instructions

    Staff authorized to carry out the installation must be specialized and experienced in PV plant installation and spe- cifically PV inverters installation. ABB can provide training on the product to provide suitable knowledge for the installation.
  • Page 14 • Use the two M8 screws with flat and spring washers (sup- plied) to fix the pieces of the bracket together. • Position the bracket (03) perfectly level on the support and use it as drilling template. Consider the overall dimensions of the power module and the wiring box.
  • Page 15 • In case of use of “frame fixing brackets” (see side picture as example) it will be possible to fix the bracket to the frame structure without drill any additional holes. • Fix the bracket (03) to the support. Assembly the inverter to the bracket •...
  • Page 16 • Lift the power module (01) up to the bracket and over the wiring box (02), using the handles (04) or another appropri- ate lifting device. Risk of injury due to the heavy weight of the equipment. • Insert the heads of two rear attachment pins (13) (placed on the rear part of the power module) into the slots on the bracket.
  • Page 17 Opening the cover • Using the key tool provided with the component kit content in the wiring box package, open the three cover quarter cam locks (05) following the proper ways as shown in the related silkscreens on the cover. •...
  • Page 18 Interface connectors connection Last operation before proceed with the wiring and connections of AC and DC sources is to connect the interface connectors that allow the power and the communication connection between the power module (01) and the wiring box (02): Connection of the AC interface cables: •...

  • Page 19: Routing The Cable To The Inverter

    — Routing the cable to the inverter PVS-175 The cable routing have to be done in order to avoid water dripping to the AC panel cable glands (11), DC input quick fit connectors (16) or to service ca- ble glands (12). 20-30 cm 20-30 cm Min.

  • Page 20: Characteristics Of The Protective Grounding Cable

    1.2 A ABB declares that the ABB transformerless inverters, in terms of their construction, do not inject continuous earth fault currents and therefore there is no requirement that the differential protection installed downstream of the inverter be type B in accordance with IEC 60755 / A 2.

  • Page 21: Grid Output Connection (Ac Side)

    — Grid output connection (AC side) The inverter must be connected to a three-phase system with the center of the star connected to earth. To connect the inverter to the grid is possible to choose between the four-wire connection (3 phases + neutral) and the three-wire connection (3 phases). In any case, the inverter’s earth connection is mandatory.
  • Page 22 • Depending on the earth connection method (internal (25) or external (10)) follow the procedures described below: INTERNAL EARTH CONNECTION: • Pass the protective earth cable trought the proper cable gland on the AC panel. • Fix the protective earth cable lug to the protection earth connec- tion point (int.) (25) using the washers and bolt pre-installed on the M10 stud, as shown in the following diagram: 1 = cable lug...
  • Page 23 MC4 and Amphenol H4) located on the left side of the wiring box (02). Refer to the document “String inverter – Product Manual appendix” available at www.abb.com/solarinverters to know the brand and the model of the quick fit connector. Depending on the model of the connector of the own in-...
  • Page 24 • The string fuses are installed inside special safety positioners that allow easy installation/removal, as well as providing protection from involuntary contact while the inverter is being installed. Each fuses are associated with a green LED that could be used to check the correct polarity of the strings.

  • Page 25: Connection Of The Communication And Control Signals

    SD card slot CR2032 Coin battery (*) The RS-485 connector (RJ45) (ABB Service only) (36) and the signal R1 on the Remote ON/OFF terminal block (37) are used to bring the signals on the external connector RS-485&Rem.ON/OFF (57). Connections to the communication and control board...
  • Page 26 Internet connection is required to use all the Aurora Vision remote functionalities. Please refer to Aurora Vision documents available on ABB website for further information how to get an Aurora Vi- sion account for remotely monitoring and managing the installed solar assets.
  • Page 27 Remote control connection The connection and disconnection of the inverter to and from the grid can be con- trolled through an external control. The function must be enabled via web server user interface. If the remote control function is disabled, the switching on of the inverter is dictated by the presence of the normal parameters that allow the inverter to connect to the grid.

  • Page 28: Description Of Led Panel

    ALARM Indicates that the inverter has detected an anomaly. This type of problem is highlighted in the Web User Interface and ABB Installer for Solar Inverters APP. PVS-175 The “GFI” (ground fault) LED indicates that the inverter has detected a ground fault in the DC side photovoltaic generator.
  • Page 29 Pre-commissioning phase (first start-up of inverter) The commissioning of the inverter must be completed through the Installation wizard steps (Web User Interface) or using the ABB Installer for Solar Inverters mobile APP Initial configuration failure The inverter is in locked state due to a failure in the initial configuration of the equipment, such as the standard...

  • Page 30: Commissioning

    Commissioning via ABB Installer for Solar Inverters mobile APP ABB Installer for Solar Inverters APP is available for Android mobile devices with an Android version of 6.0.1 or greater (for iOS mo- bile devices will be implemented soon) and could be downloaded and installed from Play Store.
  • Page 31 To address any problems that may occur during the initial stages of operation of the system and to ensure the inverter remains fully functional, you are advised to check for any firmware updates in the download area of the website www.abb.com/solarinver- ters or at https://registration.abbsolarinverters.com (instructions for registering on the website and updating the firmware are...

  • Page 32: Characteristics And Technical Data

    4 LEDs, Web User Interface, Mobile APP Communication protocol Modbus RTU/TCP (Sunspec compliant) Commissioning tool Web User Interface, Mobile APP/APP for plant level Remote monitoring services Aurora Vision® monitoring portal Advanced features Embedded logging, direct telemetry data transferring to ABB cloud...
  • Page 33 (Supports M63 Ø 37…53mm + M25 Ø 10...17mm) 1. Maximum number of opening 5 under overloading 2. Please refer to the document “String inverters – Product manual appendix” available at www.abb.com/solarinverters for informa- tion on the quick-fit connector brand and model used in the inverter 3.
  • Page 35 — For further information For more information on ABB solar products and services, visit www.abb.com/solarinverters...
  • Page 36 — Contact us www.abb.com/solarinverters PVS-100_120-TL-B version-Quick Installation Guide EN-RevB EFFECTIVE 25-01-2019 © Copyright 2019 ABB. All Rights Reserved. Specifications subject to change without notice.
