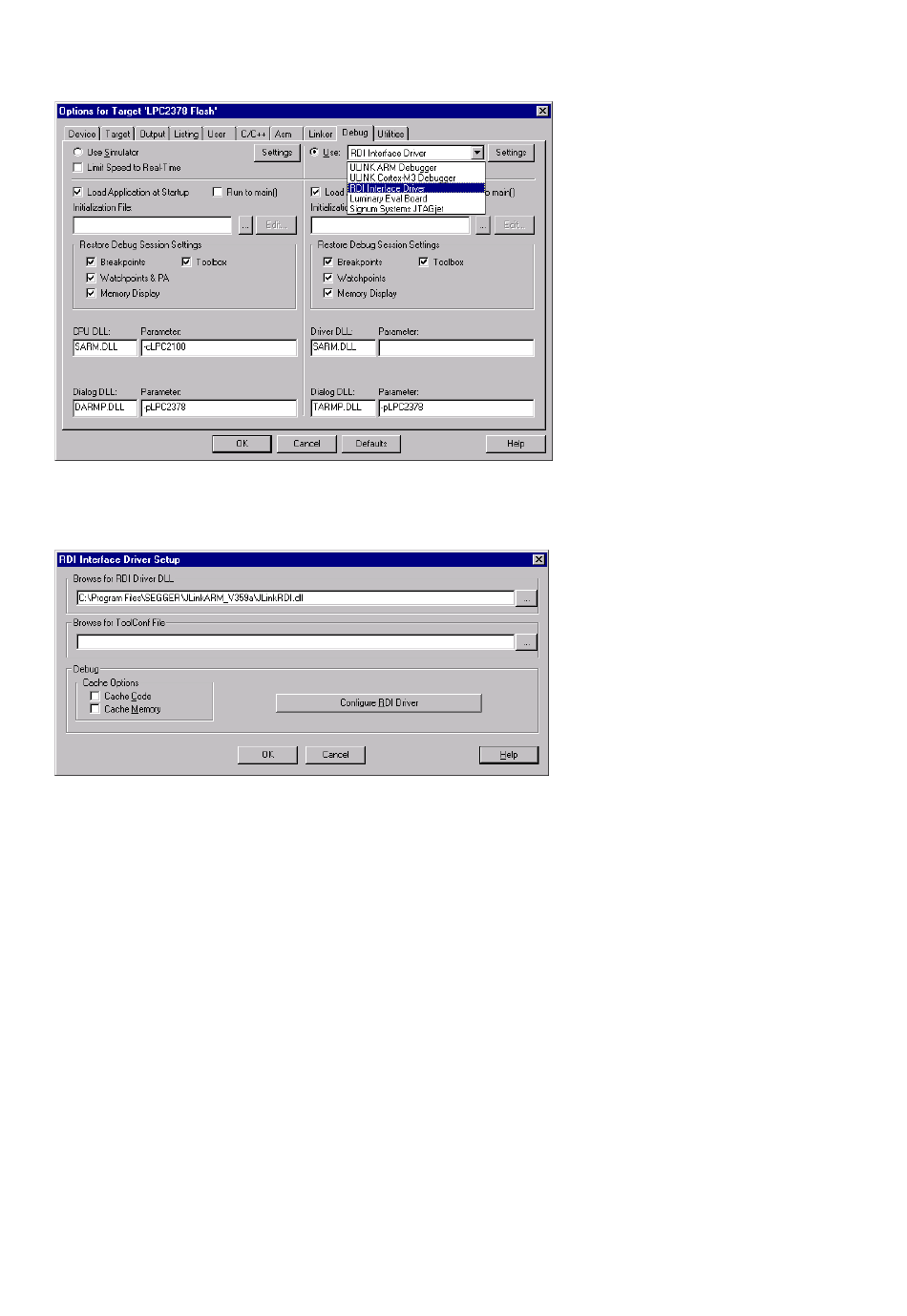

Select Project | Options for Target '<NameOfTarget>' to open the project options

dialog and select the Debug tab.

Choose RDI Interface Driver from the list as shown above and click the Settings

button. Select the location of JLinkRDI.dll in Browse for RDI Driver DLL field.

and click the Configure RDI Driver button.

The J-Link RDI Configuration dialog will be opened.For more information about the

generic setup of J-Link RDI, please refer to Configuration on page 344.

J-Link / J-Trace (UM08001)
