Segger J-Link User Manual page 308

308
the option to try to auto-detect the connected flash device. The latter option will
prompt J-Flash SPI to try to identify the flash by its Flash ID, looking up in an
internal list of known flash devices.

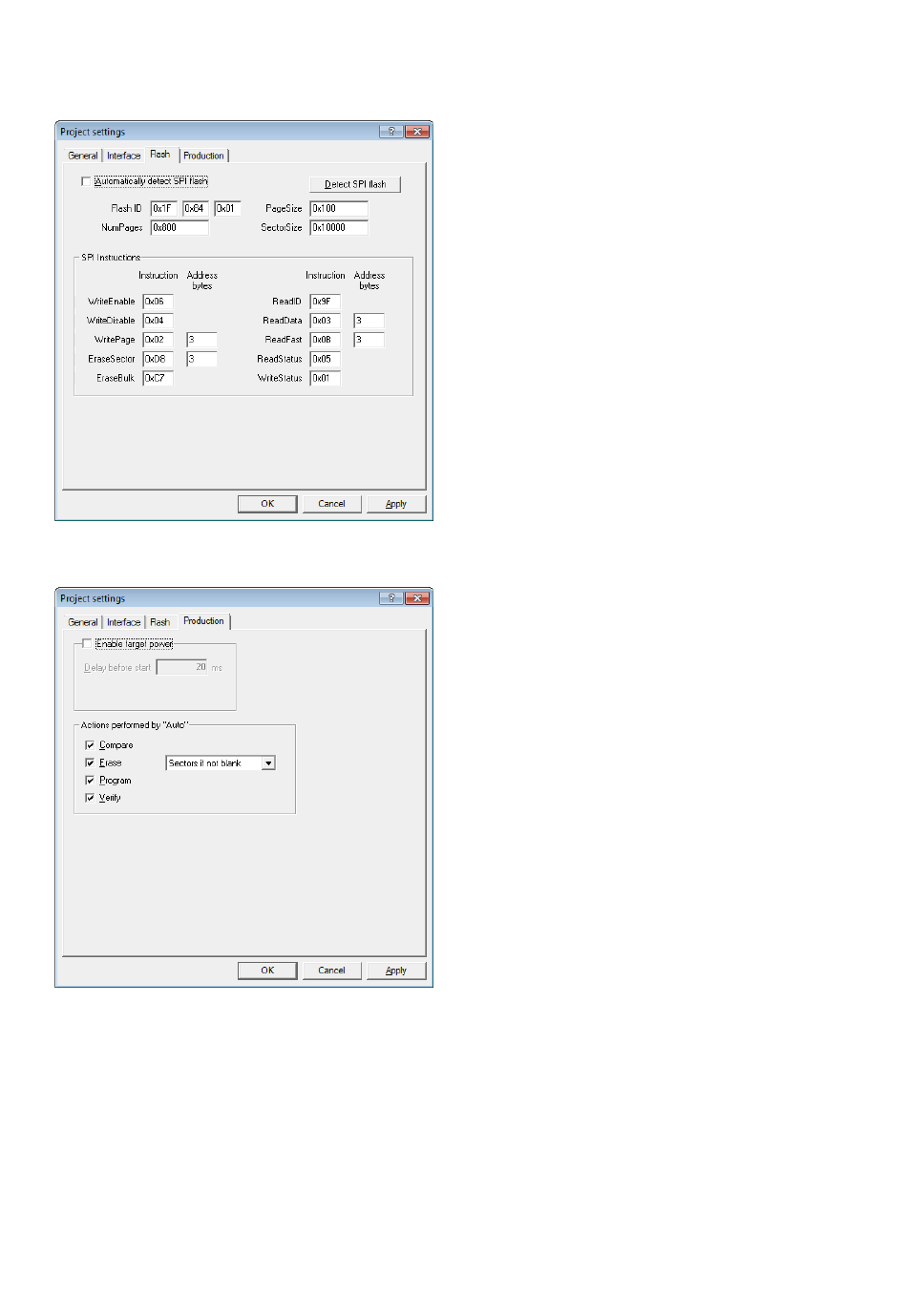

11.4.1.4 Production Settings
Enable target power
Enables 5V target power supply via pin 19 of the emulator. Can be used for targets
which can be powered through the emulator for production. Delay before start
defines the delay (in ms) after enabling the target power supply and before starting
to communicate with the target.
Actions performed by "Auto"
The checked options will be perforemed when auto programming a target (Target ->
Auto, shortcut: F7) . The default behaviour is Compare, Erase sectors if not blank,
Program and Verify. Find below a table which describes the commands:
J-Link / J-Trace (UM08001)
CHAPTER 11
© 2004-2017 SEGGER Microcontroller GmbH & Co. KG
J-Flash SPI
