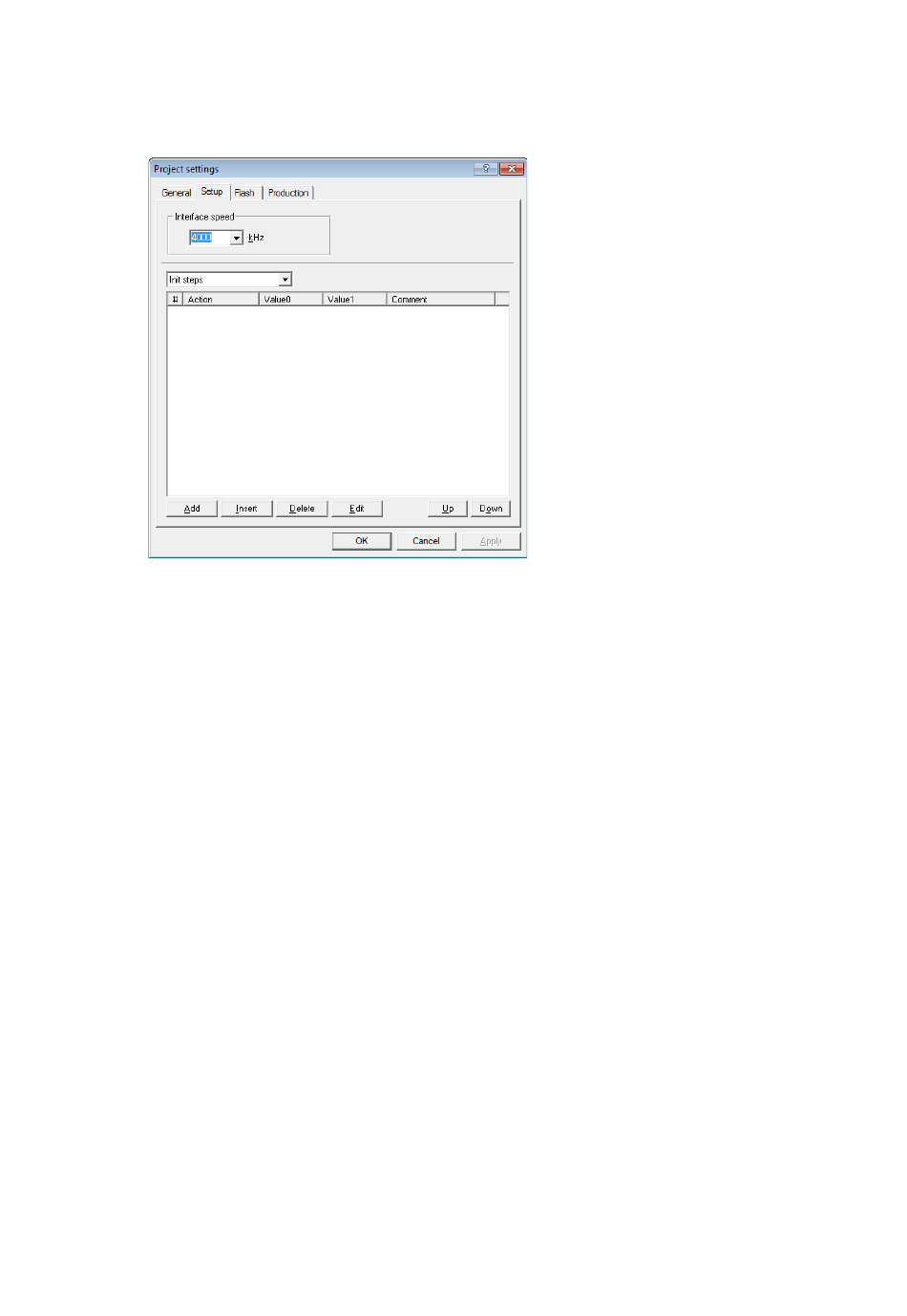

11.4.1.2 Setup

This dialog is used to configure the SPI interface settings like SPI communication

speed and allows to add Init steps and Exit steps which can be used to execute cus-

tom command sequences.

11.4.1.2.1 Interface Speed

Specifies the SPI communication speed J-Link uses to communicate with the SPI

11.4.1.2.2 Init and Exit steps

Can be uesed to add custom command sequences like for example write protection

Sequences on page 316.

11.4.1.3 Flash Settings

This dialog is used to select and configure the parameters of the SPI flash that J-

Flash SPI will connect to. Examples for flash parameters are: Sector size (Smallest

erasable unit), page size (smallest programmable unit), Flash ID, etc. There is also

J-Link / J-Trace (UM08001)
