As can be seen in the following drawings, by moving the sampling point of the TDx
Δ
signal, a setup time for the trace data is generated ( t ). This can be used to enable
d
tracing on targets that do not provide a setup time for the trace data.
TCLK
TDx
a)

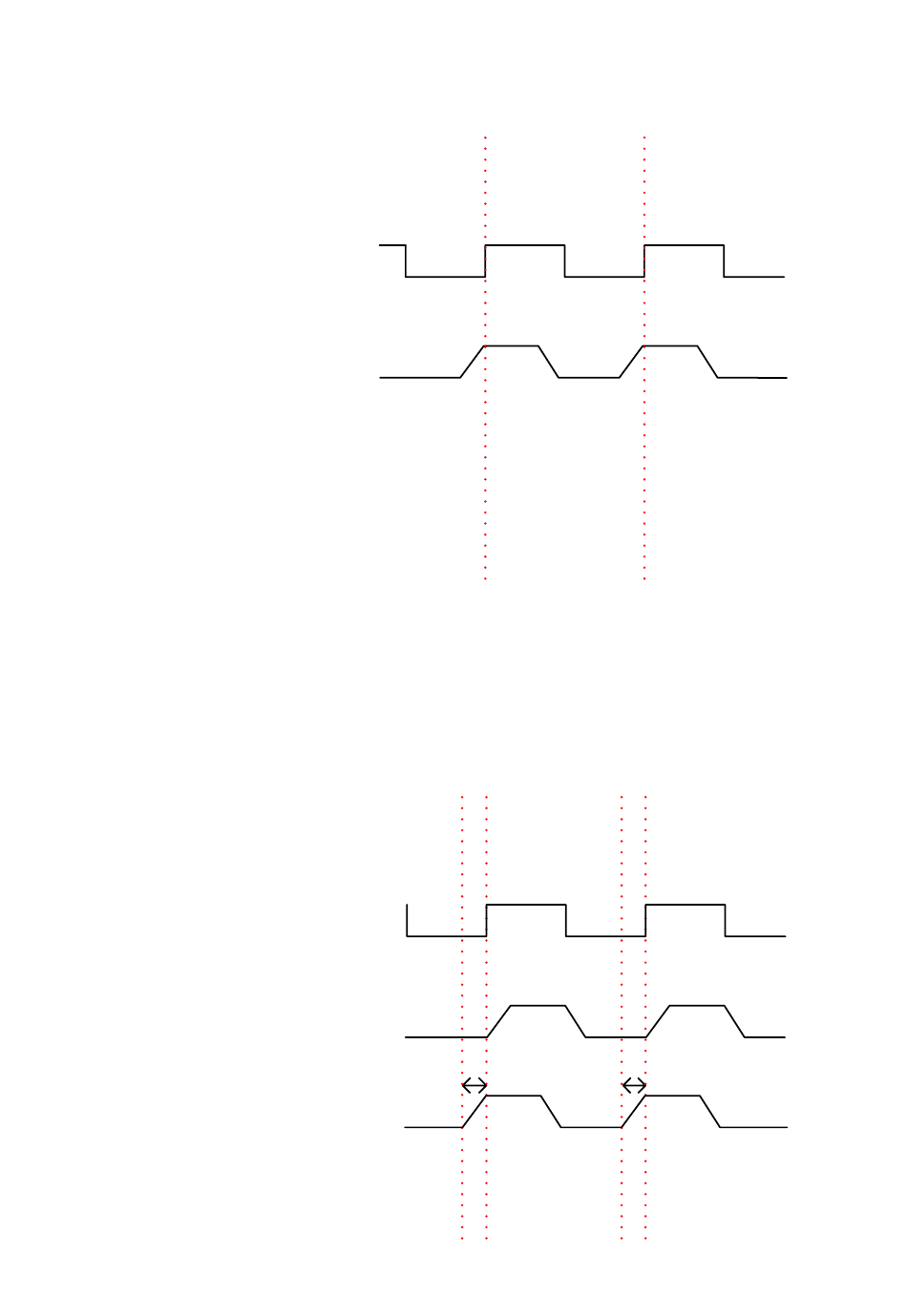

Drawing a) shows the correct behaviour of a target and b) shows a target that does
not apply setup times. Therefore in b) the undelayed signal TDx would be sampled as
a logical 0 at the rising edge of TCLK which would give the J-Trace wrong tracing
information. In the case where the sample point of TDx is moved to the left (nega-
Δ
tive) by t at each rising TCLK edge a logical 1 is sampled which in this case means
d
that the J-Trace now recieves the correct trace information.
TCLK
TDx
Δt Δt
d d
TDx + Δt
d
b)
