3. How to Install
Mark the mounting holes carefully using the mounting template on the wall, and drill the holes as
indicated. Ensure proper distance to the floor and the ceiling for cooling. A minimum of 8.9 in [225
mm] below the adjustable frequency drive is needed. Mount the bolts at the bottom and lift the
adjustable frequency drive up on the bolts. Tilt the adjustable frequency drive against the wall
and mount the upper bolts. Tighten all four bolts to secure the adjustable frequency drive against
the wall.
3

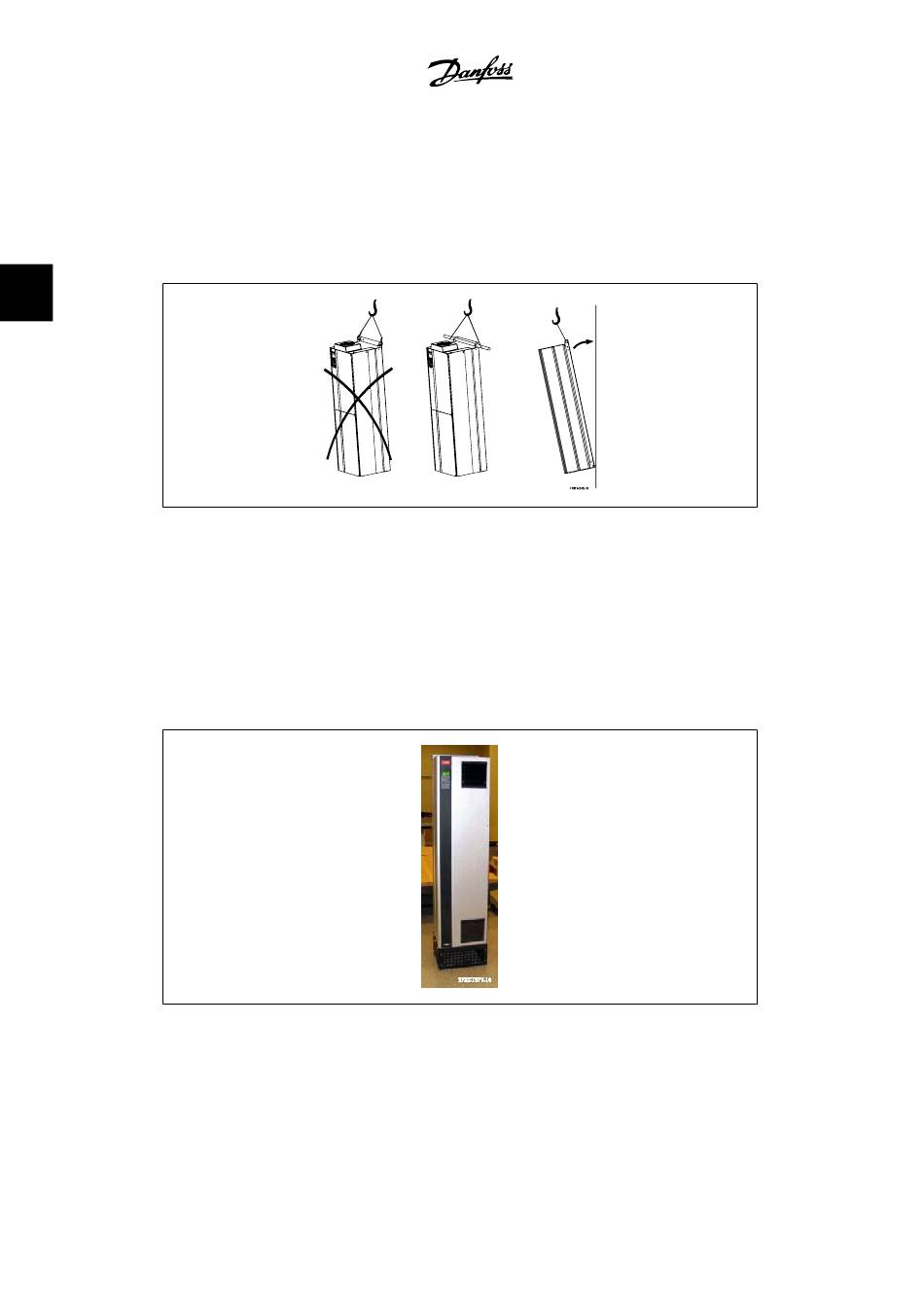

3.21: Lifting method for mounting drive on wall
3.4.5. Floor Mounting - Pedestal Installation IP 21 (NEMA1) and IP
54 (NEMA12)
IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosed adjustable frequency drives can also be
installed on a pedestal.
D1 and D2 enclosures
Ordering No. 176F1827
Please see the Pedestal Kit Instruction Manual, 175R5642, for further information.
3.22: Drive on pedestal
30
®
MG.20.P1.22 - VLT
is a registered Danfoss trademark.
VLT AQUA High Power Instruction Manual
