3. How to Install
3

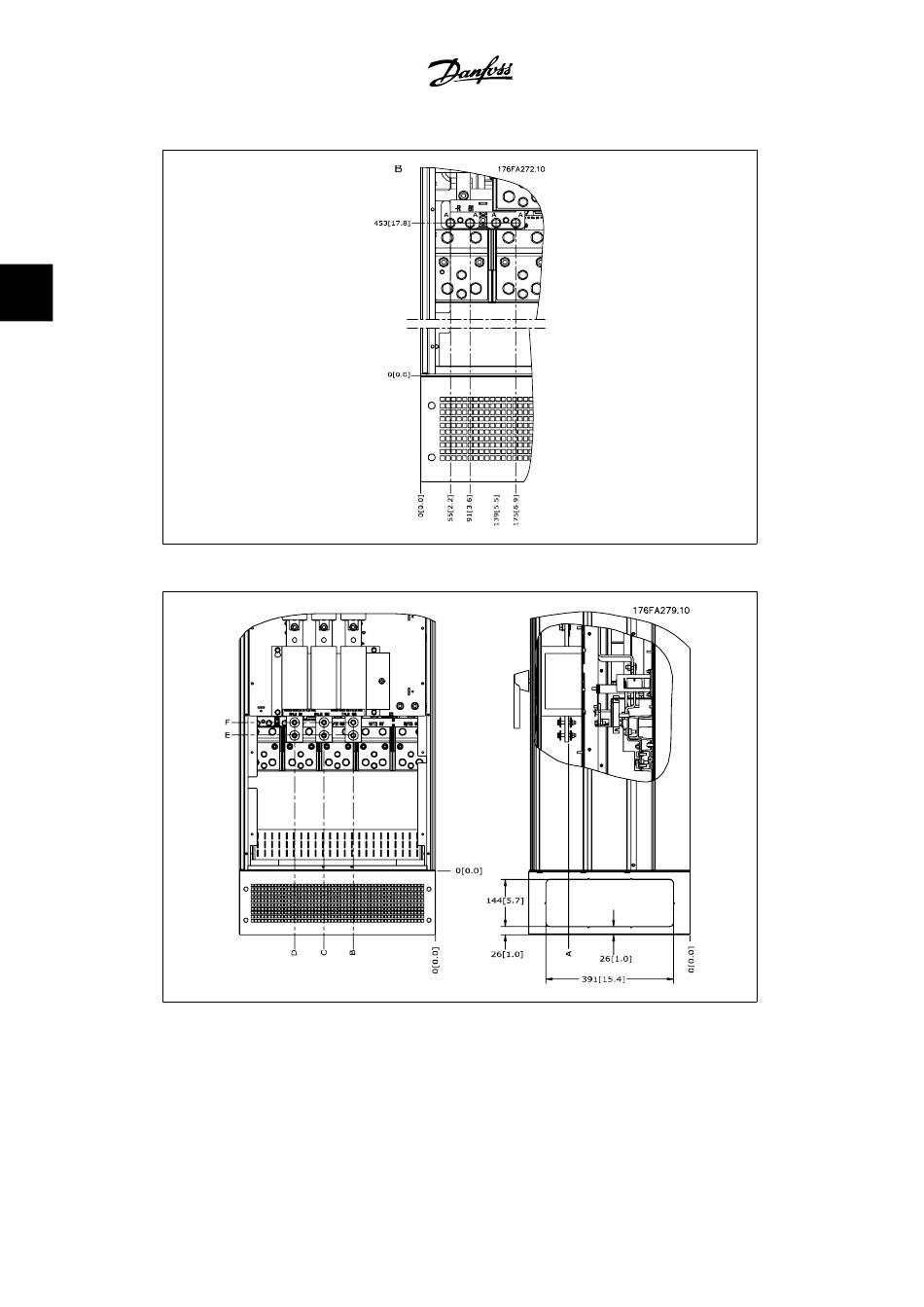

3.11: IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosure power connection positions (detail B)
3.12: IP 21 (NEMA type 1) and IP 54 (NEMA type 12) enclosure power connection position of disconnect
switch
Terminal locations - E2 enclosures
Give thought to the following terminal positions when designing the cable access.
24
®
MG.20.P1.22 - VLT
is a registered Danfoss trademark.
VLT AQUA High Power Instruction Manual
