VLT AQUA High Power Instruction Manual

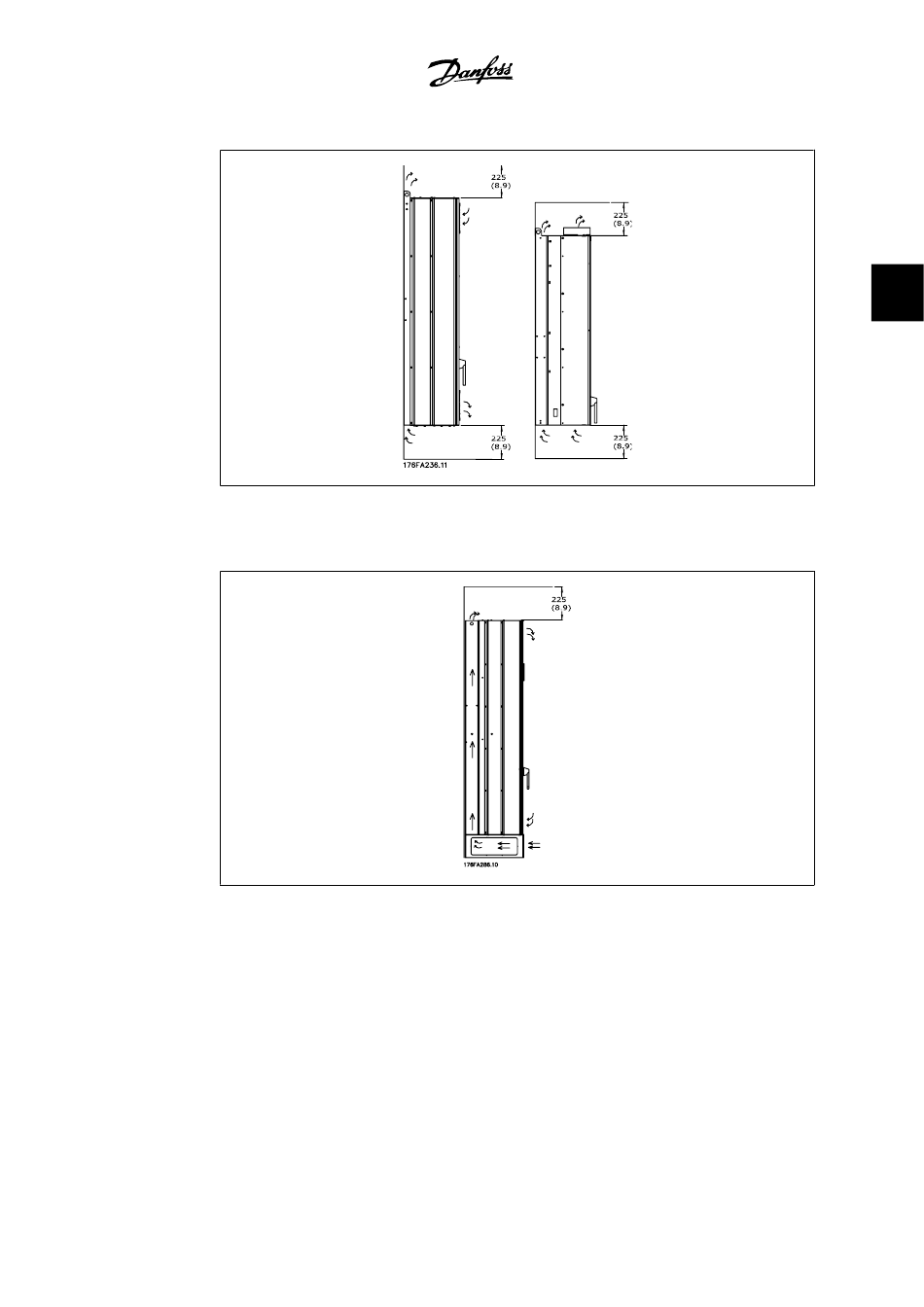

3.6: Airflow direction and necessary space for cooling
Left: Enclosure IP 21/IP 54, D1 and D2.
Right: Enclosure IP 00, D3, D4 and E2.
3.7: Airflow direction and necessary space for cooling - Enclosure IP 21/IP 54, E1
Wire access
Ensure that proper cable access is present including the necessary bending allowance. Since the
IP 00 enclosure is open, the bottom cables must be attached to the back panel of the enclosure
where the adjustable frequency drive is mounted, i.e., by using cable clamps.
Terminal locations
(D1 and D2 enclosures)
Take the following terminal positions into consideration when you design for cable access.
®
MG.20.P1.22 - VLT is a registered Danfoss trademark.
3. How to Install
3
21
