3. How to Install
3

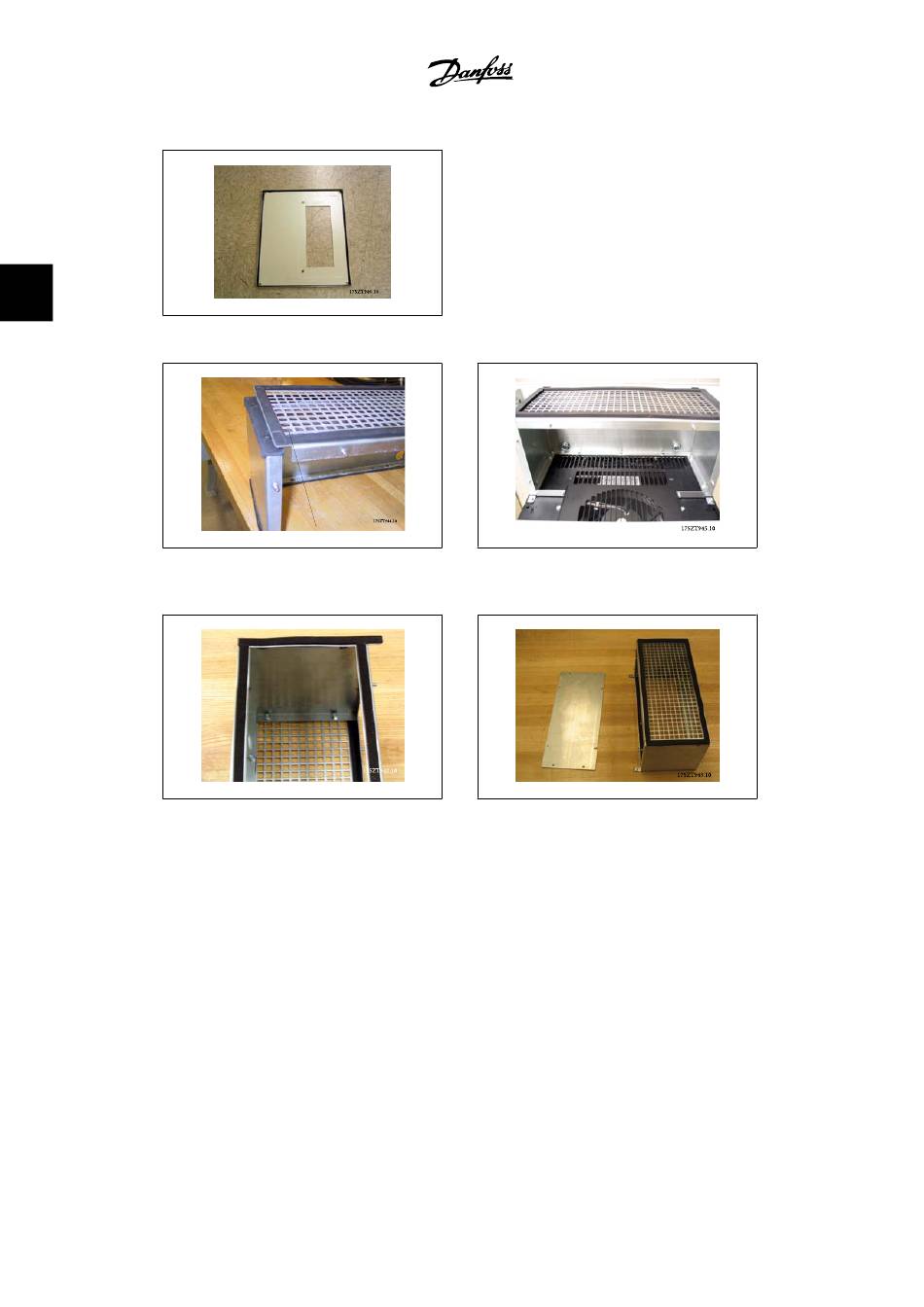

3.40: Rittal enclosure top with cut-out
3.41: The gasket folds over the edge to form a
seal between the duct and the top vented cover.
3.43: The gasket applied to both sides of the ad-
justable frequency drive bracket and duct vented-
top cover.
38
The standard Rittal enclosure top is cut. The gas-
ket is not used on the cut-out. The gasket is part
of the duct work.
3.42: Top duct installed
3.44: Top duct ready to be installed on the ad-
justable frequency drive
®
