1. Introduction

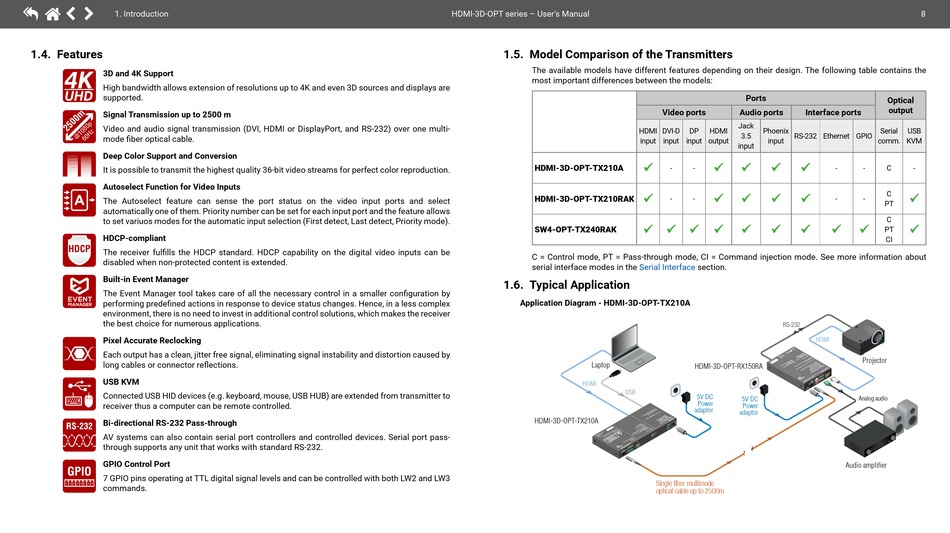

1.4. Features
3D and 4K Support
High bandwidth allows extension of resolutions up to 4K and even 3D sources and displays are
supported.
Signal Transmission up to 2500 m
Video and audio signal transmission (DVI, HDMI or DisplayPort, and RS-232) over one multi-
mode fiber optical cable.
Deep Color Support and Conversion
It is possible to transmit the highest quality 36-bit video streams for perfect color reproduction.
Autoselect Function for Video Inputs
The Autoselect feature can sense the port status on the video input ports and select
automatically one of them. Priority number can be set for each input port and the feature allows
to set variuos modes for the automatic input selection (First detect, Last detect, Priority mode).
HDCP-compliant
The receiver fulfills the HDCP standard. HDCP capability on the digital video inputs can be
disabled when non-protected content is extended.
Built-in Event Manager
The Event Manager tool takes care of all the necessary control in a smaller configuration by
performing predefined actions in response to device status changes. Hence, in a less complex
environment, there is no need to invest in additional control solutions, which makes the receiver
the best choice for numerous applications.
Pixel Accurate Reclocking
Each output has a clean, jitter free signal, eliminating signal instability and distortion caused by
long cables or connector reflections.
USB KVM
Connected USB HID devices (e.g. keyboard, mouse, USB HUB) are extended from transmitter to
receiver thus a computer can be remote controlled.
Bi-directional RS-232 Pass-through
RS-232
AV systems can also contain serial port controllers and controlled devices. Serial port pass-
through supports any unit that works with standard RS-232.
GPIO Control Port
7 GPIO pins operating at TTL digital signal levels and can be controlled with both LW2 and LW3
commands.
HDMI-3D-OPT series – User's Manual
1.5. Model Comparison of the Transmitters
The available models have different features depending on their design. The following table contains the
most important differences between the models:
HDMI-3D-OPT-TX210A
HDMI-3D-OPT-TX210RAK
SW4-OPT-TX240RAK
C = Control mode, PT = Pass-through mode, CI = Command injection mode. See more information about
serial interface modes in the
1.6. Typical Application
Application Diagram - HDMI-3D-OPT-TX210A
Laptop
HDMI
USB
HDMI-3D-OPT-TX210A
AU DIO
6
MM TU RE
R AP SC ER
SE TP UT
LA OU
Ports
Video ports Audio ports Interface ports
Jack
HDMI DVI-D DP HDMI Phoenix
3.5 RS-232 Ethernet GPIO
input input input output input
input
    
- -
    
- -
      
Serial Interface section.
RS-232
HDMI-3D-OPT-RX150RA
5V DC
5V DC
Power
Power
adaptor
adaptor
mm
: 2.1
PIN
-23 2
RS
V 1A DC
12
RX
TX
TIV E
E AC K
LIV LAS ER LIN
FIB ER 2
RS -23
2 IN OU T
MI
HD
Single fiber multimode
optical cable up to 2500m
8
Optical
output
Serial USB
comm. KVM
- - C -
C

- -
PT
C
  
PT
CI
HDMI
Projector
Analog audio
Audio amplifier
