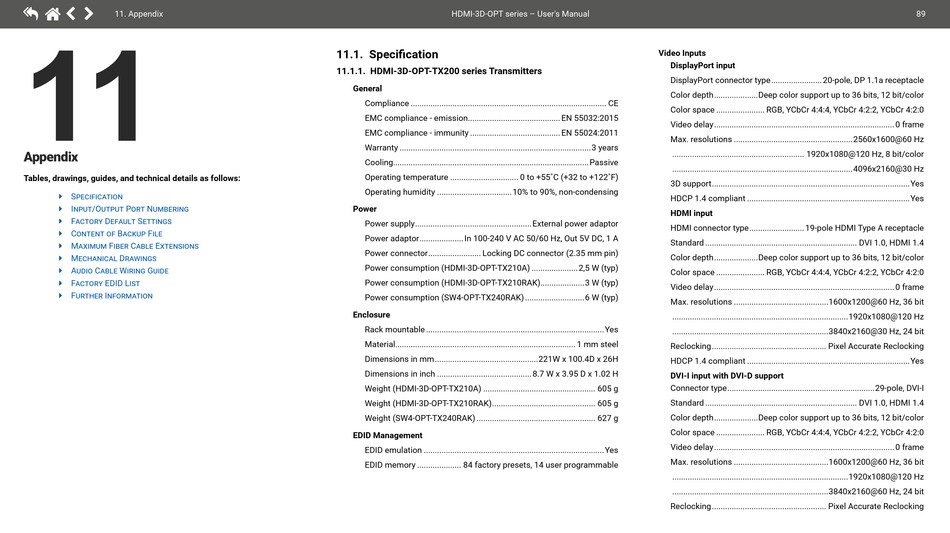

11. Appendix

11
Appendix
Tables, drawings, guides, and technical details as follows:

Specification

Î
Input/Output Port Numbering
Î
Factory Default Settings
Î
Content of Backup File
Î
Maximum Fiber Cable Extensions
Î
Mechanical Drawings
Î
Audio Cable Wiring Guide
Î
Factory EDID List
Î
Further Information
Î
HDMI-3D-OPT series – User's Manual
11.1. Specification
11.1.1. HDMI-3D-OPT-TX200 series Transmitters
General
Compliance ......................................................................................... CE
EMC compliance - emission .......................................... EN 55032:2015
EMC compliance - immunity ......................................... EN 55024:2011
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating temperature ............................... 0 to +55˚C (+32 to +122˚F)
Operating humidity ..................................10% to 90%, non-condensing
Power
Power supply .....................................................External power adaptor
Power adaptor .................... In 100-240 V AC 50/60 Hz, Out 5V DC, 1 A
Power connector ........................ Locking DC connector (2.35 mm pin)
Power consumption (HDMI-3D-OPT-TX210A) .....................2,5 W (typ)
Power consumption (HDMI-3D-OPT-TX210RAK) ....................3 W (typ)
Power consumption (SW4-OPT-TX240RAK) ...........................6 W (typ)
Enclosure
Rack mountable .................................................................................Yes
Material .................................................................................. 1 mm steel
Dimensions in mm ...............................................221W x 100.4D x 26H
Dimensions in inch ........................................... 8.7 W x 3.95 D x 1.02 H
Weight (HDMI-3D-OPT-TX210A) ................................................... 605 g
Weight (HDMI-3D-OPT-TX210RAK) ............................................... 605 g
Weight (SW4-OPT-TX240RAK) ...................................................... 627 g
EDID Management
EDID emulation ..................................................................................Yes
EDID memory .................... 84 factory presets, 14 user programmable
Video Inputs
DisplayPort input
DisplayPort connector type ....................... 20-pole, DP 1.1a receptacle
Color depth ....................Deep color support up to 36 bits, 12 bit/color
Color space ...................... RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Video delay .................................................................................. 0 frame
Max. resolutions ......................................................2560x1600@60 Hz
............................................................ 1920x1080@120 Hz, 8 bit/color
..................................................................................4096x2160@30 Hz
3D support ..........................................................................................Yes
HDCP 1.4 compliant ..........................................................................Yes
HDMI input
HDMI connector type ......................... 19-pole HDMI Type A receptacle
Standard ..................................................................... DVI 1.0, HDMI 1.4
Color depth ....................Deep color support up to 36 bits, 12 bit/color
Color space ...................... RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Video delay .................................................................................. 0 frame
Max. resolutions ...........................................1600x1200@60 Hz, 36 bit
................................................................................1920x1080@120 Hz
.......................................................................3840x2160@30 Hz, 24 bit
Reclocking .................................................... Pixel Accurate Reclocking
HDCP 1.4 compliant ..........................................................................Yes
DVI-I input with DVI-D support
Connector type ...................................................................29-pole, DVI-I
Standard ..................................................................... DVI 1.0, HDMI 1.4
Color depth ....................Deep color support up to 36 bits, 12 bit/color
Color space ...................... RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Video delay .................................................................................. 0 frame
Max. resolutions ...........................................1600x1200@60 Hz, 36 bit
................................................................................1920x1080@120 Hz
.......................................................................3840x2160@60 Hz, 24 bit
Reclocking .................................................... Pixel Accurate Reclocking
