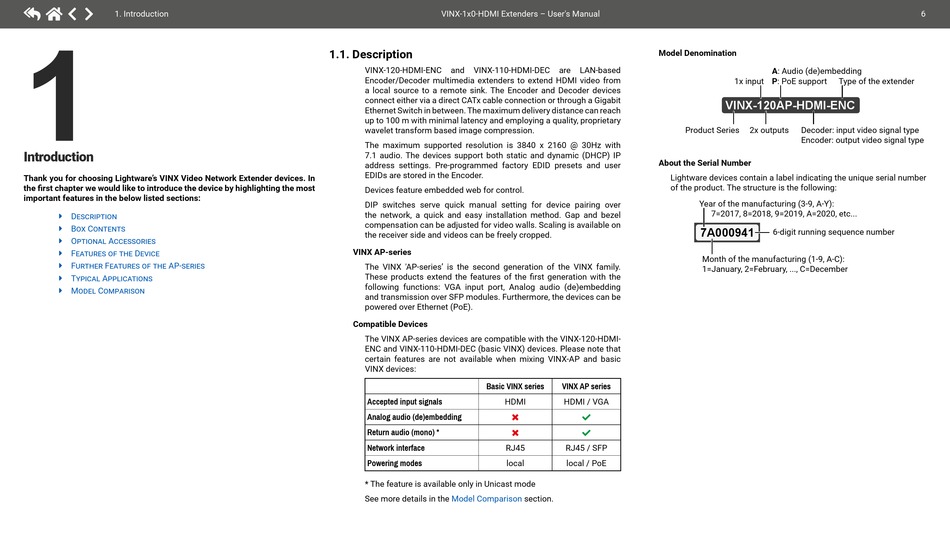

1. Introduction

1
I ntroduction
Ahank you for choosing Lightware's VINX Video Network Extender devices. In
the first chapter we would like to introduce the device by highlighting the most
important features in the below listed sections:
ç Description
ç Box Contents
ç Optional Accessories
ç Features of the Device
ç Further Features of the AP-series
ç Typical Applications
ç Model Comparison
VINX-1x0-HDMI Extenders – User's Manual

1.1. Description

VINX-120-HDMI-ENC and VINX-110-HDMI-DEC
Encoder/Decoder multimedia extenders to extend HDMI video from
a local source to a remote sink. The Encoder and Decoder devices
connect either via a direct CATx cable connection or through a Gigabit
Ethernet Switch in between. The maximum delivery distance can reach
up to 100 m with minimal latency and employing a quality, proprietary
wavelet transform based image compression.
The maximum supported resolution is 3840 x 2160 @ 30Hz with
7.1 audio. The devices support both static and dynamic (DHCP) IP
address settings. Pre-programmed factory EDID presets and user
EDIDs are stored in the Encoder.
Devices feature embedded web for control.
DIP switches serve quick manual setting for device pairing over
the network, a quick and easy installation method. Gap and bezel
compensation can be adjusted for video walls. Scaling is available on
the receiver side and videos can be freely cropped.
VINX AP-series
The VINX 'AP-series' is the second generation of the VINX family.
These products extend the features of the first generation with the
following functions: VGA input port, Analog audio (de)embedding
and transmission over SFP modules. Furthermore, the devices can be
powered over Ethernet (PoE).
Compatible Devices
The VINX AP-series devices are compatible with the VINX-120-HDMI-
ENC and VINX-110-HDMI-DEC (basic VINX) devices. Please note that
certain features are not available when mixing VINX-AP and basic
VINX devices:
Basic VINX series
HDMI
Accepted input signals
Analog audio (de)embedding
Return audio (mono) *
Network interface RJ45
local
Powering modes
* The feature is available only in Unicast mode
See more details in the Model Comparison
Model Denomination
are LAN-based
Product Series
About the Serial Number
Lightware devices contain a label indicating the unique serial number
of the product. The structure is the following:
VINX AP series
HDMI / VGA
 
 
RJ45 / SFP
local / PoE
section.
A: Audio (de)embedding
1x input P: PoE support Type of the extender
VINX-120AP-HDMI-ENC
2x outputs Decoder: input video signal type
Encoder: output video signal type
Year of the manufacturing (3-9, A-Y):
7=2017, 8=2018, 9=2019, A=2020, etc...
7A000941
6-digit running sequence number
Month of the manufacturing (1-9, A-C):
1=January, 2=February, ..., C=December
6
