2. Installation

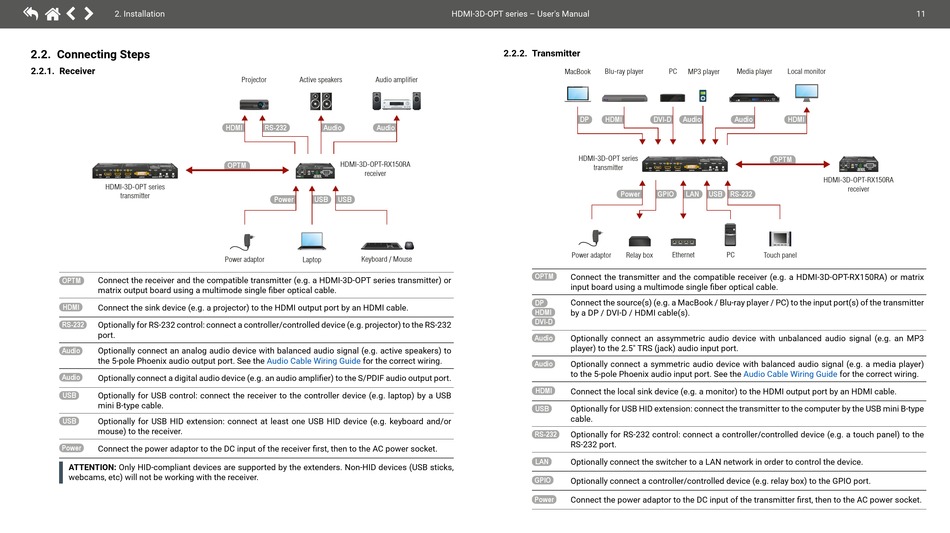

2.2. Connecting Steps
2.2.1. Receiver
: :
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect AUDIO2
USB AUDIO
VIDEO RST AUDIO SHOW
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
HDMI-3D-OPT series

transmitter

OPTM Connect the receiver and the compatible transmitter (e.g. a HDMI-3D-OPT series transmitter) or
matrix output board using a multimode single fiber optical cable.
HDMI Connect the sink device (e.g. a projector) to the HDMI output port by an HDMI cable.
RS-232 Optionally for RS-232 control: connect a controller/controlled device (e.g. projector) to the RS-232
port.
Optionally connect an analog audio device with balanced audio signal (e.g. active speakers) to
Audio
the 5-pole Phoenix audio output port. See the
Audio
Optionally connect a digital audio device (e.g. an audio amplifier) to the S/PDIF audio output port.
USB Optionally for USB control: connect the receiver to the controller device (e.g. laptop) by a USB
mini B-type cable.
USB Optionally for USB HID extension: connect at least one USB HID device (e.g. keyboard and/or
mouse) to the receiver.
Power Connect the power adaptor to the DC input of the receiver first, then to the AC power socket.
ATTENTION: Only HID-compliant devices are supported by the extenders. Non-HID devices (USB sticks,
webcams, etc) will not be working with the receiver.
Projector Active speakers Audio amplifier
HDMI RS-232 Audio Audio
OPTM HDMI-3D-OPT-RX150RA

receiver

USB
CONT. FUNC.
HDCP HOTPLUG
POWER HDMI EMULATE RS-232
SIGNAL USB LINK
LASER FIBER LINK
Power USB USB
Power adaptor Laptop Keyboard / Mouse
Audio Cable Wiring Guide for the correct wiring.
HDMI-3D-OPT series – User's Manual
2.2.2. Transmitter
MacBook Blu-ray player
DP HDMI
HDMI-3D-OPT series
transmitter
Power
Power adaptor Relay box
OPTM
Connect the transmitter and the compatible receiver (e.g. a HDMI-3D-OPT-RX150RA) or matrix
input board using a multimode single fiber optical cable.
Connect the source(s) (e.g. a MacBook / Blu-ray player / PC) to the input port(s) of the transmitter
DP
HDMI by a DP / DVI-D / HDMI cable(s).
DVI-D
Audio Optionally connect an assymmetric audio device with unbalanced audio signal (e.g. an MP3
player) to the 2.5" TRS (jack) audio input port.
Audio Optionally connect a symmetric audio device with balanced audio signal (e.g. a media player)
to the 5-pole Phoenix audio input port. See the
HDMI
Connect the local sink device (e.g. a monitor) to the HDMI output port by an HDMI cable.
USB Optionally for USB HID extension: connect the transmitter to the computer by the USB mini B-type
cable.
RS-232 Optionally for RS-232 control: connect a controller/controlled device (e.g. a touch panel) to the
RS-232 port.
LAN
Optionally connect the switcher to a LAN network in order to control the device.
GPIO
Optionally connect a controller/controlled device (e.g. relay box) to the GPIO port.
Power Connect the power adaptor to the DC input of the transmitter first, then to the AC power socket.
PC MP3 player Media player Local monitor
DVI-D Audio Audio HDMI
OPTM
:
:
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect AUDIO2
USB AUDIO
VIDEO RST AUDIO SHOW
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
HDMI-3D-OPT-RX150RA
GPIO LAN USB RS-232
Ethernet PC
Touch panel
Audio Cable Wiring Guide
11
USB
CONT. FUNC.
HDCP HOTPLUG
HDMI EMULATE RS-232
POWER SIGNAL USB LINK
LASER FIBER LINK
receiver
for the correct wiring.
