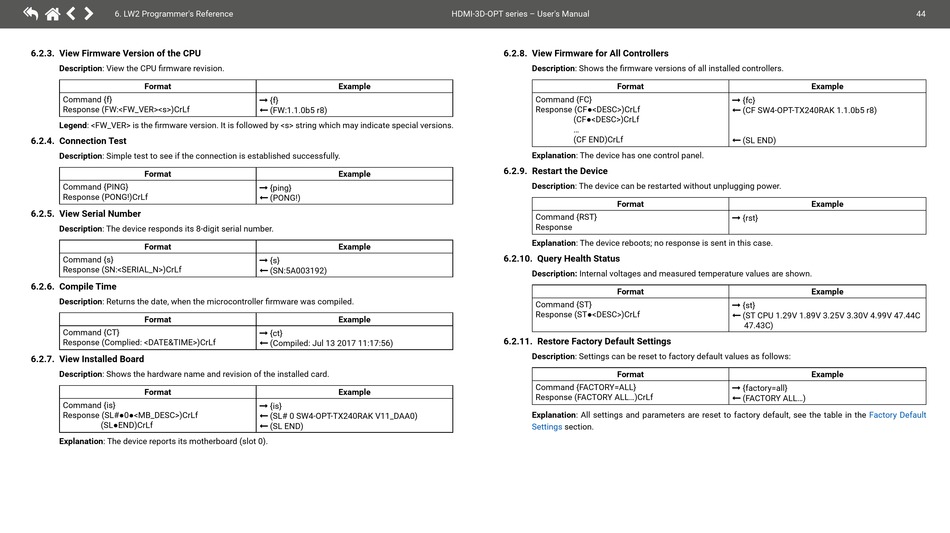

6. LW2 Programmer's Reference
6.2.3. View Firmware Version of the CPU
Description: View the CPU firmware revision.
Format
Command {f}
Response (FW:<FW_VER><s>)CrLf
Legend: <FW_VER> is the firmware version. It is followed by <s> string which may indicate special versions.
6.2.4. Connection Test
Description: Simple test to see if the connection is established successfully.
Format
Command {PING}
Response (PONG!)CrLf
6.2.5. View Serial Number
Description: The device responds its 8-digit serial number.
Format
Command {s}
Response (SN:<SERIAL_N>)CrLf
6.2.6. Compile Time
Description: Returns the date, when the microcontroller firmware was compiled.
Format
Command {CT}
Response (Complied: <DATE&TIME>)CrLf
6.2.7. View Installed Board
Description: Shows the hardware name and revision of the installed card.
Format
Command {is}
Response (SL#●0●<MB_DESC>)CrLf
(SL●END)CrLf
Explanation: The device reports its motherboard (slot 0).
Example
 {f}
 (FW:1.1.0b5 r8)
Example
 {ping}
 (PONG!)
Example
 {s}
 (SN:5A003192)
Example
 {ct}
 (Compiled: Jul 13 2017 11:17:56)
Example
 {is}
 (SL# 0 SW4-OPT-TX240RAK V11_DAA0)
 (SL END)
HDMI-3D-OPT series – User's Manual
6.2.8. View Firmware for All Controllers
Description: Shows the firmware versions of all installed controllers.
Format
Command {FC}
Response (CF●<DESC>)CrLf
(CF●<DESC>)CrLf
...
(CF END)CrLf
Explanation: The device has one control panel.
6.2.9. Restart the Device
Description: The device can be restarted without unplugging power.
Format
Command {RST}
Response
Explanation: The device reboots; no response is sent in this case.
6.2.10. Query Health Status
Description: Internal voltages and measured temperature values are shown.
Format
Command {ST}
Response (ST●<DESC>)CrLf
6.2.11. Restore Factory Default Settings
Description: Settings can be reset to factory default values as follows:
Format
Command {FACTORY=ALL}
Response (FACTORY ALL...)CrLf
Explanation: All settings and parameters are reset to factory default, see the table in the
Settings section.
Example
 {fc}
 (CF SW4-OPT-TX240RAK 1.1.0b5 r8)
 (SL END)
Example
 {rst}
Example
 {st}
 (ST CPU 1.29V 1.89V 3.25V 3.30V 4.99V 47.44C
47.43C)
Example
 {factory=all}
 (FACTORY ALL...)
