2. Installation

2
I nstallation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps:

Mounting Options

Î
Connecting Steps
Î
HDMI-3D-OPT series – User's Manual

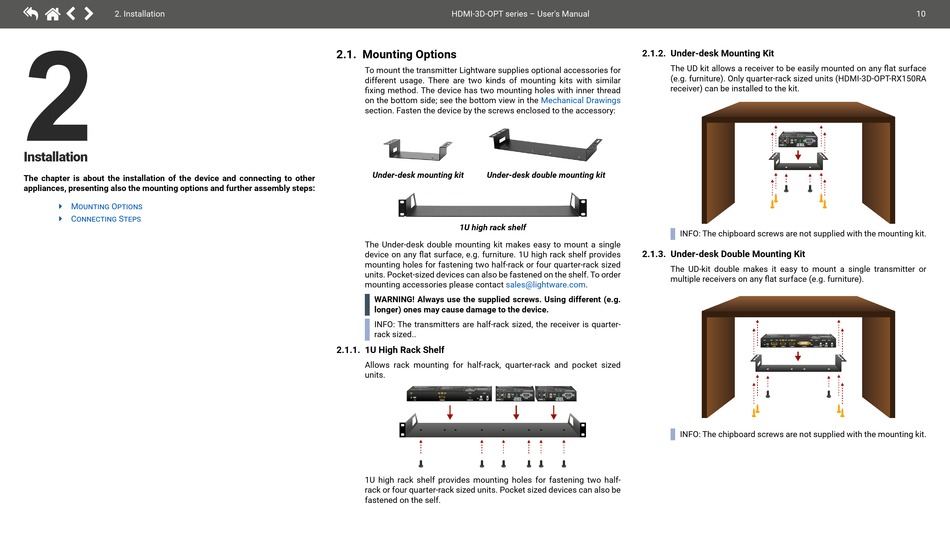

2.1. Mounting Options
To mount the transmitter Lightware supplies optional accessories for
different usage. There are two kinds of mounting kits with similar
fixing method. The device has two mounting holes with inner thread
on the bottom side; see the bottom view in the
section. Fasten the device by the screws enclosed to the accessory:

Under-desk mounting kit

Under-desk double mounting kit

1U high rack shelf
The Under-desk double mounting kit makes easy to mount a single
device on any flat surface, e.g. furniture. 1U high rack shelf provides
mounting holes for fastening two half-rack or four quarter-rack sized
units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact sales@lightware.com.
WARNING! Always use the supplied screws. Using different (e.g.
longer) ones may cause damage to the device.
INFO: The transmitters are half-rack sized, the receiver is quarter-
rack sized..
2.1.1. 1U High Rack Shelf
Allows rack mounting for half-rack, quarter-rack and pocket sized
units.
HDCP VIDEO AUDIO AUDIO1 AUDIO2
USB FUNC.
CONT.
USB RST HDCP
AUDIO SHOW POWER HDMI
1 HDMI IN 2 AUDIO1 IN SELECT ME LASER SIGNAL
1U high rack shelf provides mounting holes for fastening two half-
rack or four quarter-rack sized units. Pocket sized devices can also be
fastened on the self.
2.1.2. Under-desk Mounting Kit
The UD kit allows a receiver to be easily mounted on any flat surface
(e.g. furniture). Only quarter-rack sized units (HDMI-3D-OPT-RX150RA
receiver) can be installed to the kit.
Mechanical Drawings
INFO: The chipboard screws are not supplied with the mounting kit.
2.1.3. Under-desk Double Mounting Kit
The UD-kit double makes it easy to mount a single transmitter or
multiple receivers on any flat surface (e.g. furniture).
USB FUNC.
CONT.
HOTPLUG HDCP HOTPLUG RS-232
EMULATE RS-232 POWER HDMI EMULATE
USB LINK FIBER LINK SIGNAL LASER FIBER LINK USB LINK
INFO: The chipboard screws are not supplied with the mounting kit.
10
USB FUNC.
CONT.
HDCP HOTPLUG
HDMI EMULATE RS-232
POWER SIGNAL USB LINK
LASER FIBER LINK
:
:
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect AUDIO2
USB AUDIO VIDEO RST AUDIO SHOW
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
