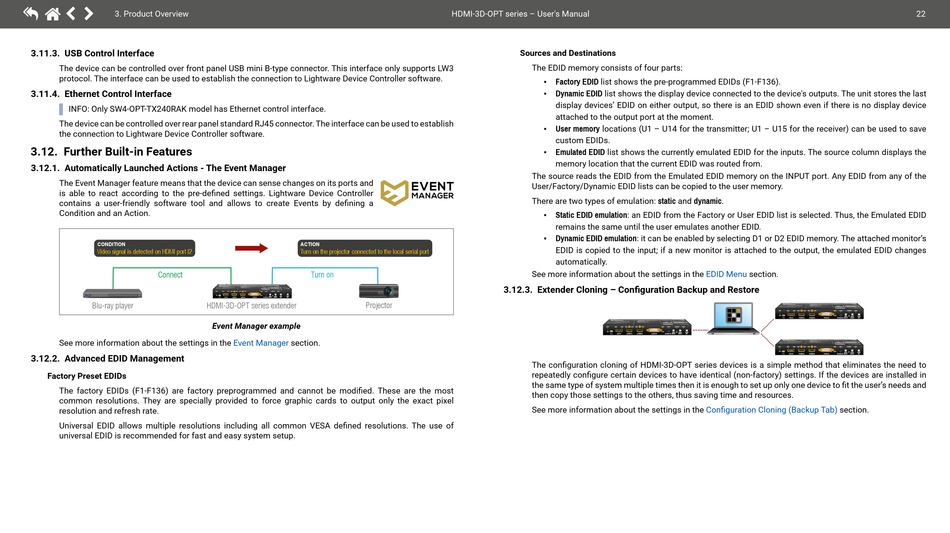

3.11.3. USB Control Interface
The device can be controlled over front panel USB mini B-type connector. This interface only supports LW3
protocol. The interface can be used to establish the connection to Lightware Device Controller software.
3.11.4. Ethernet Control Interface
INFO: Only SW4-OPT-TX240RAK model has Ethernet control interface.
The device can be controlled over rear panel standard RJ45 connector. The interface can be used to establish
the connection to Lightware Device Controller software.
3.12. Further Built-in Features
3.12.1. Automatically Launched Actions - The Event Manager
The Event Manager feature means that the device can sense changes on its ports and
is able to react according to the pre-defined settings. Lightware Device Controller
contains a user-friendly software tool and allows to create Events by defining a
Condition and an Action.
CONDITION
Video signal is detected on HDMI port I2
Connect
Blu-ray player
See more information about the settings in the
3.12.2. Advanced EDID Management
Factory Preset EDIDs
The factory EDIDs (F1-F136) are factory preprogrammed and cannot be modified. These are the most
common resolutions. They are specially provided to force graphic cards to output only the exact pixel
resolution and refresh rate.
Universal EDID allows multiple resolutions including all common VESA defined resolutions. The use of
universal EDID is recommended for fast and easy system setup.
ACTION
Turn on the projector connected to the local serial port
Turn on
: :
VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO
HDCP HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect AUDIO2 RESET
Autoselect
USB AUDIO
AUDIO VIDEO RST VIDEO AUDIO SHOW AUDIO SHOW
1 DP IN DP IN 2 HDMI1 IN HDMI IN 3 HDMI2 IN HDMI IN 4 DVI-D IN DVI-D IN 5 AUDIO1 IN 5 SELECT AUDIO IN SELECT SELECT SELECT ME ME
HDMI-3D-OPT series extender Projector
Event Manager example
Event Manager section.
HDMI-3D-OPT series – User's Manual
Sources and Destinations
The EDID memory consists of four parts:
▪ Factory EDID list shows the pre-programmed EDIDs (F1-F136).
Dynamic EDID list shows the display device connected to the device's outputs. The unit stores the last
▪
display devices' EDID on either output, so there is an EDID shown even if there is no display device
attached to the output port at the moment.
User memory locations (U1 – U14 for the transmitter; U1 – U15 for the receiver) can be used to save
▪
custom EDIDs.
▪ Emulated EDID list shows the currently emulated EDID for the inputs. The source column displays the
memory location that the current EDID was routed from.
The source reads the EDID from the Emulated EDID memory on the INPUT port. Any EDID from any of the
User/Factory/Dynamic EDID lists can be copied to the user memory.
There are two types of emulation: static and dynamic.
▪ Static EDID emulation: an EDID from the Factory or User EDID list is selected. Thus, the Emulated EDID
remains the same until the user emulates another EDID.
Dynamic EDID emulation: it can be enabled by selecting D1 or D2 EDID memory. The attached monitor's
▪
EDID is copied to the input; if a new monitor is attached to the output, the emulated EDID changes
automatically.
See more information about the settings in the
3.12.3. Extender Cloning – Configuration Backup and Restore
:
:
HDCP VIDEO AUDIO VIDEO
USB
1 DP IN 2 HDMI1 IN
The configuration cloning of HDMI-3D-OPT series devices is a simple method that eliminates the need to
repeatedly configure certain devices to have identical (non-factory) settings. If the devices are installed in
the same type of system multiple times then it is enough to set up only one device to fit the user's needs and
then copy those settings to the others, thus saving time and resources.
See more information about the settings in the
EDID Menu section.
:
:
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO
USB
1 DP IN 2 HDMI1 IN 3 HDMI2 IN
AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect AUDIO2
AUDIO RST
VIDEO AUDIO SHOW
3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
:
:
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO
USB
1 DP IN 2 HDMI1 IN 3 HDMI2 IN
Configuration Cloning (Backup Tab)
22
AUDIO VIDEO AUDIO1 Autoselect AUDIO2
AUDIO RST
VIDEO AUDIO SHOW
4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
AUDIO VIDEO AUDIO1 Autoselect AUDIO2
AUDIO RST
VIDEO AUDIO SHOW
4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
section.
