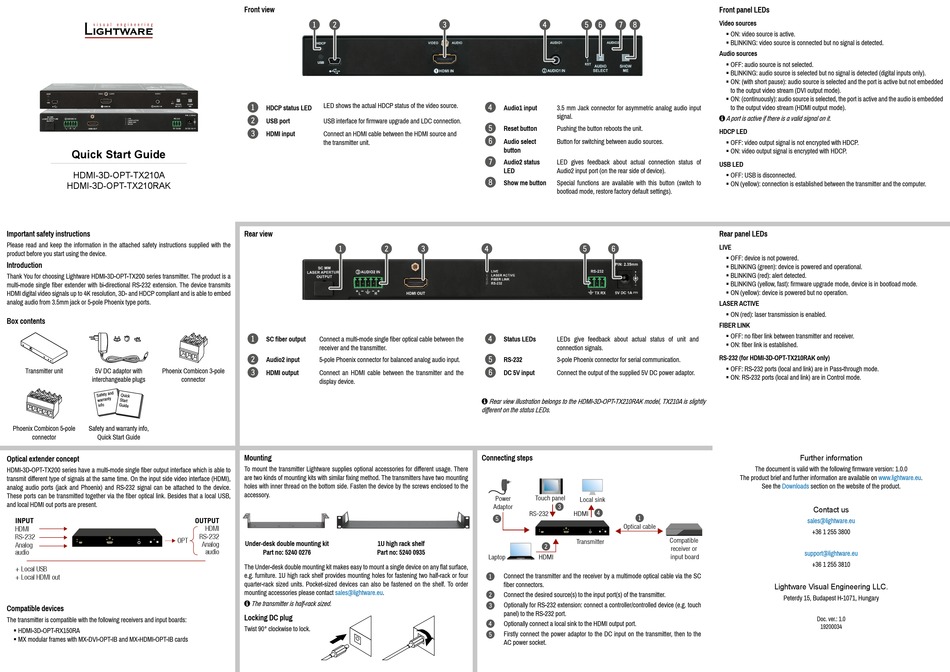

Quick Start Guide
HDMI-3D-OPT-TX210A
HDMI-3D-OPT-TX210RAK
Important safety instructions
Please read and keep the information in the attached safety instructions supplied with the
product before you start using the device.
Introduction
Thank You for choosing Lightware HDMI-3D-OPT-TX200 series transmitter. The product is a
multi-mode single fiber extender with bi-directional RS-232 extension. The device transmits
HDMI digital video signals up to 4K resolution, 3D- and HDCP compliant and is able to embed
analog audio from 3.5mm jack or 5-pole Phoenix type ports.
Box contents
Transmitter unit 5V DC adaptor with Phoenix Combicon 3-pole
interchangeable plugs connector
Phoenix Combicon 5-pole Safety and warranty info,
connector Quick Start Guide
Optical extender concept
HDMI-3D-OPT-TX200 series have a multi-mode single fiber output interface which is able to
transmit different type of signals at the same time. On the input side video interface (HDMI),
analog audio ports (jack and Phoenix) and RS-232 signal can be attached to the device.
These ports can be transmitted together via the fiber optical link. Besides that a local USB,
and local HDMI out ports are present.
INPUT
HDMI
RS-232
OPT
Analog
audio
+ Local USB
+ Local HDMI out
Compatible devices
The transmitter is compatible with the following receivers and input boards:
ƒ HDMI-3D-OPT-RX150RA
ƒ MX modular frames with MX-DVI-OPT-IB and MX-HDMI-OPT-IB cards
Front view
1 2
LED shows the actual HDCP status of the video source.
1
HDCP status LED
2
USB port USB interface for firmware upgrade and LDC connection.
3
HDMI input Connect an HDMI cable between the HDMI source and
the transmitter unit.
Rear view
1
1
SC fiber output Connect a multi-mode single fiber optical cable between the
receiver and the transmitter.
2
Audio2 input 5-pole Phoenix connector for balanced analog audio input.
3
HDMI output Connect an HDMI cable between the transmitter and the
display device.
Mounting
To mount the transmitter Lightware supplies optional accessories for different usage. There
are two kinds of mounting kits with similar fixing method. The transmitters have two mounting
holes with inner thread on the bottom side. Fasten the device by the screws enclosed to the
accessory.
OUTPUT
HDMI
RS-232
Under-desk double mounting kit
Analog
audio Part no: 5240 0276
The Under-desk double mounting kit makes easy to mount a single device on any flat surface,
e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-rack or four
quarter-rack sized units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact sales@lightware.eu.
 The transmitter is half-rack sized.
Locking DC plug
Twist 90° clockwise to lock.
3 4
4
Audio1 input 3.5 mm Jack connector for asymmetric analog audio input
signal.
5
Reset button Pushing the button reboots the unit.
6
Audio select Button for switching between audio sources.
button
7
Audio2 status LED gives feedback about actual connection status of
LED Audio2 input port (on the rear side of device).
8
Show me button Special functions are available with this button (switch to
bootload mode, restore factory default settings).
2 3 4
4
Status LEDs LEDs give feedback about actual status of unit and
connection signals.
5
RS-232 3-pole Phoenix connector for serial communication.
6
DC 5V input Connect the output of the supplied 5V DC power adaptor.
 Rear view illustration belongs to the HDMI-3D-OPT-TX210RAK model, TX210A is slightly
different on the status LEDs.
Connecting steps
Touch panel
Power
Adaptor 3
RS-232
5
1U high rack shelf
2
Part no: 5240 0935
Laptop HDMI
Connect the transmitter and the receiver by a multimode optical cable via the SC
1
fiber connectors.
2 Connect the desired source(s) to the input port(s) of the transmitter.
Optionally for RS-232 extension: connect a controller/controlled device (e.g. touch
3
panel) to the RS-232 port.
4 Optionally connect a local sink to the HDMI output port.
Firstly connect the power adaptor to the DC input on the transmitter, then to the
5
AC power socket.
Front panel LEDs
Video sources
5 6 7 8
ƒ ON: video source is active.
ƒ BLINKING: video source is connected but no signal is detected.
Audio sources
ƒ OFF: audio source is not selected.
ƒ BLINKING: audio source is selected but no signal is detected (digital inputs only).
ƒ ON: (with short pause): audio source is selected and the port is active but not embedded
to the output video stream (DVI output mode).
ƒ ON: (continuously): audio source is selected, the port is active and the audio is embedded
to the output video stream (HDMI output mode).
 A port is active if there is a valid signal on it.
HDCP LED
ƒ OFF: video output signal is not encrypted with HDCP.
ƒ ON: video output signal is encrypted with HDCP.
USB LED
ƒ OFF: USB is disconnected.
ƒ ON (yellow): connection is established between the transmitter and the computer.
Rear panel LEDs
LIVE
5 6
ƒ OFF: device is not powered.
ƒ BLINKING (green): device is powered and operational.
ƒ BLINKING (red): alert detected.
ƒ BLINKING (yellow, fast): firmware upgrade mode, device is in bootload mode.
ƒ ON (yellow): device is powered but no operation.
LASER ACTIVE
ƒ ON (red): laser transmission is enabled.
FIBER LINK
ƒ OFF: no fiber link between transmitter and receiver.
ƒ ON: fiber link is established.
RS-232 (for HDMI-3D-OPT-TX210RAK only)
ƒ OFF: RS-232 ports (local and link) are in Pass-through mode.
ƒ ON: RS-232 ports (local and link) are in Control mode.
The product brief and further information are available on www.lightware.eu.
Local sink
4
HDMI
1
Optical cable
Compatible
Transmitter
receiver or
input board
Further information
The document is valid with the following firmware version: 1.0.0
See the Downloads section on the website of the product.
Contact us
sales@lightware.eu
+36 1 255 3800
support@lightware.eu
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 1.0
19200034
