11. Appendix
3D support ..........................................................................................Yes
HDCP 1.4 compliant ..........................................................................Yes
Audio Inputs
Embedded audio signal
Supported on ........................................................DP, DVI-D, HDMI ports
Supported audio formats ..........PCM (up to 192 kHz), MPCM (up to 8
channels)
Analog audio input
Signal type .................................. PCM, Compressed, DSD, High Bitrate
Sampling frequency ..................................................................... 48 kHz
Volume............................................................................... -78 dB – 0 dB
Balance ................................................................... 0 - 100 (50 = center)
Gain ....................................................................................... 0 dB – 6 dB
Connector .............................. 3.5 mm Jack, 5-pole Phoenix connector
RS-232 Control
Serial port connector .................................... 3-pole Phoenix connector
Available Baud rates ................................... between 4800 and 115200
GPIO
Port connector .............................................. 8-pole Phoenix connector
Port direction................................................................... Input or output
USB
USB connector .............................................................. USB mini B type
USB 2.0 compliance...........................................................................Yes
Optical
Fiber type ..... 50/125 SC Multimode (preferred), 62.5/125 SC Multimode
Laser wavelengths ...............High speed lanes: 778; 800; 825; 850 nm
.................................................................Low speed lane: 911; 980 nm
Laser class specification .......................................................... Class 3R
HDMI-3D-OPT series – User's Manual

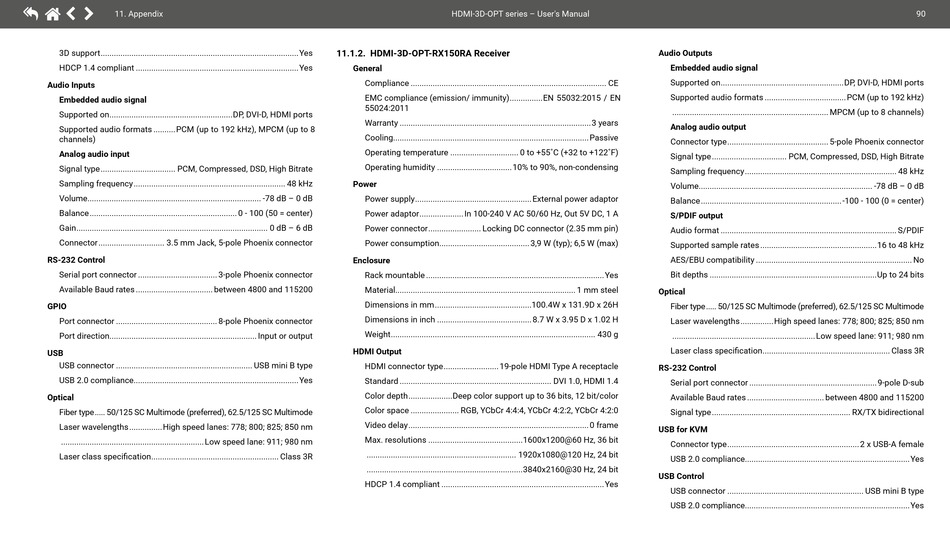

11.1.2. HDMI-3D-OPT-RX150RA Receiver
General
Compliance ......................................................................................... CE
EMC compliance (emission/ immunity) ...............EN 55032:2015 / EN
55024:2011
Warranty .......................................................................................3 years
Cooling.........................................................................................Passive
Operating temperature ............................... 0 to +55˚C (+32 to +122˚F)
Operating humidity ..................................10% to 90%, non-condensing
Power
Power supply .....................................................External power adaptor
Power adaptor .................... In 100-240 V AC 50/60 Hz, Out 5V DC, 1 A
Power connector ........................ Locking DC connector (2.35 mm pin)
Power consumption ......................................... 3,9 W (typ); 6,5 W (max)
Enclosure
Rack mountable .................................................................................Yes
Material .................................................................................. 1 mm steel
Dimensions in mm ............................................100.4W x 131.9D x 26H
Dimensions in inch ........................................... 8.7 W x 3.95 D x 1.02 H
Weight ............................................................................................. 430 g
HDMI Output
HDMI connector type ......................... 19-pole HDMI Type A receptacle
Standard ..................................................................... DVI 1.0, HDMI 1.4
Color depth ....................Deep color support up to 36 bits, 12 bit/color
Color space ...................... RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Video delay .................................................................................. 0 frame
Max. resolutions ...........................................1600x1200@60 Hz, 36 bit
.................................................................... 1920x1080@120 Hz, 24 bit
.......................................................................3840x2160@30 Hz, 24 bit
HDCP 1.4 compliant ..........................................................................Yes
Audio Outputs
Embedded audio signal
Supported on ........................................................DP, DVI-D, HDMI ports
Supported audio formats .....................................PCM (up to 192 kHz)
....................................................................... MPCM (up to 8 channels)
Analog audio output
Connector type .............................................. 5-pole Phoenix connector
Signal type .................................. PCM, Compressed, DSD, High Bitrate
Sampling frequency ..................................................................... 48 kHz
Volume............................................................................... -78 dB – 0 dB
Balance ................................................................-100 - 100 (0 = center)
S/PDIF output
Audio format ................................................................................ S/PDIF
Supported sample rates .....................................................16 to 48 kHz
AES/EBU compatibility ....................................................................... No
Bit depths ............................................................................Up to 24 bits
Optical
Fiber type ..... 50/125 SC Multimode (preferred), 62.5/125 SC Multimode
Laser wavelengths ...............High speed lanes: 778; 800; 825; 850 nm
.................................................................Low speed lane: 911; 980 nm
Laser class specification .......................................................... Class 3R
RS-232 Control
Serial port connector ..........................................................9-pole D-sub
Available Baud rates ................................... between 4800 and 115200
Signal type ............................................................... RX/TX bidirectional
USB for KVM
Connector type ............................................................2 x USB-A female
USB 2.0 compliance...........................................................................Yes
USB Control
USB connector .............................................................. USB mini B type
USB 2.0 compliance...........................................................................Yes
