11. Appendix

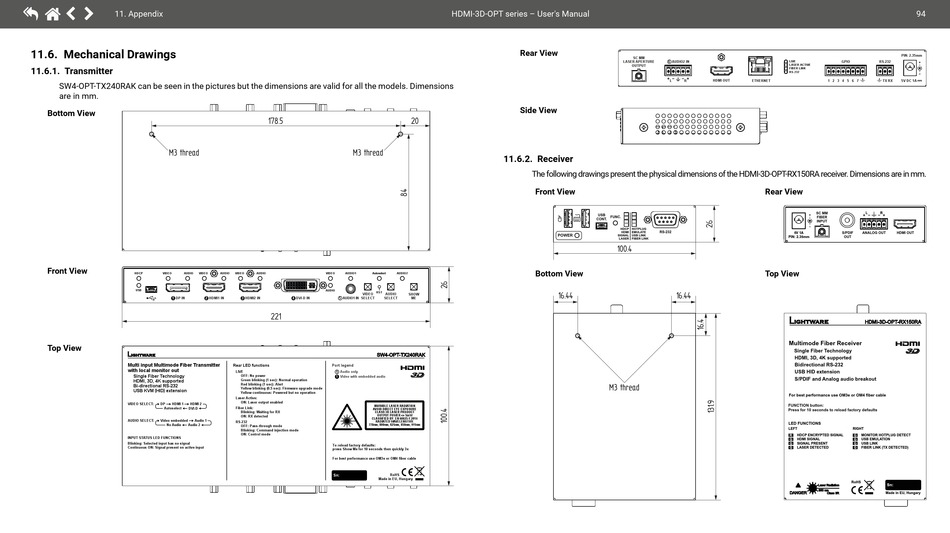

11.6. Mechanical Drawings
11.6.1. Transmitter
SW4-OPT-TX240RAK can be seen in the pictures but the dimensions are valid for all the models. Dimensions
are in mm.
Bottom View
M3 thread
Front View
HDCP VIDEO AUDIO VIDEO
USB
1 DP IN
Top View
Multi input Multimode Fiber Transmitter
with local monitor out
Single Fiber Technology
HDMI, 3D, 4K supported
Bi-directional RS-232
USB KVM ( HID ) extension
VIDEO SELECT: DP HDMI 1 HDMI 2
Autoselect DVI-D
AUDIO SELECT: Video embedded Audio 1
No Audio Audio 2
INPUT STATUS LED FUNCTIONS
Blinking: Selected input has no signal
Continuous ON: Signal present on active input
178.5
M3 thread
AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect
AUDIO
RST
VIDEO
2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT
221
SW4-OPT-TX240RAK
Rear LED functions Port legend
LIVE Audio only
OFF: No power
1 Video with embedded audio
Green blinking (1 sec): Normal operation
Red blinking (1 sec): Alert
Yellow blinking (0.5 sec): Firmware upgrade mode
Yellow continuous: Powered but no operation
Laser Active:
ON: Laser output enabled
INVISIBLE LASER RADIATION
Fiber Link:
AVOID DIRECT EYE EXPOSURE
Blinking: Waiting for RX CLASS 3R LASER PRODUCT
OUTPUT POWER <= 5mW
ON: RX detected
CLASSIFIED BY: EN 60825-1:2014
RADIATED WAVELENGTHS:
RS-232
778nm, 800nm, 825nm, 850nm, 911nm
OFF: Pass-through mode
Blinking: Command injection mode
ON: Control mode
T o reload factory defaults:
press Show Me for 10 seconds then quickly 3x
For best performance use OM3e or OM4 fiber cable
Sn:
Made in EU, Hungary
HDMI-3D-OPT series – User's Manual
Rear View
Side View
20
11.6.2. Receiver
The following drawings present the physical dimensions of the HDMI-3D-OPT-RX150RA receiver. Dimensions are in mm.
Front View
POWER
Bottom View
AUDIO2
16.44
AUDIO
SHOW
ME
RoHS
SC MM
LASER APERTURE 6 AUDIO2 IN
OUTPUT
L R HDMI OUT ETHERNET
Rear View
USB
FUNC.
CONT.
HDCP HOTPLUG
HDMI EMULATE RS-232
SIGNAL USB LINK
LASER FIBER LINK
100.4
Top View
16.44
M3 thread
94
PIN: 2.35mm
LIVE GPIO RS-232
LASER ACTIVE
FIBER LINK
RS-232
1 2 3 4 5 6 7 TX RX 5V DC 1A
L R
SC MM
FIBER
INPUT
5V 1A S/PDIF ANALOG OUT HDMI OUT
PIN: 2.35mm OUT
HDMI-3D-OPT-RX150RA
Multimode Fiber Receiver
Single Fiber Technology
HDMI, 3D, 4K supported
Bidirectional RS-232
USB HID extension
S/PDIF and Analog audio breakout
For best performance use OM3e or OM4 fiber cable
FUNCTION button:
Press for 10 seconds to reload factory defaults
LED FUNCTIONS
LEFT RIGHT
HDCP ENCRYPTED SIGNAL MONITOR HOTPLUG DETECT
HDMI SIGNAL USB EMULATION
SIGNAL PRESENT USB LINK
LASER DETECTED FIBER LINK (TX DETECTED)
RoHS
Sn:
Laser Radiation
850 nm
DANGER Made in EU, Hungary
Class 3R
