3. Product Overview

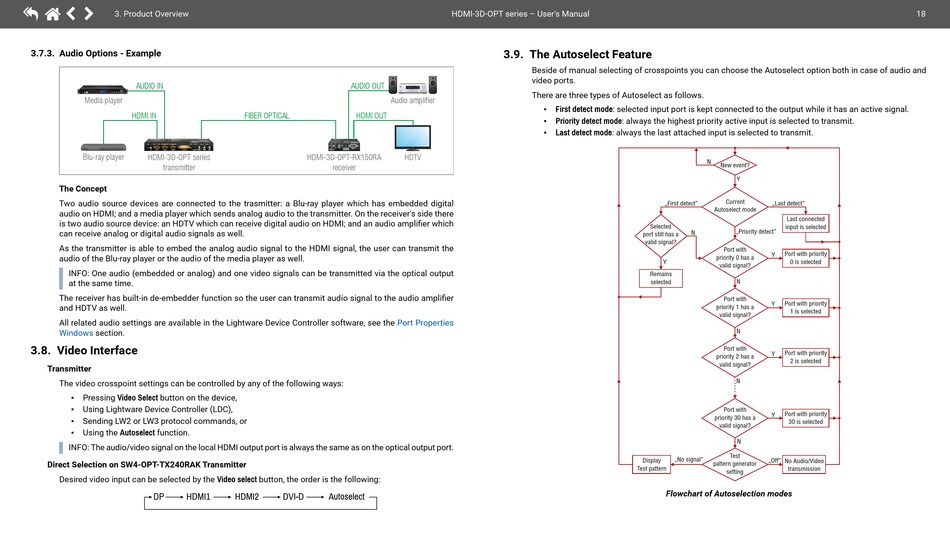

3.7.3. Audio Options - Example
AUDIO IN
Media player
HDMI IN
: :
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect
USB AUDIO
VIDEO RST
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT
Blu-ray player HDMI-3D-OPT series
transmitter
The Concept
Two audio source devices are connected to the trasmitter: a Blu-ray player which has embedded digital
audio on HDMI; and a media player which sends analog audio to the transmitter. On the receiver's side there
is two audio source device: an HDTV which can receive digital audio on HDMI; and an audio amplifier which
can receive analog or digital audio signals as well.
As the transmitter is able to embed the analog audio signal to the HDMI signal, the user can transmit the
audio of the Blu-ray player or the audio of the media player as well.
INFO: One audio (embedded or analog) and one video signals can be transmitted via the optical output
at the same time.
The receiver has built-in de-embedder function so the user can transmit audio signal to the audio amplifier
and HDTV as well.
All related audio settings are available in the Lightware Device Controller software, see the
Windows section.
3.8. Video Interface
Transmitter
The video crosspoint settings can be controlled by any of the following ways:
Pressing Video Select button on the device,
▪
▪ Using Lightware Device Controller (LDC),
▪ Sending LW2 or LW3 protocol commands, or
Using the Autoselect function.
▪
INFO: The audio/video signal on the local HDMI output port is always the same as on the optical output port.
Direct Selection on SW4-OPT-TX240RAK Transmitter
Desired video input can be selected by the Video select button, the order is the following:
DP HDMI1
AUDIO OUT
FIBER OPTICAL HDMI OUT
AUDIO2
USB FUNC.
CONT.
HDCP HOTPLUG
AUDIO SHOW POWER HDMI EMULATE RS-232
ME SIGNAL LASER FIBER LINK USB LINK
HDMI-3D-OPT-RX150RA
receiver
HDMI2 DVI-D Autoselect
HDMI-3D-OPT series – User's Manual
3.9. The Autoselect Feature
Beside of manual selecting of crosspoints you can choose the Autoselect option both in case of audio and
video ports.
There are three types of Autoselect as follows.
Audio amplifier
▪ First detect mode: selected input port is kept connected to the output while it has an active signal.
▪ Priority detect mode: always the highest priority active input is selected to transmit.
Last detect mode: always the last attached input is selected to transmit.
▪
HDTV
Port Properties
N
New event?
Y
Current
„First detect" „Last detect"
Autoselect mode
Last connected
Selected input is selected
„Priority detect"
N
port still has a
valid signal?
Port with
Port with priority
Y
priority 0 has a
Y 0 is selected
valid signal?
Remains
selected N
Port with
Y Port with priority
priority 1 has a
1 is selected
valid signal?
N
Port with
Y Port with priority
priority 2 has a
2 is selected
valid signal?
N
Port with
Port with priority
Y
priority 30 has a
30 is selected
valid signal?
N
Test
„No signal"
Display „Off" No Audio/Video
pattern generator
Test pattern transmission
setting
Flowchart of Autoselection modes
18
