5. Software Control - Lightware Device Controller
5.4.3. Analog Audio Inputs

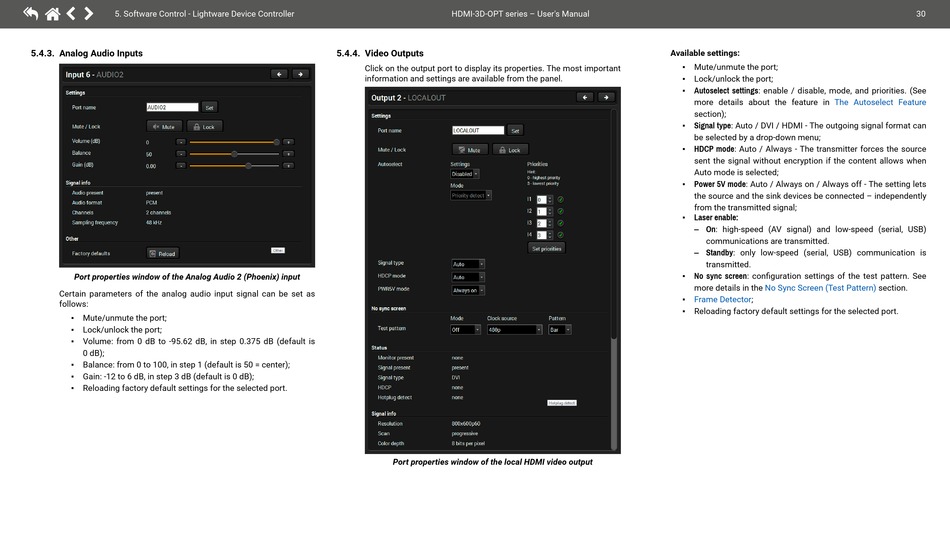

Port properties window of the Analog Audio 2 (Phoenix) input
Certain parameters of the analog audio input signal can be set as
follows:
▪ Mute/unmute the port;
Lock/unlock the port;
▪
▪ Volume: from 0 dB to -95.62 dB, in step 0.375 dB (default is
0 dB);
Balance: from 0 to 100, in step 1 (default is 50 = center);
▪
▪ Gain: -12 to 6 dB, in step 3 dB (default is 0 dB);
▪ Reloading factory default settings for the selected port.
HDMI-3D-OPT series – User's Manual
5.4.4. Video Outputs
Click on the output port to display its properties. The most important
information and settings are available from the panel.
Port properties window of the local HDMI video output
Available settings:
▪ Mute/unmute the port;
Lock/unlock the port;
▪
Autoselect settings: enable / disable, mode, and priorities. (See
▪
more details about the feature in The Autoselect Feature
section);
Signal type: Auto / DVI / HDMI - The outgoing signal format can
▪
be selected by a drop-down menu;
▪ HDCP mode: Auto / Always - The transmitter forces the source
sent the signal without encryption if the content allows when
Auto mode is selected;
▪ Power 5V mode: Auto / Always on / Always off - The setting lets
the source and the sink devices be connected – independently
from the transmitted signal;
▪ Laser enable:
– On: high-speed (AV signal) and low-speed (serial, USB)
communications are transmitted.
– Standby: only low-speed (serial, USB) communication is
transmitted.
▪ No sync screen: configuration settings of the test pattern. See
more details in the No Sync Screen (Test Pattern)
Frame Detector;
▪
▪ Reloading factory default settings for the selected port.
30
section.
