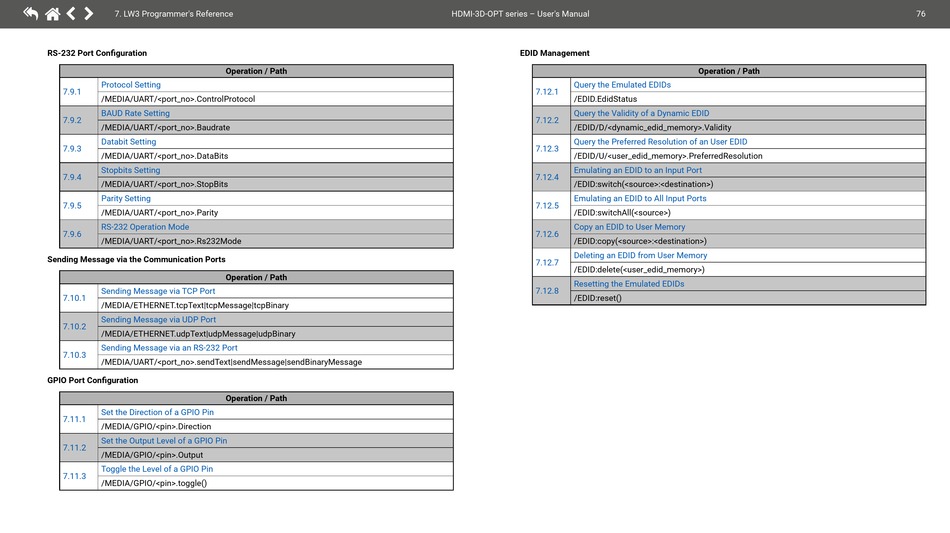

7. LW3 Programmer's Reference
RS-232 Port Configuration
Protocol Setting
7.9.1
/MEDIA/UART/<port_no>.ControlProtocol
BAUD Rate Setting
7.9.2
/MEDIA/UART/<port_no>.Baudrate
Databit Setting
7.9.3
/MEDIA/UART/<port_no>.DataBits
Stopbits Setting
7.9.4
/MEDIA/UART/<port_no>.StopBits
Parity Setting
7.9.5
/MEDIA/UART/<port_no>.Parity
RS-232 Operation Mode
7.9.6
/MEDIA/UART/<port_no>.Rs232Mode
Sending Message via the Communication Ports
Sending Message via TCP Port
7.10.1
/MEDIA/ETHERNET.tcpText|tcpMessage|tcpBinary
Sending Message via UDP Port
7.10.2
/MEDIA/ETHERNET.udpText|udpMessage|udpBinary
Sending Message via an RS-232 Port
7.10.3
/MEDIA/UART/<port_no>.sendText|sendMessage|sendBinaryMessage
GPIO Port Configuration
Set the Direction of a GPIO Pin
7.11.1
/MEDIA/GPIO/<pin>.Direction
Set the Output Level of a GPIO Pin
7.11.2
/MEDIA/GPIO/<pin>.Output
Toggle the Level of a GPIO Pin
7.11.3
/MEDIA/GPIO/<pin>.toggle()
Operation / Path
Operation / Path
Operation / Path
HDMI-3D-OPT series – User's Manual
EDID Management
Query the Emulated EDIDs
7.12.1
/EDID.EdidStatus
Query the Validity of a Dynamic EDID
7.12.2
/EDID/D/<dynamic_edid_memory>.Validity
Query the Preferred Resolution of an User EDID
7.12.3
/EDID/U/<user_edid_memory>.PreferredResolution
Emulating an EDID to an Input Port
7.12.4
/EDID:switch(<source>:<destination>)
Emulating an EDID to All Input Ports
7.12.5
/EDID:switchAll(<source>)
Copy an EDID to User Memory
7.12.6
/EDID:copy(<source>:<destination>)
Deleting an EDID from User Memory
7.12.7
/EDID:delete(<user_edid_memory>)
Resetting the Emulated EDIDs
7.12.8
/EDID:reset()
Operation / Path
