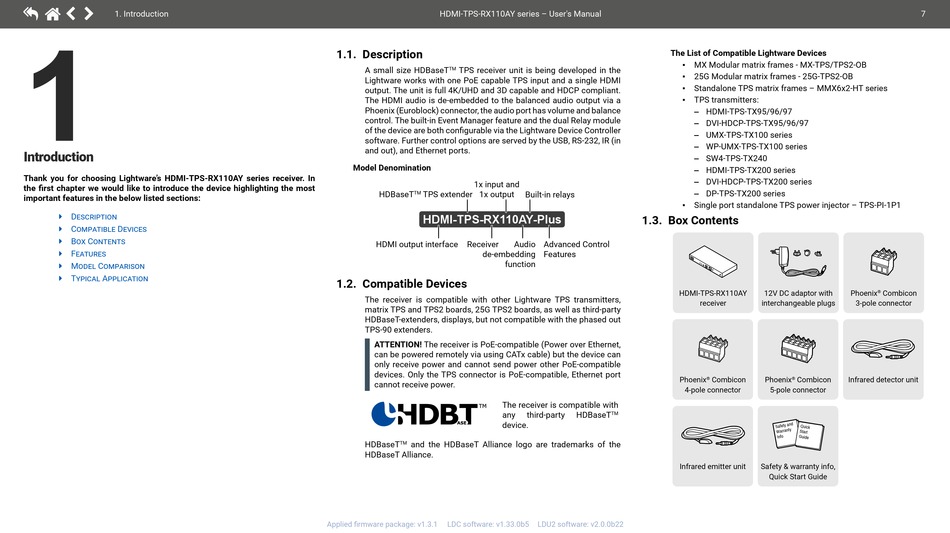

1. Introduction

1
I ntroduction
Thank you for choosing Lightware's HDMI-TPS-RX110AY series receiver. In
the first chapter we would like to introduce the device highlighting the most
important features in the below listed sectionsE:

Description

Î

Compatible Devices

Î

Box Contents

Î

Features

Î
Model Comparison
Î
Typical Application
Î
HDMI-TPS-RX110AY series – User's Manual
1.1. Description
A small size HDBaseT TPS receiver unit is being developed in the
TM
Lightware works with one PoE capable TPS input and a single HDMI
output. The unit is full 4C/UHD and 3D capable and HDCI compliant.
The HDMI audio is de-embedded to the balanced audio output via a
Phoenix (Euroblock) connector, the audio port has volume and balance
control. The built-in Event Manager feature and the dual Relay module
of the device are both configurable via the Lightware Device Controller
software. Further control options are served by the USB, RS-232, IR (in
and out), and Ethernet ports.
Model Denomination
1x input and
HDBaseT TPS extender 1x output
TM
HDMI-TPS-RX110AY-Plus
HDMI output interface Receiver
de-embedding
function
1.2. Compatible Devices
The receiver is compatible with other Lightware TPS transmitters,
matrix TIPS and TIPS2 boards, 25G TIPS2 boards, as well as third-party
HDBaseT-extenders, displays, but not compatible with the phased out
TIPS-90 extenders.

ATTENTIING! The receiver is PoE-compatible (Power over Ethernet,
can be powered remotely via using CATx cable) but the device can
only receive power and cannot send power other PoE-compatible
devices. Only the TPS connector is PoE-compatible, Ethernet port
cannot receive power.
The receiver is compatible with
any
device.
HDBaseT and the HDBaseT Alliance logo are trademarks of the
TM
HDBaseT Alliance.
Applied firmware package: v1.3.1 LDC software: v1.33.0b5
The List of Compatible Lightware Devices
▪
▪
▪
▪
Built-in relays
▪
1.3. Box Contents
Audio Advanced Control
Features
HDMI-TPS-RX110AY
Phoenix
4-pole connector
third-party HDBaseT
TM
Infrared emitter unit
LDU2 software: v2.0.0b22
MX Modular matrix frames - MX-TIPS/TIPS2-FB
25G Modular matrix frames - 25G-TIPS2-FB
Standalone TPS matrix frames – MMX6x2-HT series
TIPS transmitters:
– HDM
-TIPS-TX95/96/97
– DV
-HDCI-TIPS-TX95/96/97
– UMX-TPS-TX100 series
– WP-UMX-TPS-TX100 series
– PSW4-TIPS-TX240
– HDMI-TPS-TX200 series
– DVI-HDCP-TPS-TX200 series
– DP-TPS-TX200 series
Single port standalone TPS power injector – TPS-PI-1P1
12V DC adaptor with Phoenix
receiver interchangeable plugs 3-pole connector
Combicon Phoenix Combicon Infrared detector unit
® ®
5-pole connector
Safety & warranty info,
Quick PStart Guide
7
Combicon
®
