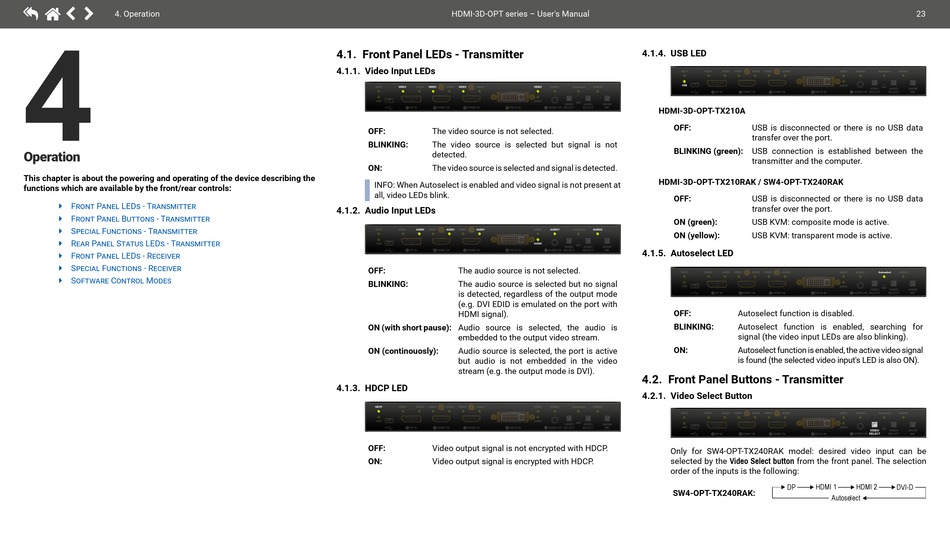

4. Operation

4
O peration
This chapter is about the powering and operating of the device describing the
functions which are available by the front/rear controls:

Front Panel LEDs - Transmitter

Î

Front Panel Buttons - Transmitter

Î
Special Functions - Transmitter
Î
Rear Panel Status LEDs - Transmitter
Î
Front Panel LEDs - Receiver
Î
Special Functions - Receiver
Î
Software Control Modes
Î
HDMI-3D-OPT series – User's Manual
4.1. Front Panel LEDs - Transmitter
4.1.1. Video Input LEDs
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO
USB
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN
OFF: The video source is not selected.
BLINKING: The video source is selected but signal is not
detected.
ON: The video source is selected and signal is detected.
INFO: When Autoselect is enabled and video signal is not present at
all, video LEDs blink.
4.1.2. Audio Input LEDs
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO
USB
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN
OFF: The audio source is not selected.
BLINKING: The audio source is selected but no signal
is detected, regardless of the output mode
(e.g. DVI EDID is emulated on the port with
HDMI signal).
ON (with short pause): Audio source is selected, the audio is
embedded to the output video stream.
ON (continouosly): Audio source is selected, the port is active
but audio is not embedded in the video
stream (e.g. the output mode is DVI).
4.1.3. HDCP LED
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO
USB
1 DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN
OFF: Video output signal is not encrypted with HDCP.
ON: Video output signal is encrypted with HDCP.
4.1.4. USB LED
HDCP VIDEO
USB
VIDEO AUDIO1 Autoselect AUDIO2
1
AUDIO
RST
VIDEO AUDIO SHOW
HDMI-3D-OPT-TX210A
5 AUDIO1 IN SELECT SELECT ME
OFF:
BLINKING (green):
HDMI-3D-OPT-TX210RAK / SW4-OPT-TX240RAK
OFF:
ON (green):
VIDEO AUDIO1 Autoselect AUDIO2
ON (yellow):
AUDIO
RST
VIDEO AUDIO SHOW
4.1.5. Autoselect LED
5 AUDIO1 IN SELECT SELECT ME
HDCP VIDEO
USB
1
OFF:
BLINKING:
ON:
4.2. Front Panel Buttons - Transmitter
4.2.1. Video Select Button
VIDEO AUDIO1 Autoselect AUDIO2
HDCP VIDEO
AUDIO
RST
VIDEO AUDIO SHOW
USB
5 AUDIO1 IN SELECT SELECT ME
1
Only for SW4-OPT-TX240RAK model: desired video input can be
selected by the Video Select button from the front panel. The selection
order of the inputs is the following:
SW4-OPT-TX240RAK:
AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect
AUDIO
RST
VIDEO AUDIO
DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT
USB is disconnected or there is no USB data
transfer over the port.
USB connection is established between the
transmitter and the computer.
USB is disconnected or there is no USB data
transfer over the port.
USB KVM: composite mode is active.
USB KVM: transparent mode is active.
AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect
AUDIO
RST
VIDEO AUDIO
DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT
Autoselect function is disabled.
Autoselect function is enabled, searching for
signal (the video input LEDs are also blinking).
Autoselect function is enabled, the active video signal
is found (the selected video input's LED is also ON).
AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect
AUDIO
RST
VIDEO AUDIO
DP IN 2 HDMI1 IN 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT
DP HDMI 1 HDMI 2
Autoselect
23
AUDIO2
SHOW
ME
AUDIO2
SHOW
ME
AUDIO2
SHOW
ME
DVI-D
