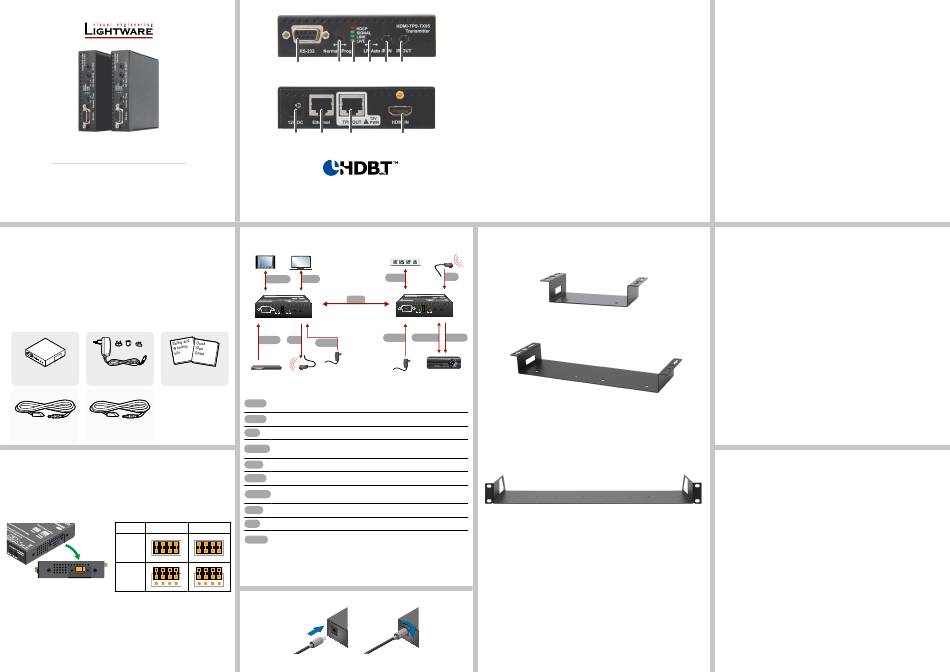

Lightware HDMI-TPS-TX95 Quick Start Manual

Quick Start Guide
HDMI-TPS-TX95
HDMI-TPS-RX95
DVI-HDCP-TPS-TX95
DVI-HDCP-TPS-RX95
Important Safety Instructions
Please read the supplied safety instruction document before using the product and keep it
available for future reference.
Introduction
The HDMI-TPS-RX/TX95 and DVI-HDCP-TPS-RX/TX95 are DVI 1.0 and HDMI 1.4
compatible long-distance extenders. The difference between HDMI and DVI-HDCP models
is just the HDMI and DVI connector. The units offer bi-directional RS-232, Infra-Red (IR), and
Ethernet signal pass-through on the same CAT5e...CAT7 cable that carries the uncompressed
HDMI video and audio signal.
Box Contents
Extender unit 12V DC adaptor with Safety and Warranty info,
interchangeable plugs Quick Start Guide
Infrared emitter unit Infrared detector unit
(for TX95) (for RX95)
Remote Power Options
The TPS extenders can be powered remotely by its extender pair or a TPS matrix board. This
feature can be enabled or disabled with jumper settings. Switch off the extenders. Loose the
screws and remove the small plate from the right side of the enclosure. To enable the remote
power function place the jumper block onto all the pinheads. To disable it place the jumper
block onto the upper line pinheads only. In case of enabled remote power on both extenders
the local adaptor can be placed at any side.
TX side
Enabled
Disabled
(default)
 The TPS remote powering must be used only with 95 series TPS extenders and MX
TPS matrix boards. Using it with other devices may damage both units. Connecting
incompatible devices with similar connectors may cause harm to the devices. Never
connect any third party device to the extender with remote powering!
 AWG 26 cables are not recommended with remote powering (reduce cable distances).
Front View
1 2 3 4 5
Rear View
7 8 9
 The transmitters and the receivers have the same construction and connectors.
The product is compatible with
HDBaseT TM and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Connecting Steps
Touch panel Laptop
RS-232 LAN
CATx
HDMI-TPS-TX95
HDCP Transmitter
SIGNAL HDMI- HDMI-
LINK
LIVE
RS-232 Normal Prog LR Auto IR IN IR OUT
TPS-TX95 TPS-RX95
HDMI IR
Power
Power
Blu-ray player IR emitter adaptor Power adaptor
DVI
Connect the TPS output port of the Transmitter to the TPS input port of the
CATx
Receiver by a CATx cable.
HDMI
Connect a source to the HDMI (DVI-D) input port of the transmitter.
IR
Connect an IR emitter unit to the IR output port of the transmitter.
Connect a controller device to the local RS-232 port of the transmitter.
RS-232
Make sure the RS-232 switch is in Normal position.
LAN
Optionally connect a laptop to the Ethernet port of the transmitter.
HDMI
Connect a sink device to the HDMI (DVI-D) output port of the receiver.
Connect a serial cable between the sink device and the RS-232 port of the
RS-232
receiver.
LAN
Connect the receiver to Ethernet by a CATx cable.
IR
Connect an IR detector unit to the IR input port of the receiver.
RX side
Firstly connect the power adaptor to the DC input of the power injector, then
Power
secondly to the AC power socket.
Locking DC Plug
Twist 90° clockwise to lock.
Front and Rear View – Legend
1
RS-232 port Local RS-232 port for bidirectional serial data connection and
performing firmware upgrade (programming).
2 RS-232 switch Normal: serial data is passed through the device.
Prog: RS-232 pass-through function is disabled, the device is
ready for the firmware upgrade.
6
3 Status LEDs See the next section.
4
TPS mode LR: Long reach TPS mode; lower resolution (max 1080p),
switch longer distances; Auto: TPS mode is determined automatically.
5 IR input IR signal input connector (for 3.5 mm Jack, 3-pole, TRS plug).
6
IR output IR signal output connector (for 3.5 mm Jack, 2-pole, TS plug).
7 DC input 12V DC input for local power supply.
q
8
Ethernet port The Ethernet data is passed through the device.
9 TPS port TPS port to the other compatible device (extender / matrix /
board).
q HDMI port Video port for DVI or HDMI signal.
Mounting Options
Lightware offers three types of mounting accessory to fix the extenders:
Ethernet switch IR detector
Under Desk Mounting Kit (UD-kit)
The UD-kit makes easy to mount one extender under any flat surface (e.g. furniture).
IR
LAN
HDMI-TPS-RX95
HDCP Receiver
SIGNAL
LINK
LIVE
RS-232 Normal Prog LR Auto IR IN IR OUT
UD Mounting Kit Double (UD-kit double)
The UD-kit double makes easy to mount two extenders under any flat surface (e.g. furniture).
Power RS-232 HDMI
Projector
Rack Shelf
1U high rack shelf provides mounting holes for fastening up to four extenders.
Mounting Steps
 Always use the fixing screws which are supplied with the mounting accessory. If
you insert screws longer than 6 mm, the device can be damaged.
1. Unplug all the cables connected to the device(s).
2. Turn the device(s) upside down.
3. Put the shelf upside down on the device(s). Position it to get the mounting holes aligned.
4. Fasten the device on the shelf with the provided screws.
5. Fix the shelf to the desired place (screws are not supplied).
Status LEDs
HDCP
ƒ OFF: video output signal is not encrypted with HDCP.
ƒ ON: video output signal is encrypted with HDCP.
VIDEO
ƒ OFF: no video signal transmission.
ƒ ON: video signal transmission.
LINK
ƒ OFF: TPS connection failed between the devices.
ƒ BLINKING: TPS connection is detected and LPPF link mode is active.
ƒ ON: TPS connection is detected and HDBT or LR link mode is active.
LIVE
ƒ OFF: no power supply or out of order.
ƒ BLINKING: device is powered and ready to use.
TPS link modes
If an extender and a TPS matrix board are paired the board forces the extender to use the
settings of the matrix. The extender's TPS mode switch has no effect. For detailed information
about the TPS link modes in case of matrix boards see the user's manual of the matrix.
Installation of the Extender with a Matrix
1. Power off all devices. (Installing with powered devices may harm them.)
2. Check the RS-232 switch(es) on the extender(s); they must be in Normal position.
3. The state of the TPS link mode switch makes no difference on the extender because the
connected board forces the extender to use the settings of the matrix.
4. Set the remote power mode of the matrix boards with the jumpers on them. Every port
can be set for remote powering separately. To enable the remote power function place
the jumper block onto all the pinheads of the desired port. To disable it remove the jumper
block. For detailed information, see the user's manual of the matrix.
5. Set the extenders' remote power mode with the same method as it mentioned in the
standalone case.
6. Pair the extender(s) and the matrix board(s) with CATx cable(s). The transmitters' TPS
OUT with the input boards' TPS IN and the receivers' TPS IN with the output boards'
TPS OUT.
7. Connect the video source(s), sink(s) and the desired accessory device(s) to the matrix
(MX-TPS boards don't support the IR pass-through).
8. Connect the video source(s), sink(s) and the desired accessory device(s) to the extend-
ers.
9. Supply that matrix boards with 12V 6,67A DC which have ports with enabled remote
powering.
10. Supply the extenders with 12V 2A DC. If the remote power is disabled on the connected
matrix card's port, local adaptor must be used for the extender.
11. Connect the power cord of the matrix into the outlet and switch on the matrix.
12. Supply the other connected units.
Further Information
The Product brief of this appliance and further information is available at www.lightware.com.
See the Downloads section on the dedicated product page.
Contact Us
sales@lightware.com
+36 1 255 3800
support@lightware.com
+36 1 255 3810
Lightware Visual Engineering LLC.
Peterdy 15, Budapest H-1071, Hungary
Doc. ver.: 2.1
19200118
