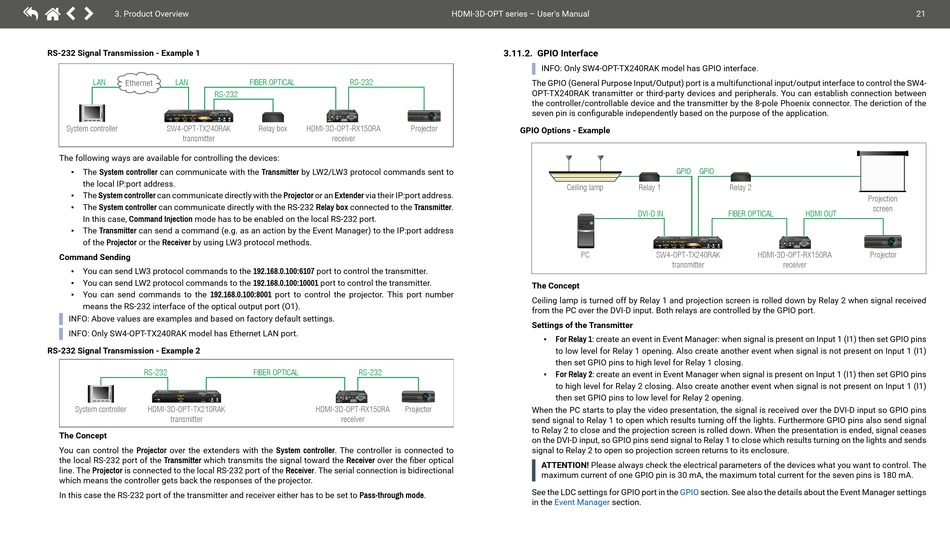

Gpio Interface - Lightware HDMI-3D-OPT-TX210A User Manual


  
3. Product Overview
RS-232 Signal Transmission - Example 1
LAN Ethernet LAN
: :
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO
USB
1 DP IN 2 HDMI1 IN HDMI2 IN 3 4
System controller SW4-OPT-TX240RAK
transmitter
The following ways are available for controlling the devices:
▪ The System controller can communicate with the Transmitter by LW2/LW3 protocol commands sent to
the local IP:port address.
The System controller can communicate directly with the Projector or an Extender via their IP:port address.
▪
▪ The System controller can communicate directly with the RS-232 Relay box connected to the Transmitter.
In this case, Command Injection mode has to be enabled on the local RS-232 port.
The Transmitter can send a command (e.g. as an action by the Event Manager) to the IP:port address
▪
of the Projector or the Receiver by using LW3 protocol methods.
Command Sending
▪ You can send LW3 protocol commands to the 192.168.0.100:6107 port to control the transmitter.
▪ You can send LW2 protocol commands to the 192.168.0.100:10001 port to control the transmitter.
You can send commands to the 192.168.0.100:8001 port to control the projector. This port number
▪
means the RS-232 interface of the optical output port (O1).
INFO: Above values are examples and based on factory default settings.
INFO: Only SW4-OPT-TX240RAK model has Ethernet LAN port.
RS-232 Signal Transmission - Example 2
RS-232
HDCP VIDEO AUDIO AUDIO1
USB
1 HDMI IN AUDIO1 IN 2
System controller HDMI-3D-OPT-TX210RAK
transmitter
The Concept
You can control the Projector over the extenders with the System controller. The controller is connected to
the local RS-232 port of the Transmitter which transmits the signal toward the Receiver over the fiber optical
line. The Projector is connected to the local RS-232 port of the Receiver. The serial connection is bidirectional
which means the controller gets back the responses of the projector.
In this case the RS-232 port of the transmitter and receiver either has to be set to Pass-through mode.
FIBER OPTICAL RS-232
RS-232
VIDEO AUDIO1 Autoselect AUDIO2 USB
CONT. FUNC.
AUDIO HDCP HOTPLUG
VIDEO RST AUDIO SHOW HDMI EMULATE RS-232
DVI-D IN 5 AUDIO1 IN SELECT SELECT ME POWER SIGNAL LASER USB LINK FIBER LINK
Relay box HDMI-3D-OPT-RX150RA
receiver
FIBER OPTICAL RS-232
AUDIO2
USB FUNC.
CONT.
RST HDCP HOTPLUG
AUDIO SHOW POWER SIGNAL HDMI EMULATE USB LINK RS-232
SELECT ME LASER FIBER LINK
HDMI-3D-OPT-RX150RA
receiver
HDMI-3D-OPT series – User's Manual
3.11.2. GPIO Interface
INFO: Only SW4-OPT-TX240RAK model has GPIO interface.
The GPIO (General Purpose Input/Output) port is a multifunctional input/output interface to control the SW4-
OPT-TX240RAK transmitter or third-party devices and peripherals. You can establish connection between
the controller/controllable device and the transmitter by the 8-pole Phoenix connector. The deriction of the
seven pin is configurable independently based on the purpose of the application.
Projector
GPIO Options - Example
Ceiling lamp
PC
The Concept
Ceiling lamp is turned off by Relay 1 and projection screen is rolled down by Relay 2 when signal received
from the PC over the DVI-D input. Both relays are controlled by the GPIO port.
Settings of the Transmitter
▪ For Relay 1: create an event in Event Manager: when signal is present on Input 1 (I1) then set GPIO pins
to low level for Relay 1 opening. Also create another event when signal is not present on Input 1 (I1)
then set GPIO pins to high level for Relay 1 closing.
▪ For Relay 2: create an event in Event Manager when signal is present on Input 1 (I1) then set GPIO pins
to high level for Relay 2 closing. Also create another event when signal is not present on Input 1 (I1)
then set GPIO pins to low level for Relay 2 opening.
Projector When the PC starts to play the video presentation, the signal is received over the DVI-D input so GPIO pins
send signal to Relay 1 to open which results turning off the lights. Furthermore GPIO pins also send signal
to Relay 2 to close and the projection screen is rolled down. When the presentation is ended, signal ceases
on the DVI-D input, so GPIO pins send signal to Relay 1 to close which results turning on the lights and sends
signal to Relay 2 to open so projection screen returns to its enclosure.
ATTENTION! Please always check the electrical parameters of the devices what you want to control. The
maximum current of one GPIO pin is 30 mA, the maximum total current for the seven pins is 180 mA.
See the LDC settings for GPIO port in the
in the Event Manager
GPIO GPIO
Relay 1 Relay 2
DVI-D IN FIBER OPTICAL
:
:
HDCP VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO VIDEO AUDIO1 Autoselect AUDIO2
USB
CONT.
USB AUDIO RST
VIDEO AUDIO SHOW POWER
1 DP IN HDMI1 IN 2 3 HDMI2 IN 4 DVI-D IN 5 AUDIO1 IN SELECT SELECT ME
SW4-OPT-TX240RAK HDMI-3D-OPT-RX150RA
transmitter receiver
GPIO section. See also the details about the Event Manager settings
section.
