Lightware HDMI-3D-OPT-TX210A User Manual
Fiber optical multimedia extender
Hide thumbs
Also See for HDMI-3D-OPT-TX210A:
- User manual (106 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Related Manuals for Lightware HDMI-3D-OPT-TX210A
Summary of Contents for Lightware HDMI-3D-OPT-TX210A
- Page 1 User’s Manual HDMI-3D-OPT-TX210A HDMI-3D-OPT-TX210RAK SW4-OPT-TX240RAK HDMI-3D-OPT-RX150RA Fiber Optical Multimedia Extender...
- Page 2 HDMI-3D-OPT series – User's Manual Important Safety Instructions Waste Electrical & Electronic Equipment Common Safety Symbols WEEE Class II apparatus construction. This marking shown on the product or its literature, Symbol Description The equipment should be operated only from the power source indicates that it should not be disposed with other indicated on the product.
-
Page 3: Hdmi-3D-Opt Series – User's Manual
Item Version Lightware Device Controller (LDC) software 1.18.0b6 ATTENTION! Useful information to perform a successful procedure; Lightware Device Updater (LDU) software 1.5.0b8 it is recommended to read. Controller firmware - Transmitters 1.1.0... -
Page 4: Table Of Contents
HDMI-3D-OPT series – User's Manual Table of Contents 3.8. Video Interface ................18 1. INTRODUCTION ...................7 5. SOFTWARE CONTROL - LIGHTWARE DEVICE CONTROLLER ..27 3.9. The Autoselect Feature .............18 1.1. Description ...................7 5.1. Install and Upgrade ..............27 3.10. USB KVM Function ..............19 1.2. Box Contents ................7 5.2. Establishing the Connection .............27... - Page 5 HDMI-3D-OPT series – User's Manual Table of Contents 7.3. LW3 Commands ................53 7.7.6. Change the Autoselect Mode ............64 6. LW2 PROGRAMMER'S REFERENCE ..........43 7.3.1. Get Command ................. 53 7.7.7. Query the Input Port Priority ............65 6.1. LW2 Protocol Description............43 7.3.2. Set Command .................
- Page 6 HDMI-3D-OPT series – User's Manual Table of Contents 7.12.3. Query the Preferred Resolution of an User EDID ......72 11.8. Factory EDID List ..............96 7.12.4. Emulating an EDID to an Input Port ..........72 11.9. Further Information ..............97 7.12.5. Emulating an EDID to All Input Ports ........... 73 7.12.6. Copy an EDID to User Memory ............
-
Page 7: Introduction
OPT link. The HDMI- 3D-OPT series extenders handles HDCP encryption. Thank You for choosing Lightware’s HDMI-3D-OPT series device. In the first chapter we would like to introduce the device highlighting the most important... -
Page 8: Features
The Event Manager tool takes care of all the necessary control in a smaller configuration by performing predefined actions in response to device status changes. Hence, in a less complex Application Diagram - HDMI-3D-OPT-TX210A environment, there is no need to invest in additional control solutions, which makes the receiver the best choice for numerous applications. - Page 9 1. Introduction HDMI-3D-OPT series – User's Manual Application Diagram - HDMI-3D-OPT-TX210RAK Application Diagram - SW4-OPT-TX240RAK Mouse Mouse Monitor Monitor RS-232 RS-232 Keyboard Keyboard DisplayPort HDMI HDMI RS-232 HDMI-3D-OPT-RX150RA HDMI-3D-OPT-RX150RA HDMI Analog audio 5V DC 5V DC RS-232 Analog audio 5V DC...
-
Page 10: Installation
2.1.2. Under-desk Mounting Kit The UD kit allows a receiver to be easily mounted on any flat surface To mount the transmitter Lightware supplies optional accessories for (e.g. furniture). Only quarter-rack sized units (HDMI-3D-OPT-RX150RA different usage. There are two kinds of mounting kits with similar receiver) can be installed to the kit. -
Page 11: Connecting Steps
2. Installation HDMI-3D-OPT series – User's Manual 2.2. Connecting Steps 2.2.2. Transmitter 2.2.1. Receiver MacBook Blu-ray player MP3 player Media player Local monitor Projector Active speakers Audio amplifier HDMI DVI-D Audio Audio HDMI HDMI RS-232 Audio Audio HDMI-3D-OPT series OPTM OPTM HDMI-3D-OPT-RX150RA... -
Page 12: Product Overview

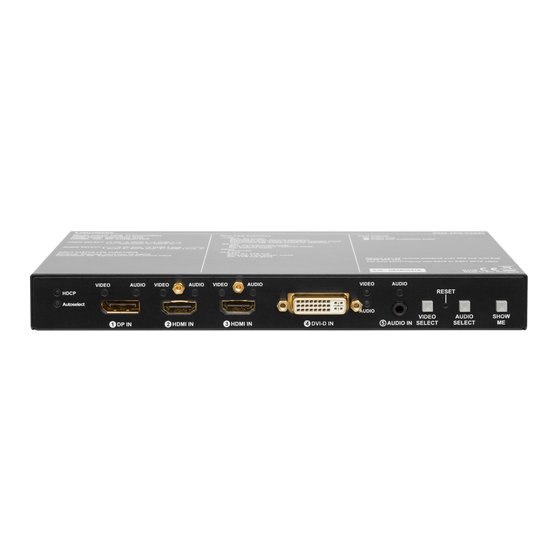

3. Product Overview HDMI-3D-OPT series – User's Manual 3.1. Front View - Transmitter DVI-D input DVI-I connector for DVI-D video and audio. HDMI-3D-OPT-TX210A Audio1 input 3.5 mm Jack connector for asymmetric analog audio input signal. Video Select Button for switching between video button sources. -
Page 13: Rear View - Transmitter
The extenders are built with locking 5V DC connector. Do not forget to Function button Factory default settings and bootload the device using Lightware Device turn the plug clockwise direction before disconnecting the power adaptor. mode can be called using the button. -
Page 14: Hdmi Connector
3. Product Overview HDMI-3D-OPT series – User's Manual 3.4.2. HDMI Connector 3.4.5. SC Fiber Optical Connector 3.4.8. S/PDIF Connector The extenders provide standard 19-pole HDMI connector HDMI-3D-OPT series transmitters and receivers provide HDMI-3D-OPT-RX150RA receiver provides standard RCA for input and output. Always use high-quality HDMI cable multimode SC fiber optical input and output connectors. -
Page 15: Ethernet Connector
The transmitter accepts digital video (DP, HDMI, (adjustable). Voltage ranges for GPIO inputs are the following: and DVI-D) and analog audio sources (Jack and 5-pole Phoenix). The Lightware recommends the termination of LAN cables on the basis of Input voltage [V] Max. current [mA] device can be controlled over LAN, RS-232 (3-pole Phoenix), and USB TIA/EIA T 568 A or TIA/EIA T 568 B standards. -
Page 16: Receiver
De-embedder Embedder HDMI splitter Digital audio/video Fiber optical HDMI 2 in HDMI-3D-OPT-TX210A Digital Digital audio audio Digital audio/video DVI-D in 3:1 digital Ethernet, Digital audio... -
Page 17: Audio Interface
3. Product Overview HDMI-3D-OPT series – User's Manual 3.7.2. Audio Outputs and Modes - Receiver HDMI-3D-OPT-RX150RA The receiver can transmit audio on three types of audio ports: Digital Digital Fiber audio/video audio/video Embedded (HDMI); HDMI ▪ De-embedder optical ▪... -
Page 18: Audio Options - Example
Port with Port with priority and HDTV as well. priority 1 has a 1 is selected valid signal? All related audio settings are available in the Lightware Device Controller software, see the Port Properties Windows section. 3.8. Video Interface Port with... -
Page 19: Usb Kvm Function
TX side which is received on the RX side. The content of the transmitted packets are unknown to the DVI-D IN Lightware infrastructure so the data is not modified by any means during the transmission. HDMI IN FIBER OPTICAL... -
Page 20: Controlling Features
3. Product Overview HDMI-3D-OPT series – User's Manual USB KVM - Example 2 Mode switch Device control (local serial) Fiber optical RS-232 RS-232 / OPT converter USB HUB Keyboard and Mouse FIBER OPTICAL RS-232 / TCP converter Ethernet HDCP VIDEO... -
Page 21: Gpio Interface
3. Product Overview HDMI-3D-OPT series – User's Manual 3.11.2. GPIO Interface RS-232 Signal Transmission - Example 1 INFO: Only SW4-OPT-TX240RAK model has GPIO interface. Ethernet FIBER OPTICAL RS-232 The GPIO (General Purpose Input/Output) port is a multifunctional input/output interface to control the SW4- OPT-TX240RAK transmitter or third-party devices and peripherals. -
Page 22: Usb Control Interface
The EDID memory consists of four parts: The device can be controlled over front panel USB mini B-type connector. This interface only supports LW3 protocol. The interface can be used to establish the connection to Lightware Device Controller software. ▪... -
Page 23: Operation
DP IN HDMI1 IN HDMI2 IN DVI-D IN AUDIO1 IN SELECT SELECT AUDIO VIDEO AUDIO SHOW HDMI-3D-OPT-TX210A DP IN HDMI1 IN HDMI2 IN DVI-D IN AUDIO1 IN SELECT SELECT OFF: USB is disconnected or there is no USB data OFF: The video source is not selected. -
Page 24: Audio Select Button
In this case, the device can be forced into firmware upgrade mode as Step 2. Press and keep pressed the Show Me button for 10 seconds. follows: After 5 seconds front panel LEDs start blinking but keep on HDMI-3D-OPT-TX210A: Embedded Analog audio 1 Analog audio 2 Step 1. -
Page 25: Fiber Link Led
4. Operation HDMI-3D-OPT series – User's Manual 4.4.3. FIBER LINK LED 4.6. Special Functions - Receiver HDMI The input and output signal type is HDMI. 4.6.1. Reset to Factory Default Settings PIN: 2.35mm SC MM LASER APERTURE AUDIO2 IN LIVE GPIO RS-232... -
Page 26: Software Control Modes
The following list contains the software control modes: ▪ Lightware Device Controller (LDC) - you can connect to the device via our control software using Ethernet or RS-232 interface and control or configure the device as you wish. For the details see Software Control - Lightware Device Controller chapter. -
Page 27: Software Control - Lightware Device Controller
If the proxy settings traverse the update process, set the proper Normal install Snapshot install Ethernet (only for SW4-OPT-TX240RAK model) interfaces by the Lightware values then click the OK button. Available for Windows and Mac OS X Available for Windows Device Controller (LDC). -
Page 28: Crosspoint / Port Control Menu
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.3. Crosspoint / Port Control Menu Change IP Address To modify IP address settings quickly it is not necessary to enter the device's settings/network menu, you can set them by clicking the pencil icon beside the IP address. -
Page 29: Port Properties Windows
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.4. Port Properties Windows Port Tiles Available settings: The colors of the port tiles and the displayed icons represent different ▪ Mute/unmute the port; Clicking on the port tile opens the Port properties window. This section states and information: Lock/unlock the port;... -
Page 30: Analog Audio Inputs
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.4.3. Analog Audio Inputs 5.4.4. Video Outputs Available settings: ▪ Mute/unmute the port; Click on the output port to display its properties. The most important information and settings are available from the panel. -
Page 31: Digital Audio Outputs
Frame detector button. Frame detector window Lightware’s Frame Detector function works like a signal analyzer and makes possible to determine the exact video format that is present on the port, thus helps to identify many problems. E.g. actual timing parameters may differ from the expected and this may cause some displays to drop the picture. -
Page 32: No Sync Screen (Test Pattern)
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.5.2. No Sync Screen (Test Pattern) 5.6. USB KVM Using of USB HUBs 5.6.1. USB KVM in the Receiver Test pattern options in the port properties window of the optical... -
Page 33: Edid Menu
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.7. EDID Menu 5.7.1. EDID Operations Advanced EDID Management can be accessed by selecting the EDID menu. There are two panels: left one Changing Emulated EDID contains Source EDIDs, right one contains Destination places where the EDIDs can be emulated or copied. -
Page 34: Edid Summary Window
The software resolves the raw EDID and displays it as readable information to the user. All descriptors can be edited, and saved in an EDID file, or uploaded to the User memory. For more details about EDID Editor please visit our website (www.lightware.com) and download EDID Editor user's manual. -
Page 35: Creating An Edid - Easy Edid Creator
5.8.1. RS-232 Create Lightware introduced a wizard-like interface for fast and easy EDID creation. With Easy EDID Creator it is possible to create custom EDIDs in four simple steps. By clicking on the Create button below Source panel, Easy EDID Creator is opened in a new window. For more details about EDID Editor please visit our website (www.lightware.com) and download EDID Editor user's manual. -
Page 36: Gpio
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.8.2. GPIO 5.8.3. Ethernet GPIO tab in Control menu Ethernet tab in Control menu The GPIO port has 7 pins, which operate at TTL digital signal levels and can be controlled by LDC or protocol Two ports are displayed in the Ethernet settings: Local and CPU. -
Page 37: Event Manager
(e.g. built under the desk). For more details and examples about Event Manager please visit our website (www.lightware.com) and download Event Manager user's guide in the Downloads section. The Event manager can be configured to perform an action if a condition has been detected. E.g. the desired setup is that after a certain type of signal has been detected on I1 port, the port has to be switched to O1. -
Page 38: Create Or Modify An Event
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.9.1. Create or Modify an Event 5.9.2. Special Tools and Accessories Wizard Mode The Name of the Event The wizard mode lists the most common conditions and actions, so the The name of a port can be changed by typing the new name and clicking the Set button. -
Page 39: Clear One Or More Event(S)
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.9.3. Clear One or More Event(s) Setting the Event You can create the Event in the Wizard in few simple Clear an Event steps: Press the Clear button in the Event list or in the header section in the Event editor. -
Page 40: Settings Menu
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.10. Settings Menu 5.10.2. Network 5.10.1. Status Network tab in Settings menu Status tab in Settings menu IP address and DHCP settings can be set on this tab. Always press the Apply settings button to save changes. -
Page 41: System
System tab in Settings menu Backup tab in Settings menu Three functions are available under System tab: Configuration cloning of Lightware LW3 devices is a simple method that eliminates the need to repeatedly ▪ Download system log - saving the file of the device. -
Page 42: Save The Settings Of A Device (Backup)
5. Software Control - Lightware Device Controller HDMI-3D-OPT series – User's Manual 5.11.2. Save the Settings of a Device (Backup) 5.12. Advanced View Window Step 1. Apply the desired settings in the transmitter (port parameters, crosspoint, etc.) Step 2. Select the Settings / Backup tab from the menu. -
Page 43: Lw2 Programmer's Reference
The device can be controlled through a reduced command set of LW2 protocol <id> id number in 1 or 2 digit ASCII format commands to ensure the compatibility with other Lightware products. The supported LW2 commands are described in this chapter. <id²>... -
Page 44: View Firmware Version Of The Cpu
6. LW2 Programmer's Reference HDMI-3D-OPT series – User's Manual 6.2.3. View Firmware Version of the CPU 6.2.8. View Firmware for All Controllers Description: View the CPU firmware revision. Description: Shows the firmware versions of all installed controllers. Format Example Format Example... -
Page 45: A/V Port Settings
6. LW2 Programmer's Reference HDMI-3D-OPT series – User's Manual 6.3. A/V Port Settings 6.3.3. Unmute Output Description: Unmute output <out>. 6.3.1. Switch an Input to the Outputs Following commands with <A/V/AV> option can take effect in multiple layers, according to their parameters. Format Example Depending on ‘A’... -
Page 46: View Connection State On The Output
6. LW2 Programmer's Reference HDMI-3D-OPT series – User's Manual 6.3.6. View Connection State on the Output 6.3.8. Change Video Autoselect Mode Description: Viewing the crosspoint state of the device; showing the input port numbers connected to the Description: The autoselect mode of the video outputs can be changed. outputs. -
Page 47: Change The Video Input Priorities
6. LW2 Programmer's Reference HDMI-3D-OPT series – User's Manual 6.3.10. Change the Video Input Priorities 6.4. Network Configuration Description: The settings of video input priority can be changed as follows. 6.4.1. Query the Current IP Status Format Example Description: IP address settings can be queried as follows. Command {PRIO_V<out>=<in _prio>;... -
Page 48: Set The Gateway Address
6. LW2 Programmer's Reference HDMI-3D-OPT series – User's Manual 6.4.4. Set the Gateway Address Description: Gateway address can be set as follows. Format Example Command {IP_GATEWAY=<gateway_addr>} {ip_gateway=192.168.0.50} Response (IP_GATEWAY=<gateway_addr>)CrLf (IP_GATEWAY=192.168.0.50) Legend: <gateway_addr>: Four decimal octets separated by dots. INFO: The gateway address can be queried by typing the “ip_gateway=?”... -
Page 49: Lw2 Commands - Quick Summary
6. LW2 Programmer's Reference HDMI-3D-OPT series – User's Manual 6.6. LW2 Commands – Quick Summary Network Configuration See in General LW2 Commands Operation Command section See in Operation Command Query the Current IP Status 6.4.1 {IP_STAT=?} section Set the IP Address 6.4.2 {IP_ADDRESS=<type>;IP_ADDRESS}... -
Page 50: Lw3 Programmer's Reference
HDMI-3D-OPT series – User's Manual 7.1. Overview Lightware 3 (LW3) protocol is used by the 25G hybrid matrix, the MODEX family and the new series of Lightware TPS and OPT products, including the HDMI-3D-OPT series extenders. The protocol (LW3) is ASCII- based and all commands are terminated with a carriage return (Cr, ‘\r’) and line feed (Lf, ‘\n’) pair. - Page 51 7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual INFO: All parent nodes must be listed in the path of a node. Example: Following example presents the structure of the tree traversal: The following two ones are read-only properties: pr●/node1/node12.ReadOnlyProperty=value1 node1 Path of the nodes:...
-
Page 52: Escaping
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.1.2. Escaping 7.1.4. Prefix Summary Property values and method parameters can contain characters that are used as control characters in the The following prefixes are defined in the LW3 protocol: protocol. -
Page 53: Lw3 Commands
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.3. LW3 Commands Legend: X can be: 7.3.1. Get Command ‘r’: read-only The ‘GET’ command can be used to get the child nodes, properties and methods of a specific node. It can ‘w’: read-write also be used to get the value of a property. -
Page 54: Set Command
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.3.3. Invocation Example: A method can be invoked with the help of the ‘CALL’ command. ˃ GETALL /EDID Command format: CALL●[nodePath]:[methodName]([parameter]) ˂ n- /EDID/F ˂ n- /EDID/D Response format: ˂... -
Page 55: Manual
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.3.4. Manual Example: For every node, property and method in the tree there is a manual. The manual is a human readable text that ˃ 1103#GET /MEDIA/UART.* describes the syntax and provides a hint for how to use the primitives. ˂... -
Page 56: Notifications About The Changes Of The Properties
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual Get the Active Subscriptions for the Current Connection A Short Example of How to Use the Subscription Command format: OPEN In the following, an example is presented, how the subscriptions are working and how to use them. In the example, there are two independent users controlling the device through two independent connections Response format: o-●[nodePath]... -
Page 57: System Commands
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.5. System Commands 7.5.5. Resetting the Device The transmitter can be restarted – the current connections (LAN, RS-232) will be terminated. 7.5.1. Query the Product Name Command format: CALL●/SYS:reset() The name of the product is a read-only parameter and cannot be modified. Response format: mO●/SYS:reset= Command format:... -
Page 58: Video Port Settings
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.6. Video Port Settings The Most Common Received Port Status Responses INFO: Video port numbering can be found in the Input/Output Port Numbering section. 7.6.1. Query the Status of Source Ports T00AA Unlocked, Command format:... -
Page 59: Query The Status Of Destination Port
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.6.2. Query the Status of Destination Port 7.6.5. Query the Video Autoselect Settings Command format: GET●/MEDIA/VIDEO/XP.DestinationPortStatus Command format: GET●/MEDIA/VIDEO/XP.DestinationPortAutoselect Response format: pr●/MEDIA/VIDEO/XP.DestinationPortStatus=[<O >] Response format: pr●/MEDIA/VIDEO/XP.DestinationPortAutoselect=<O _set> The response contains 5 ASCII characters for each port. The first character indicates the mute/lock state, The response shows the settings of each output one by one. -
Page 60: Query The Input Port Priority
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.6.7. Query the Input Port Priority 7.6.9. Mute an Input Port Command format: GET●/MEDIA/VIDEO/XP.PortPriorityList Command format: CALL●/MEDIA/VIDEO/XP:muteSource(<I >) Response format: pr●/MEDIA/VIDEO/XP.PortPrioirtyList=<O _list> Response format: mO●/MEDIA/VIDEO/XP:muteSource The response shows the priority of each output one after another. The priority number can be from 0 to 31; Example: 0 is the highest- and 30 is the lowest priority. -
Page 61: Unmute Output
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.6.14. Unmute Output 7.6.18. HDCP Setting (Output Port) Command format: CALL●/MEDIA/VIDEO/XP:unmuteDestination(<O >) HDCP capability can be set to Auto/Always on the output ports, thus, non-encrypted content can be transmitted to a non-HDCP compliant display. See more information in the HDCP Management section. -
Page 62: Hdmi Mode Settings (Output Port)
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.6.20. HDMI Mode Settings (Output Port) Clock Source – The Clock Frequency of the Test Pattern Command format: SET●/MEDIA/VIDEO/<O >.TpgClockSource=480|576|EXT Command format: SET●/MEDIA/VIDEO/<O >.HdmiModeSetting=0|1|2 Response format: pw●/MEDIA/VIDEO/<O >.TpgClockSource=480|576|EXT Response format: pw●/MEDIA/VIDEO/<O >.HdmiModeSetting=0|1|2... -
Page 63: Audio Port Settings
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.7. Audio Port Settings The Most Common Received Port Status Responses INFO: Audio port numbering can be found in the Input/Output Port Numbering section. 7.7.1. Query the Status of Source Ports T000A Unlocked, Command format:... -
Page 64: Query The Audio Crosspoint Setting
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.7.3. Query the Audio Crosspoint Setting Example: Command format: GET●/MEDIA/AUDIO/XP.DestinationConnectionList ˃ GET /MEDIA/AUDIO/XP.DestinationPortAutoselect Response format: pr●/MEDIA/AUDIO/XP.DestinationConnectionList=<I > ˂ pr /MEDIA/AUDIO/XP.DestinationPortAutoselect=EL Legend: Explanation: EL: the Autoselect is Enabled on output, selected mode is Last detect. <I >: Audio input port number... -
Page 65: Query The Input Port Priority
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.7.7. Query the Input Port Priority 7.7.9. Mute an Audio Input Command format: GET●/MEDIA/AUDIO/XP.PortPriorityList Command format: CALL●/MEDIA/AUDIO/XP:muteSource(<I >) Response format: pr●/MEDIA/AUDIO/XP.PortPrioirtyList=<O _list> Response format: mO●/MEDIA/AUDIO/XP:muteSource The response shows the priority of each output one after another. The priority number can be from 0 to 31; Example: 0 is the highest- and 30 is the lowest priority. -
Page 66: Unmute Audio Output
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.7.14. Unmute Audio Output Volume (Percent) Command format: SET●/MEDIA/AUDIO/<I >.VolumePercent=<percent> Command format: CALL●/MEDIA/AUDIO/XP:unmuteDestination(<O >) Response format: pw●/MEDIA/AUDIO/<I >.VolumePercent=<percent> Response format: mO●/MEDIA/AUDIO/XP:unmuteDestination Parameters: Example: <level> Sets the output volume (attenuation) between 100% and 0%, in step of 1%. ˃... -
Page 67: Analog Audio Input Level Settings By Steps
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.7.18. Analog Audio Input Level Settings by Steps 7.7.19. Analog Audio Output Level Settings INFO: The following settings are valid only for analog audio input ports of the transmitters. INFO: The following settings are valid only for analog audio output port of the receiver. -
Page 68: Analog Audio Output Level Settings By Steps
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.7.20. Analog Audio Output Level Settings by Steps 7.8.2. Change the DHCP State INFO: The following settings are valid only for analog audio output port of the receiver. Command format: SET●/MANAGEMENT/NETWORK.DhcpEnabled=true|false Response format: pw●/MANAGEMENT/NETWORK.DhcpEnabled=true|false... -
Page 69: Query The Gateway Address
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.8.7. Query the Gateway Address 7.9.2. BAUD Rate Setting Command format: GET●/MANAGEMENT/NETWORK.GatewayAddress Command format: SET●/MEDIA/UART/<P >.Baudrate=0|1|2|3|4|5|6|7 Response format: pr●/MANAGEMENT/NETWORK.GatewayAddress=<gw_address> Response format: pw●/MEDIA/UART/<P >.Baudrate=0|1|2|3|4|5|6|7 Example: Parameters: ˃ GET /MANAGEMENT/NETWORK.GatewayAddress .Baudrate ˂... -
Page 70: Parity Setting
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.9.5. Parity Setting 7.10. Sending Message via the Communication Ports Command format: SET●/MEDIA/UART/<P >.Parity=0|1|2 7.10.1. Sending Message via TCP Port Response format: pw●/MEDIA/UART/<P >.Parity=0|1|2 The device can be used for sending a message to a certain IP:port address. The three different commands allow controlling the connected (third-party) devices. -
Page 71: Sending Message Via Udp Port
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.10.2. Sending Message via UDP Port 7.10.3. Sending Message via an RS-232 Port The device can be used for sending a message to a certain IP:port address. The three different commands The RS-232 ports can be used for sending a command message to a device which can be controlled over allow controlling the connected (third-party) devices. -
Page 72: Gpio Port Configuration
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.11. GPIO Port Configuration 7.12. EDID Management INFO: Use the GET command to query a parameter. 7.12.1. Query the Emulated EDIDs 7.11.1. Set the Direction of a GPIO Pin Command format: GET●/EDID.EdidStatus Command format: SET●/MEDIA/GPIO/P... -
Page 73: Emulating An Edid To All Input Ports
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.12.5. Emulating an EDID to All Input Ports Command format: CALL●/EDID:switchAll(<source>) Response format: mO●/EDID:switchAll Example: ˃ CALL /EDID:switchAll(F47) ˂ mO /EDID:switchAll Legend: <source> Source EDID memory place: Factory / User / Dynamic. 7.12.6. Copy an EDID to User Memory Command format: CALL●/EDID:copy(<D... -
Page 74: Lw3 Commands - Quick Summary
7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual 7.13. LW3 Commands - Quick Summary Operation / Path Change the Input Port Priority System Commands 7.6.8 /MEDIA/VIDEO/XP:setAutoselectionPriority(<input>(<output>):<prio>) Operation / Path Mute an Input Port Query the Product Name 7.6.9 7.5.1 /MEDIA/VIDEO/XP:muteSource(<input>) - Page 75 7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual Audio Port Settings Operation / Path Unlock Output Operation / Path 7.7.16 /MEDIA/AUDIO/XP:unlockDestination(<output>) Query the Status of Source Ports 7.7.1 Analog Audio Input Level Settings /MEDIA/AUDIO/XP.SourcePortStatus 7.7.17 Query the Status of Destination Port /MEDIA/AUDIO/<input>.VolumedB|VolumePercent|Balance|Gain 7.7.2...
- Page 76 7. LW3 Programmer's Reference HDMI-3D-OPT series – User's Manual RS-232 Port Configuration EDID Management Operation / Path Operation / Path Protocol Setting Query the Emulated EDIDs 7.9.1 7.12.1 /MEDIA/UART/<port_no>.ControlProtocol /EDID.EdidStatus BAUD Rate Setting Query the Validity of a Dynamic EDID 7.9.2 7.12.2 /MEDIA/UART/<port_no>.Baudrate...
-
Page 77: Firmware Upgrade
Detailed Instructions Î 8.2. Short Instructions Keeping the Configuration Settings Î Step 1. Get the firmware pack and the Lightware Device Updater (LDU) application. Step 2. Install the LDU application. Step 3. Establish the connection between the computer and the device(s). -
Page 78: Detailed Instructions
The device can be upgraded over USB in case of the USB crosspoint is set to the Composite channel only. Start the Lightware Device Controller (LDC) software and navigate to the Crosspoint menu - USB tab. Check the crosspoint state and set it to the Composite channel. - Page 79 8. Firmware Upgrade HDMI-3D-OPT series – User's Manual Step 1. Select the package. Step 2. Select a device. Click on the Browse button and select the “.lfp” file that will be used for the upgrade. The next step is to select the desired device(s). The available and supported devices are searched for and listed automatically.
- Page 80 8. Firmware Upgrade HDMI-3D-OPT series – User's Manual Firmware Components Step 3. Upgrade the device. The components of the installed and update firmware version for the selected devices are listed on the Click on the Start button to start the upgrade process. following screen.
- Page 81 8. Firmware Upgrade HDMI-3D-OPT series – User's Manual After you confirmed the warnings and clicked on the Start button, the upgrade process starts immediately. Step 4. Finish. If the upgrade of a device is finished, the log can be opened by the View button on the right. When all the tasks are finished, a window appears.
-
Page 82: Keeping The Configuration Settings
In case of any question, please contact support@lightware.com. ATTENTION! In certain cases, the new firmware version requires setting all parameters to set factory defaults. -
Page 83: Troubleshooting
9. Troubleshooting HDMI-3D-OPT series – User's Manual 9.1. Use Case Studies At first, check front panel LEDs and take the necessary steps according to their states. For more information about status, LEDs refer to Rear Panel Status LEDs - Transmitter Front Panel LEDs - Receiver sections. - Page 84 9. Troubleshooting HDMI-3D-OPT series – User's Manual Symptom Root cause Action Refer to Symptom Root cause Action Refer to Audio signal Ethernet (only for SW4-OPT-TX240RAK) No audio is Source audio volume is Check the audio settings of the source. Incorrect IP address is Use dynamic IP address by enabling 4.3.1...
-
Page 85: How To Speed Up The Troubleshooting Process
In the case of Event Manager issue the event file and/or backup file from the Device Controller ▪ software. The more of the above information you can give us the better. Please send these information to the Lightware Support Team (support@lightware.com) to speed up the troubleshooting process. -
Page 86: Technologies
(dynamic EDID emulation). information about additional Detailed Timings, audio capabilities, For example, the Lightware device can be set up to emulate a sink speaker allocation and HDMI capabilities. It is important to know that device, which is connected to one of the outputs. -
Page 87: Hdcp Management
To avoid unnecessary HDCP encryption, Lightware introduced the HDCP enabling/disabling function: the HDCP capability can be disabled in the Lightware device. If HDCP is disabled, the connected source will detect that the sink is not HDCP capable, and turn off authentication. -
Page 88: Pixel Accurate Reclocking
Without reclocking, sparkles, noise, and jaggies appear on the image. Lightware’s sophisticated Pixel Accurate Reclocking technology fixes more problems than general TMDS reclocking. It removes not only intra-pair skew but inter-pair skew as well. The Pixel Accurate... -
Page 89: Appendix
Power connector ......Locking DC connector (2.35 mm pin) Color depth ....Deep color support up to 36 bits, 12 bit/color Mechanical Drawings Î Power consumption (HDMI-3D-OPT-TX210A) .....2,5 W (typ) Audio Cable Wiring Guide Î Color space ...... RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 Power consumption (HDMI-3D-OPT-TX210RAK) ....3 W (typ) -
Page 90: Hdmi-3D-Opt-Rx150Ra Receiver
11. Appendix HDMI-3D-OPT series – User's Manual 11.1.2. HDMI-3D-OPT-RX150RA Receiver 3D support ..................Yes Audio Outputs HDCP 1.4 compliant ................Yes Embedded audio signal General Supported on ............DP, DVI-D, HDMI ports Compliance ..................CE Audio Inputs Supported audio formats ........PCM (up to 192 kHz) EMC compliance (emission/ immunity) ....EN 55032:2015 / EN Embedded audio signal 55024:2011... -
Page 91: Input/Output Port Numbering
Video port nr. Emulated Audio port nr. Video port nr. Emulated Audio port nr. Lightware Device Controller. Port name Port name (LW2 / LW3) EDID memory (LW2 / LW3) (LW2 / LW3) -
Page 92: Factory Default Settings
11. Appendix HDMI-3D-OPT series – User's Manual 11.3. Factory Default Settings Parameter Setting/Value RS-232 settings 11.3.1. Transmitter Control protocol Parameter Setting/Value Baud rate / Databits / Parity / Stopbits 57600 / 8 / No / 1 Crosspoint settings * Operation mode Pass-through Video... -
Page 93: Content Of Backup File
11. Appendix HDMI-3D-OPT series – User's Manual 11.4. Content of Backup File 11.5. Maximum Fiber Cable Extensions The backup file contains numerous settings and parameters saved from the device. When the file is uploaded to a device, the followings will be overwritten: (62.5/125) (50/125) (50/125) -
Page 94: Mechanical Drawings
11. Appendix HDMI-3D-OPT series – User's Manual 11.6. Mechanical Drawings Rear View PIN: 2.35mm SC MM LASER APERTURE AUDIO2 IN LIVE GPIO RS-232 OUTPUT LASER ACTIVE 11.6.1. Transmitter FIBER LINK RS-232 HDMI OUT ETHERNET 1 2 3 4 5 6 7 TX RX 5V DC 1A SW4-OPT-TX240RAK can be seen in the pictures but the dimensions are valid for all the models. -
Page 95: Audio Cable Wiring Guide
11. Appendix HDMI-3D-OPT series – User's Manual 11.7. Audio Cable Wiring Guide From Unbalanced Output to Balanced Input From Balanced Output to Balanced Input Inputs and outputs of audio devices are symmetric or asymmetric. 2 x 6.3 (1/4") TS - Phoenix 2 x RCA - Phoenix Phoenix - 2 x 6.3 (1/4") TRS 2 x 6.3 TRS (1/4") - Phoenix... -
Page 96: Factory Edid List
11. Appendix HDMI-3D-OPT series – User's Manual 11.8. Factory EDID List Mem. Resolution Type Mem. Resolution Type F104 1600 x 1200 @ 50.00 F123 1280 x 800 @ 59.91 Mem. Resolution Type Mem. Resolution Type F105 1600 x 1200 @ 60.00 F124 1440 x... -
Page 97: Further Information
1.4. Product failures from six (6) months to the end of the warranty period will either be repaired or replaced at the discretion of Lightware. If Lightware chooses to replace the product then the replacement will be warranted for the remainder of the original unit’s warranty period.
