3. Product Overview

3
P roduct Overview
The following sections are about the physical structure of the device, input/
output ports and connectors:

Front View - Transmitter

Î
Rear View - Transmitter
Î
Front and Rear View - Receiver
Î
Electrical Connections
Î
Optical Extender Concept
Î
Port Diagrams
Î
Audio Interface
Î
Video Interface
Î
The Autoselect Feature
Î
USB KVM Function
Î
Controlling Features
Î
Further Built-in Features
Î
HDMI-3D-OPT series – User's Manual

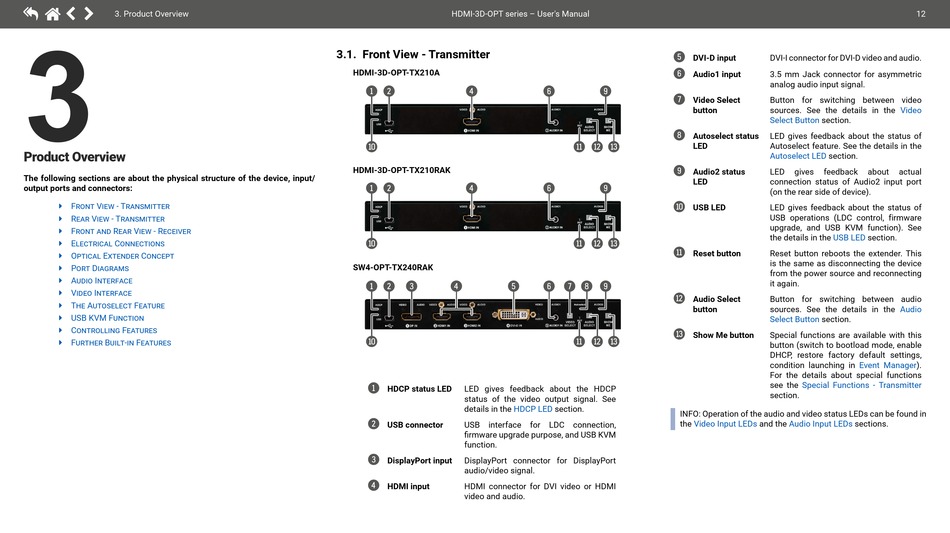

3.1. Front View - Transmitter
HDMI-3D-OPT-TX210A
1 2 4
q
HDMI-3D-OPT-TX210RAK
1 2 4
q
SW4-OPT-TX240RAK
1 2 3 4 5
q
1
HDCP status LED LED gives feedback about the HDCP
status of the video output signal. See
details in the HDCP LED
2 USB connector USB interface for LDC connection,
firmware upgrade purpose, and USB KVM
function.
3
DisplayPort input DisplayPort connector for DisplayPort
audio/video signal.
4
HDMI input HDMI connector for DVI video or HDMI
video and audio.
5 DVI-D input
6
Audio1 input
6 9
7
Video Select
button
8
Autoselect status
w e r LED
9 Audio2 status
LED
6 9
q
USB LED
w e r
w
Reset button
6 7 8 9
e
Audio Select
button
r
Show Me button
w e r
section.
INFO: Operation of the audio and video status LEDs can be found in
the Video Input LEDs
12
DVI-I connector for DVI-D video and audio.
3.5 mm Jack connector for asymmetric
analog audio input signal.
Button for switching between video
sources. See the details in the Video
Select Button section.
LED gives feedback about the status of
Autoselect feature. See the details in the
Autoselect LED section.
LED gives feedback about actual
connection status of Audio2 input port
(on the rear side of device).
LED gives feedback about the status of
USB operations (LDC control, firmware
upgrade, and USB KVM function). See
the details in the USB LED section.
Reset button reboots the extender. This
is the same as disconnecting the device
from the power source and reconnecting
it again.
Button for switching between audio
sources. See the details in the Audio
Select Button section.
Special functions are available with this
button (switch to bootload mode, enable
DHCP, restore factory default settings,
condition launching in Event Manager).
For the details about special functions
see the Special Functions - Transmitter
section.
and the Audio Input LEDs sections.
