Chapter 6 Monitoring the device via the WEB

Monitoring the WWAN link state can be carried out through HTTP. To do this, launch an http client ( web browser) to
the address the DHCP has assigned to the Teldat-3Ge-USB (http://1.1.1.2 in this example).
Enter web monitoring using the access user:password. The factory settings are 'monitor:teldat' .

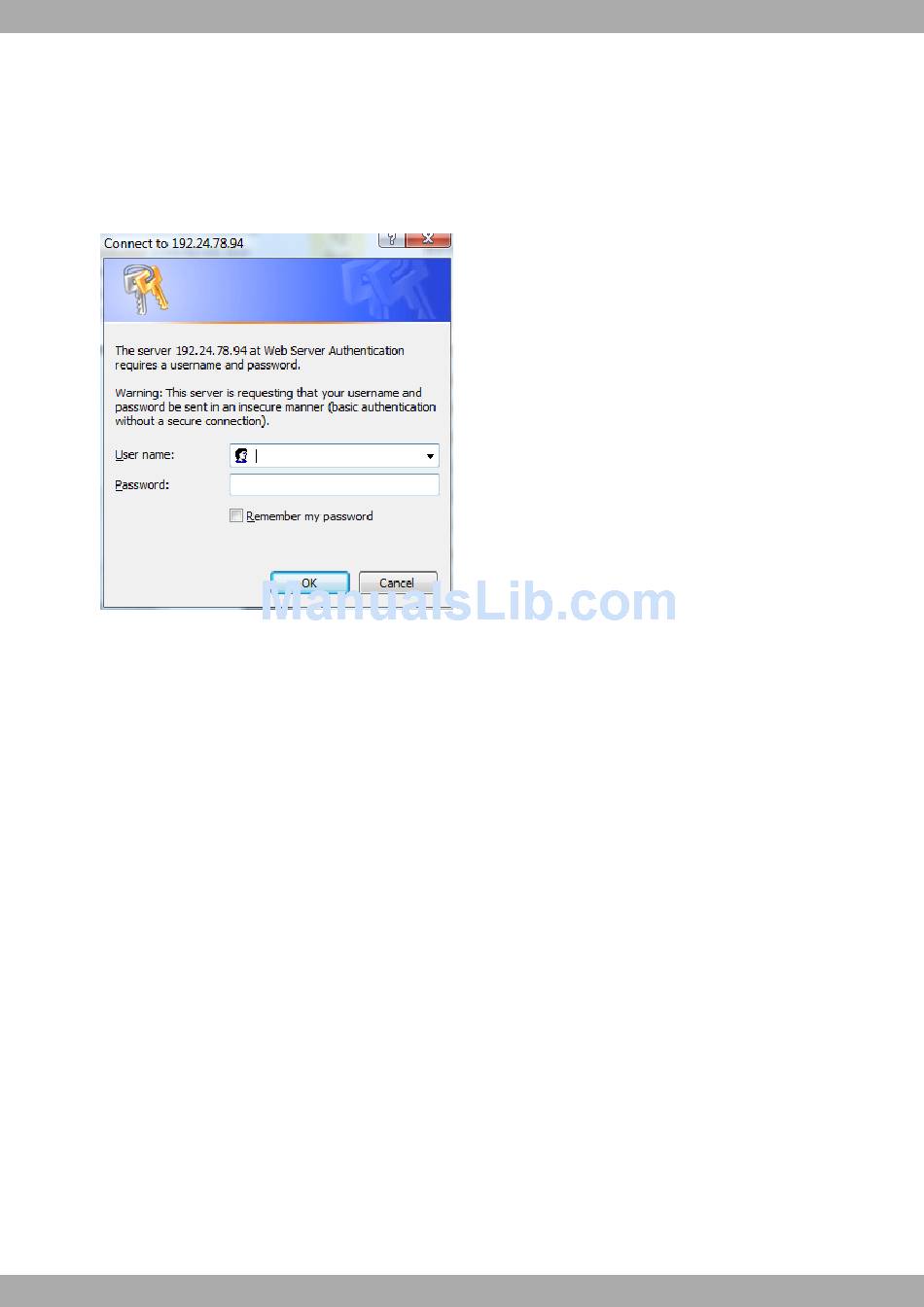

Fig. 14: WEB Authentication
Once you've entered the credentials, the main screen for the device appears where you can access the following in-
formation on the state of the device:
• Information on the Ethernet interface.
• Information on the PPPoE/L2TP sessions.
• Information on the WWAN connection.
• Device configuration.
• Log.
• Device reset.
• Changes in the device time base.
• Device operating history.
