- Page 1 Manual Teldat S.A. Teldat Connect-104 Router Teldat-Dm 493-I Copyright© Version 2.2 Teldat S.A. Teldat Connect-104 Router...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Compliance Information ....... . 2.5.1 Compliance Information for Teldat CONNECT-104 Routers Relevant to the European Union and Other Countries Following EU Directive 1999/5/EC (R&TTE Directive) .... - Page 4 Table of Contents Teldat S.A. Teldat Connect-104 Router...
-
Page 5: I Important Information
Furthermore, it is crucial to avoid any kind of contact between the device components and necklaces, bracelets, rings, ties, etc. Teldat Connect-104 Router... -
Page 6: Chapter 1 Installing The Router

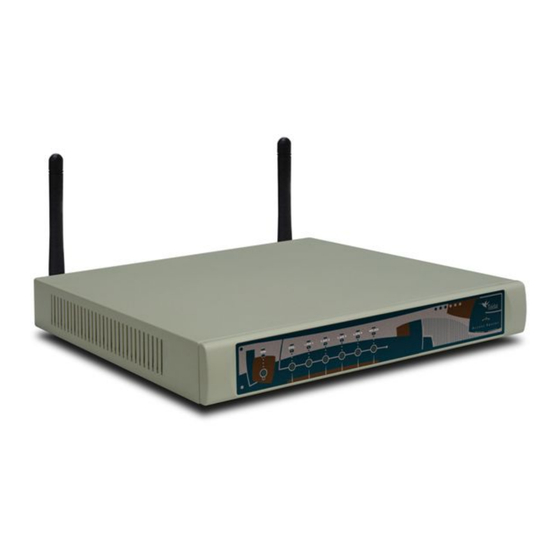

Chapter 1 Installing the Router 1.1 Introduction The Teldat Connect-104 is a general purpose router suitable for a wide range of applications (personal, SOHO/SME and corporate environments). Thanks to its USB interface, where 3G USB modems can be connected, it covers ac- cess needs using ADSL, ADSL2+ (over PSTN) and 3G access. -
Page 7: Recycling And The Environment
1.1.1 Recycling and the Environment Please do not, under any circumstances, throw away any Teldat Connect-104 routers with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them in order to protect the environment against e-waste. -
Page 8: Power Source Connection
Turn the power switch ON. 1.2.1 Power Source Connection The Teldat Connect-104 is powered with an external AC/DC source. To avoid electric shocks, residual current circulation and any other unwanted effects that may disrupt communica- tion, the following is recommended:... -
Page 9: Data Connections
The Teldat Connect-104 is equipped with the following connectors: 1.2.2.1 4 port Ethernet Switch (connectors LAN1..4) The Teldat Connect-104 is equipped with a 410/100BaseT switch, with an automatic MDI/MDIX to connect to the LAN (local area network). Please pay close attention to the labelling to avoid confusing the switch with other port types. - Page 10 ADSL signal. A typical installation with a splitter is shown in Figure 8. Fig. 8: ADSL installation with microfilter Teldat Connect-104 Router...
-
Page 11: Configuring Connections
1.2.2.4 Connecting a 3G USB device (USB connector) The Teldat Connect-104 has a USB HOST 2.0 Type A connector interface, allowing 3G USB modems to be con- nected. This interface can be activated through the purchase of the appropriate software license. - Page 12 1.2.3.2 Configuring using an IP terminal (connectors LAN1..4) The Teldat Connect-104 includes a default configuration that activates if the router has not been previous con- figured, or, if the Procedure to establish the default configuration has been executed (this is explained further on).
-
Page 13: Meaning Of The Leds
The RST pushbutton is located on the rear of the Teldat Connect-104 . It is protected in such a way that it’s only ac- cessible from the outside of the router, and can only be activated using a sharp-pointed object. -
Page 14: Procedure To Ignore The Current Configuration And To Establish The Default Configuration
CPU running TP0 Total memory: 67108864 bytes (64MB) Boot Address 0xbe000000 *** default configuration required *** Board IP address : 172.24.251.14:ffff0000 Host IP address : 172.24.75.193 Gateway IP address Run from flash/host (f/h) Default host run file name Teldat Connect-104 Router... -
Page 15: Procedure To Force Startup In Boot Mode
Fig. 17: The WLAN LED goes out and the DSL lights up • After about 3 seconds, the WLAN LED lights up. This time it’s steady i.e. not blinking (see Figure 18) and the DSL goes out. Release the reset button at this point. Teldat Connect-104 Router... - Page 16 (x seconds) ***” and before the indicated seconds run out. The C.I.T. startup will cancel and the router pauses at the BOOT prompt: CFE>. From this menu, you can access all the BOOT menu commands. This is an example of a Teldat Connect-104 startup: CFE version 1.0.37-102.9-01 for BCM96358 (32bit,SP,BE)
-
Page 17: Procedure To Force Startup In Bios Mode
Default host run file name Default host flash file name Boot delay (0-9 seconds) Boot image (0=latest, 1=previous) : 0 Board Id (0-0) : 96358C1PL Number of MAC Addresses (1-32) Base MAC Address : 00:a0:26:6e:00:58 PSI Size (1-64) KBytes : 24 Teldat Connect-104 Router... -
Page 18: Accessing The Bios Menu From The Console Without Using The Rst Button
You can also access the BIOS menu without using the RST button, provided you can access the router’s local con- sole. Simply access the BOOT menu and, from there, enter the rb command. This is an example of a Teldat Con- nect-104 in BIOS mode startup: CFE>... - Page 19 Set Date and Time c) Change Code to Run d) Change Licence f) Disk menu l) Load from lan r) Reset v) Change version control for loading w) Reset and break into boot 0) Exit >> Teldat Connect-104 Router...
-
Page 20: Appendix
NTP. 2.2 Software Updating The Teldat Connect-104 can be updated to newer versions. Please contact your dealer for further details on new versions. There are several ways to update a Teldat router. For further information, please see the software updating manual. -
Page 21: Lan Connector
RJ45 PIN Tx+(input) Tx-(input) Rx+(output) Rx-(output) 2.3.2 DSL Connector RJ11 DSL RJ11 PIN Joined to 2 Line Line Joined to 3 2.3.3 ANT Connectors Internal RF in/out External 2.3.4 USB Connector USB Type A DATA- DATA+ Shell Shield Teldat Connect-104 Router... -
Page 22: Configuration Connector
Please see the manual on Wireless LAN. CONNECTOR 2 RF SMA female. USB Interface 3G USB MODEMS Please consult the Teldat webpage www.teldat.com to obtain the list of supported 3G USB modems. SPEED The interface complies with the USB 2.0 standard (480 Mbps); the final speed de- pends on the 3G USB modem used. -
Page 23: Compliance Information
European Union and Other Countries Following EU Directive 1999/5/EC (R&TTE Directive) This section contains compliance information for Teldat Connect-104 . This information is relevant to the European Union and other countries that are following EU Directive1999/5/EC. You will find the following information in this section: •... - Page 24 2 Appendix Teldat S.A. • Product Usage Restrictions 2.4 Restrictions • Third-Party Software or Firmware • Technical Documents on www.teldat.com Teldat Connect-104 Router...
- Page 25 2 Appendix Teldat S.A. 2.5.1.1 Declaration of Conformity with Regard to EU Directive 1999/5/EC (R&TTE Directive) Teldat Connect-104 Router...
- Page 26 2.5.1.2 Countries where the equipment is intended to be used 2.5.1.3 CE Marking For the Teldat Connect-104 , the following CE tag and class 2 identifier are added to the equipment. Standards The following standards were applied during the assessment of the product against the...
- Page 27 Later in this paragraph you will find an overview of countries in which additional restrictions or requirements or both are applicable. The requirements for any country may evolve. Teldat recommends that you check with the local authorities for the latest status of their national regulations for 2.4 wireless LANs.
- Page 28 The use of software or firmware not supported/provided by Teldat may cause the equipment to be no longer compliant with the regulatory requirements. 2.5.1.6 Technical Documents on www.teldat.com For further information on how to find Technical documents on the Teldat website, please see our corporate page: tp://www.teldat.com Teldat Connect-104 Router...
-
Page 29: Translated Safety Warnings
2 Appendix Teldat S.A. 2.6 Translated safety warnings Teldat Connect-104 Router...
