3 Configuring in Generic mode
at-3Ge-USB device with Cisco routers, including potential problems and solutions, in section 12
"Practical Cases" . We strongly recommend reading this section.
The Cisco router establishes PPP communications with the WWAN network through the virtual-ppp interface.

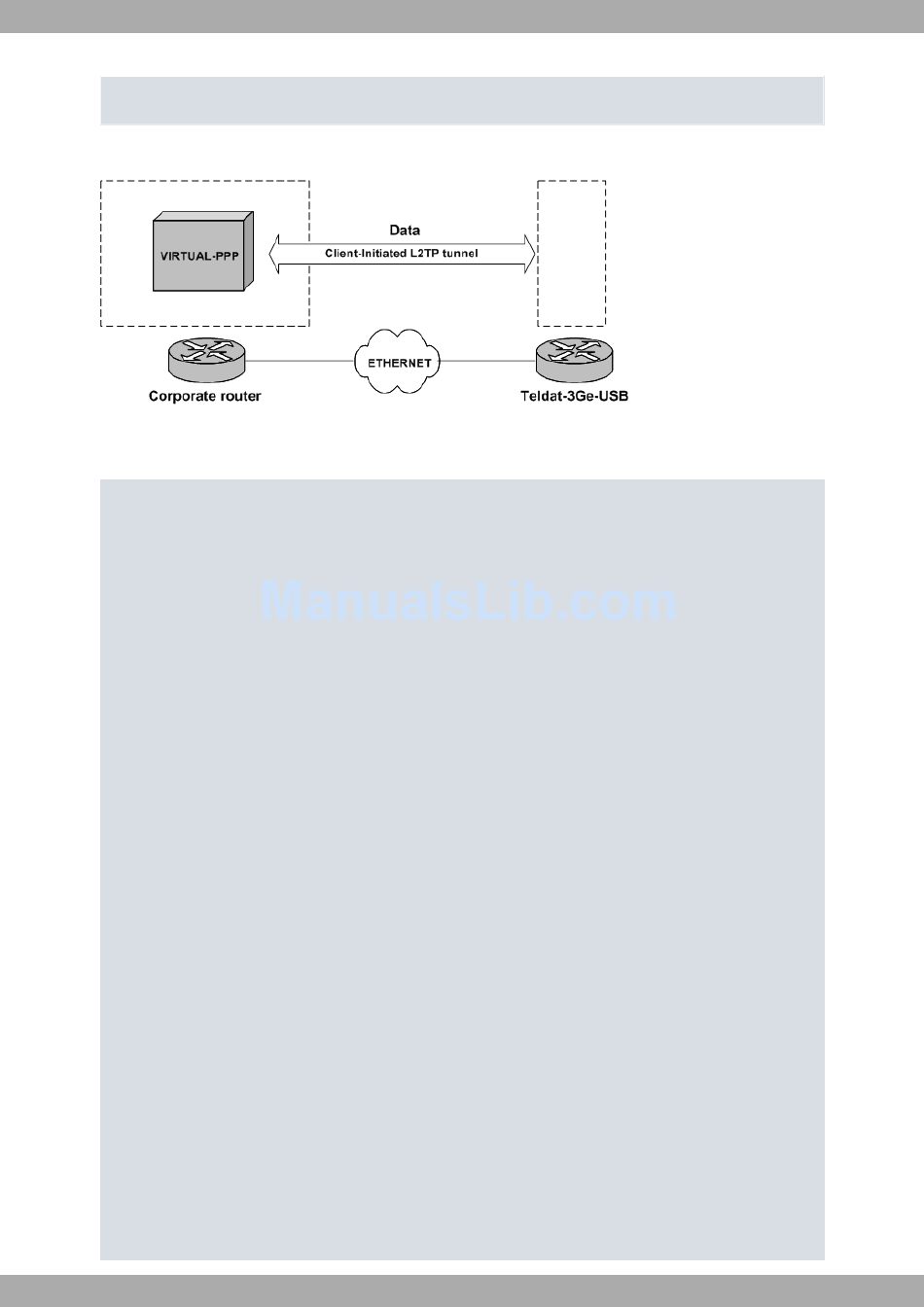

Fig. 10: L2TP tunnel in generic mode with a Cisco router
The following shows a configuration guide for a Cisco router to connect through a Teldat-3Ge-USB.
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname cisco-lac
!
boot-start-marker
boot-end-marker
!
logging buffered 4096 informational
enable secret 5 $1$HZK4$PbeK/a3IWoFJW.6zG9feA/
enable password teldat
!
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
no aaa new-model
ip subnet-zero
ip cef
!
!
!
ip dhcp pool ethant
host 172.24.78.28 255.255.0.0
client-identifier 7465.6c64.6174
bootfile fwethant.img
next-server 172.24.78.29
option 43 ascii antenna&routertype=generic&apn=internet.es&pin=5710
default-router 172.24.78.29
!
!
ip ips po max-events 100
!
!
!
!
!
vpdn enable
!
l2tp-class l2tpclass1
hidden
