Summary of Contents for Teldat Edge Router Atlas-840

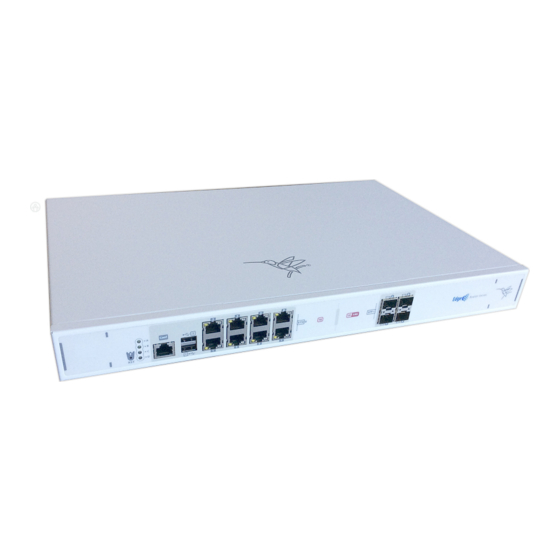

- Page 1 Manual Teldat S.A. Teldat Edge Router Atlas-840 Installation Manual Copyright© Teldat-DM1049-I Version 1.0 02/2023 Teldat S.A. Teldat Edge Router Atlas-840...
- Page 2 This publication is subject to change. Teldat S.A. offers no warranty whatsoever for information contained in this manual. Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv- ery, supply or use of this manual.
-
Page 3: Table Of Contents
Compliance ........13 Manufacturer information ....... Teldat Edge Router Atlas-840... - Page 4 Dimensions and weight ....... . A.5.8 Environmental specifications ......Teldat Edge Router Atlas-840...
-
Page 5: I Related Documents
Related Documents Teldat S.A. I Related Documents Teldat Dm748-I Software Updating Teldat Edge Router Atlas-840... -
Page 6: About This Guide
1.7 Technical support Teldat S.A. offers technical support. Device software can be upgraded on a regular basis for maintenance purposes and in case new features are developed. -
Page 7: Atlas-840
For further information on the LED panel, please see Components on page 4. Teldat Edge Router Atlas-840... -
Page 8: Components And Power Supply
The USB Ports do not provide data connections and are intended for maintenance use only. For more information on the USB connectors, refer to: USB 3.0 connector on page 19 USB 3.0 interface on page 20 Teldat Edge Router Atlas-840... - Page 9 In addition to the LEDs described in the above table, the front panel also has LEDs linked to the Switch Ethernet and SFP/SFP+ interfaces. Ethernet interface LEDs Fig. 4: The table below provides information on the LEDs associated with the Switch Ethernet interface: Switch Ethernet interface LED indicators Teldat Edge Router Atlas-840...
-
Page 10: Rear Panel
The following figures show the rear panel. Rear panel Fig. 6: (Single PSU version) Rear panel Fig. 7: (Dual PSU version) The following table provides information and a description of each component: Rear panel components Item Description Bonding screw for protective earth. Teldat Edge Router Atlas-840... -
Page 11: Installation
The Rack Mounting Kit consists of two brackets, eight screws and six rack screws with cage nuts. To install the kit, follow these steps: • Step 1. Attach the brackets to the router using the screws provided. Use a Phillips PH1 screwdriver to fasten the screws. Teldat Edge Router Atlas-840... - Page 12 • Step 2. Use the screws and cage nuts provided with the router to secure the router in the rack. Warning Installing the router in a rack requires two people. One person should position the router in the rack, while the other secures it using the rack screws. Fig. 9: Rack installation Teldat Edge Router Atlas-840...
-
Page 13: Power Source
All interconnected communication devices should be plugged into THE SAME GROUNDED POWER OUTLET, which should at the same time be of good quality (lower than 10 ohms). We recommend connecting all data devices to the same power source regardless of whether the work- Teldat Edge Router Atlas-840... -
Page 14: Rst Button
The Atlas-840 router incorporates an 8-port 10/100/1000 Base-T Switch with automatic MDI/MDIX to connect to a local area network (LAN). Please pay careful attention to the labeling to avoid mixing up this switch with other port types: Teldat Edge Router Atlas-840... -
Page 15: Sfp/Sfp+ Connections
70ºC (160°F) and be too hot to touch with bare hands. 3.5.3 Connecting for configuration The Atlas-840 has a RJ45 female connector on the front panel (labeled "Aux") that provides access to the device's local console. Conf Connector Fig. 14: Teldat Edge Router Atlas-840... - Page 16 3 Components and Power Supply Teldat S.A. For further information, please see Connecting to the device on page 17. Teldat Edge Router Atlas-840...
-
Page 17: Compliance
Parque Tecnológico de Madrid, 28760 Tres Cantos, Madrid, Spain International Phone +34 91 807 65 65 4.2 Risk identification WARNING: Signal word used to designate a potentially dangerous situation that may cause severe injuries or death if not avoided. Teldat Edge Router Atlas-840... -
Page 18: Safety Warnings
4 Compliance Teldat S.A. 4.3 Safety warnings Teldat Edge Router Atlas-840... -
Page 19: Weee Information
This product is in compliance with the European REACH Regulation (EC) No 1907/2006. The Candidate List of sub- stances of very high concern for Authorization is published by ECHA and periodically updated. Teldat S.A. accounts for substances found in a concentration over 0.1% in weight. A declaration is provided to customers upon request. -
Page 20: Ec Declaration Of Conformity
4 Compliance Teldat S.A. 4.6 EC declaration of conformity English (EN) Hereby, Teldat S.A. declares that the radio equipment type Atlas-840 is in compli- ance with: Directive 2014/30/EU (EMC) Directive 2014/35/EU (LVD) Directive 2011/65/EU (RoHS) of the European Parliament and of the Council. -
Page 21: Appendix A Technical Information
The Atlas-840 router can be updated to new versions. Please contact your dealer for information on new releases. A Teldat router can be updated in several ways. For further information, please see manual: “Teldat- Dm 748-I Soft- ware Updating” . -
Page 22: Connectors
A.4 Connectors A.4.1 Eth RJ45 connector RJ45 LAN RJ45 PIN FE Signals GE Signals BI-DA+ BI-DA+ BI-DA- BI-DA- BI-DB+ BI-DB+ BI-DC+ BI-DC- BI-DB- BI-DB- BI-DD+ BI-DD- A.4.2 Eth SFP/SFP+ connector SFP/SFP+ Standard SFP/SFP+ connector Teldat Edge Router Atlas-840... -
Page 23: Usb 3.0 Connector
GND_DRAIN SSTX- (USB 3.0) SSTX+ (USB 3.0) Shell Shield A.4.4 Configuration connector RJ45 CONFIGURATION RJ45 PIN CONF A.5 Technical specifications A.5.1 Hardware architecture PROCESSORS Freescale LayerScape. MEMORY 4 GByte (DDR4). STORAGE UNIT eMMC Memory (8 GBytes). Teldat Edge Router Atlas-840... -
Page 24: Eth Rj45 Interface
Desktop / chassis for a 1 U high Rack mount enclosure. LENGTH x WIDTH x HEIGHT 264 x 483 x 44 mm. WEIGHT 4 kg. A.5.8 Environmental specifications TEMPERATURE OPERATING NORMALLY: 0 ºC to 40 ºC RELATIVE HUMIDITY On: 5 % to 90 % Teldat Edge Router Atlas-840...
