- Page 1 ATLAS 150 Installation Manual Doc. Dm697-I Ver. 1.0 November, 2006...
-
Page 2: Table Of Contents
Index Chapter. Installing the Router ............... I-1 I - 1. Introduction ................I-1 I - 1.1. Recycling and the Environment........I-2 I - 2. Connections................I-3 I - 2.1. Power Source Connection..........I-3 I - 2.2. Data Connection ............I-4 I - 2.2.1. BRI Connection .............I-6 I - 2.2.2. - Page 3 The equipment must be handled by qualified personnel; contrariwise, the device may be damaged and consequently malfunction. This device contains elements that are sensitive to electrostatic surges and shocks, therefore it is essential when handling the equipment that an antistatic wriststrap is connected to the device chassis and this is placed on an antistatic mat;...
-
Page 4: I - 1. Introduction
ATLAS 150 executes the Teldat CIT (Teldat Internetworking Code - Código de Internetworking de Teldat), which runs over all the Teldat router families and is characterized by a wide variety of functionalities they support and especially orientated to satisfy the access requirements to corporate data networks. -
Page 5: I - 1.1. Recycling And The Environment
ATLAS 150 rear panel I - 1.1. Recycling and the Environment Please do not under any circumstances throw away any ATLAS 150 with normal domestic waste. Ask your local town hall for information on how to correctly dispose of them so protecting the environment against e-waste. Always respect the current laws regarding waste material. -
Page 6: I - 2. Connections
Place the device’s on/off power supply switch in the ON position I - 2.1. Power Source Connection ATLAS 150 router is powered with an external AC/DC source. To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the following is recommended: ATLAS 150 Doc. -
Page 7: I - 2.2. Data Connection
For subsequent connection of the power source to the main electricity supply, use the grounded cable provided for this purpose. I - 2.2. Data Connection ATLAS 150 router has the following connectors available. Some of these connectors may not be available depending on the model: ATLAS 150 Doc. - Page 8 FE 0, FE 1: ATLAS 150 has two female RJ45 connectors in order to connect to the Ethernet 10BaseT / 100BaseT networks through shielded twisted pairs (STP) or unshielded (UTP) cables. Depending on the design of the network, the connection is carried out through a HUB or directly to another terminal device Ethernet interface through a crossover cable (please consult your supplier for information on crossover Ethernet cables).
-
Page 9: I - 2.2.1. Bri Connection
In order to connect, use the cable with RJ45 male connections provided with the device. Passive-Bus terminal resistances ATLAS 150 router has a pushbutton (labeled as “TERM”) in order to connect the BUS-S termination resistances. The placing of these terminal resistances in the correct position is important as contrariwise this can lead to errors in data (or voice), particularly if the “S”... -
Page 10: I - 2.2.2. Wan Or External Modem Connection
Depending on the type of connection established, a different type of cable will be needed. This cable can be supplied by Teldat if you wish. On the inside of the device, there is a slot to insert the driver which could be V.24 DTE/DCE, V.35 DTE/DCE and X.21 DTE/DCE. - Page 11 Connection to the configuration port can be carried out using the RJ45 connectors cable, provided with the device, together with the RJ45 Female-DB9 Female adaptor also provided with the device. Connecting for configuration ATLAS 150 Doc. Dm697-I Rev. 1.0 Installation...
-
Page 12: I - 3. Meaning Of The Leds

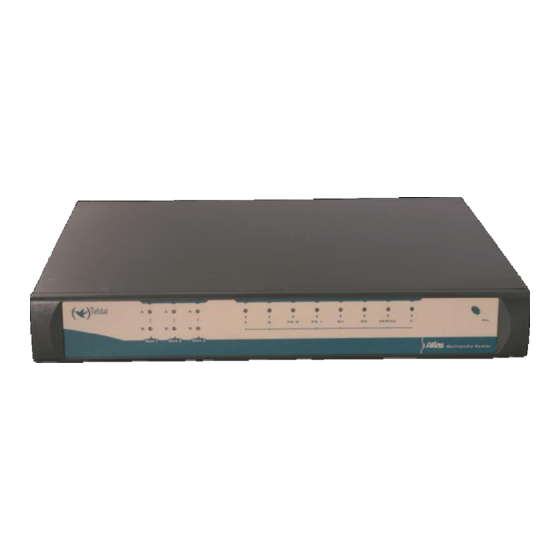

I - 3. Meaning of the LEDs Atlas 150 Router Front Panel Power-on indicator. It lights up when connected to the power. DEVICE OPERATION: OFF: System off. RED: ERROR: Component operating incorrectly. YELLOW: The device has a telnet connection activated and is being remotely accessed. -
Page 13: I - 4. Programming The Microswitches
Please see the manual on Wireless LAN interfaces to check the meaning of the LEDs’ operations. A - B I - 4. Programming the Microswitches ATLAS 150 router has a block of 8 microswitches available, located on the underside of the device, which are used for maintenance and test tasks. In this case, they are only used to load the default configuration. - Page 14 ************************************************** ******************* Router Teldat **************** ************************************************** BOOT CODE VERSION: 01.06 2 2006 10:22:22 gzip Dec 28 2005 09:54:11 P.C.B.: A0 MASK:0C10 Microcode:00E1 START FROM FLASH BIOS CODE DUMP....BIOS DATA DUMP... End of BIOS dump Boot-stack used: 0x00000C38 Boot-stack free: 0x000013C8...
-
Page 15: I - 5. Pmc-Pci Cards
I - 5. PMC-PCI Cards ATLAS 150 features and interfaces can be amplified by inserting PMC boards (PCI mezzanine card). In order to correctly insert the card, please follow the steps given below. I - 5.1. Procedure to install PMC Cards Switch off the device and remove the cables as described in the section on connection in this manual. - Page 16 ************************************************** ******************* Router Teldat **************** ************************************************** BOOT CODE VERSION: 01.06 2 2006 10:22:22 gzip Dec 28 2005 09:54:11 P.C.B.: A0 MASK:0C10 Microcode:00E1 START FROM FLASH BIOS CODE DUMP....BIOS DATA DUMP... End of BIOS dump Boot-stack used: 0x00000C38 Boot-stack free: 0x000013C8...
-
Page 17: Chapter. Appendices
Check that microswitch ‘3’ is in the OFF the application prompt. position. You have forgotten the password to Ignore the configuration through microswitch access the device. ‘5’ as explained in the section on microswitches. Doc. Dm697-I ATLAS 150 - Appendices Rev. 1.0 II-14... -
Page 18: 2. Updating The Software
Please consult your distributor for further details on new releases. There are various ways you can update a Teldat router: please see the manual on updating software for further information. The software required to update Teldat routers is supplied in a format known as distribution. -
Page 19: 3. Connectors
RJ45 ISDN Tx+ (output) Rx+(input) Rx-(input) Tx-(output) II - 3.3. SERIAL Connector NOTE: Cables used for multi-purpose Teldat drivers must not be used in this connector. You must use end-to-end pin-to-pin connector cables Doc. Dm697-I ATLAS 150 Appendices Rev. 1.0... -
Page 20: 3.4. Ant Connectors
TxD (B) TxD (B) TxC (A) IND(A) RxD (B) RxD (B) RxC (A) CLK(A) TxC (B) IND(B) RxC (B) CLK(B) CONT(A) ExTxC ExTxC (A) II - 3.4. ANT Connectors Internal RF in/out External Doc. Dm697-I ATLAS 150 Appendices Rev. 1.0 II-17... -
Page 21: 3.5. Configuration Connectors
II - 3.5. Configuration Connectors RJ45 PIN CONF RJ45 CONFIGURATION Doc. Dm697-I ATLAS 150 Appendices Rev. 1.0 II-18... -
Page 22: 4. Technical Specifications
CONNECTOR DB-25 Female * Depending on the model ISDN Interface* ACCESS Basic 2B+D. SPEED 2 x 64 Kbps (B Channels). CONNECTOR RJ45 female. CABLE Length < 3m * Depending on the model Doc. Dm697-I ATLAS 150 Appendices Rev. 1.0 II-19... -
Page 23: Configuration Interface
LENGTH x WIDTH x HEIGHT 309 x 270 x 44 mm WEIGHT 1,5 Kg Environmental Specifications AMBIENT TEMPERATURE ON: 5º to 45ºC. OFF: -20º to 60ºC. RELATIVE HUMIDITY ON: 8% to 85%. OFF: 5% to 90%. Doc. Dm697-I ATLAS 150 Appendices Rev. 1.0 II-20...
