3.5 Configuring a Teldat router in generic mode

Like the Cisco router, the Teldat router can be connected to the Teldat-3Ge-USB in generic mode implementing a
client-initiated connection, i.e. the L2TP tunnel between the router and the Teldat-3Ge-USB only activates when
there is traffic to transmit to the WWAN network.
In said operating mode,only one tunnel established between the router and the Teldat-3Ge-USB: a single client-
initiated L2TP session and a single PPP session, transmitted over the previous L2TP tunnel. The PPP session ex-
ecutes authentication with the WWAN network and to get an IP address.
Voice backup configuration is the same as the Teldat mode.

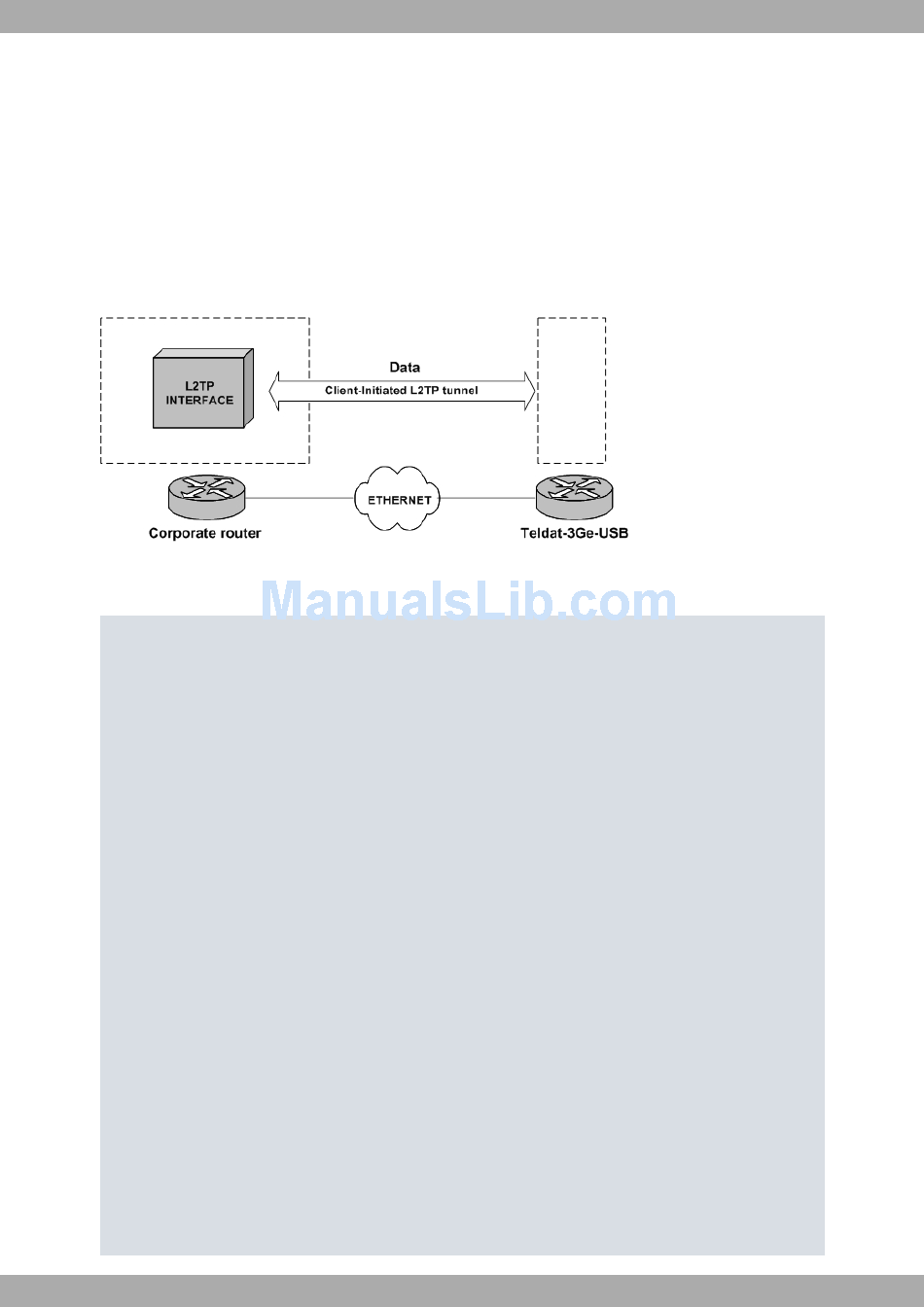

Fig. 13: L2TP tunnel in generic mode with the Teldat router
The following configuration serves as a guide for the generic mode with Teldat router.
log-command-errors
no configuration
set hostname ATLAS
add device ppp 1
add device l2tp 1
network l2tp1
;-- L2TP (virtual) Interface Configuration --
lcp-options pfc
exit
;
network ethernet0/0
; -- Ethernet Interface User Configuration --
ip address 172.24.78.29 255.255.0.0
;
exit
;
network ppp1
; -- Generic PPP User Configuration --
ip address unnumbered
;
ppp
; -- PPP Configuration --
authentication sent-user internet password internet
ipcp local address assigned
no ipcp peer-route
lcp echo-req off
exit
;
base-interface
; -- Base Interface Configuration --
base-interface l2tp1 link
;
exit
;
exit
