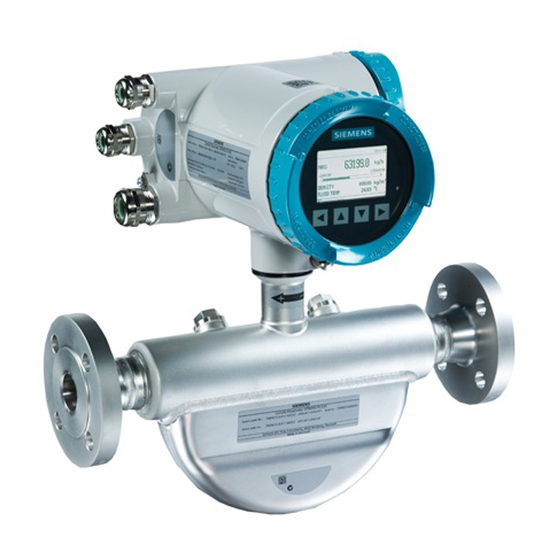

Page 1 SITRANS F Coriolis flowmeters SITRANS FC430 with HART Operating Instructions Edition 05/2015 Answers for industry.
Page 3 Service and maintenance Troubleshooting/FAQs Technical data Spare parts/Accessories Dimensions and weight HMI menu structure HART commands Default settings Zero point adjustment These Operating Instructions apply to Siemens products SITRANS FC430 with order codes commencing 7ME4613, 7ME4623 and 7ME4713 05/2015 A5E03361511-AF...
Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
Page 5: Table Of Contents
Table of contents Introduction ............................. 9 History ............................9 Compatibility ........................... 10 Items supplied ......................... 11 Checking the consignment ..................... 12 Device identification ........................ 12 Further Information ......................... 19 Safety notes ............................21 Laws and directives ........................ 21 Installation in hazardous locations ..................23 Certificates ..........................
Page 6 Table of contents General safety requirements ....................55 Wiring in hazardous locations ....................56 Cable requirements ........................ 56 Safety notes for connecting ....................57 Step 1: Connecting the DSL and the transmitter ..............57 Lack of equipotential bonding ....................61 Step 2: Preparing for the transmitter connections ..............
Page 7 Table of contents Functions ............................131 Process values ........................131 Zero point adjustment ......................134 Low flow cut-off ........................135 Empty tube monitoring ......................135 Process noise damping......................136 Inputs and outputs ........................ 138 8.6.1 Current output ........................139 8.6.2 Pulse output ..........................
Page 8 Table of contents 11.4 Technical support ......................... 183 11.5 Transportation and storage ....................184 11.6 Cleaning ..........................184 11.7 Repair ........................... 184 11.8 Return and disposal ......................185 Troubleshooting/FAQs ......................... 187 12.1 Diagnosing with PDM ......................187 12.2 Troubleshooting sensor-related problems ................187 12.3 How do I copy application setup from one device to another? ..........
Page 9 Table of contents 15.4 Mounting bracket ........................230 HMI menu structure..........................231 Main menu ..........................231 Menu item 2.1: Basic Settings ....................232 Menu item 2.2: Process Values .................... 233 Menu item 2.3: Totalizer ....................... 235 Menu item 2.4: Inputs/Outputs ....................236 Menu item 2.5: Dosing ......................
Page 10 Table of contents Display ..........................331 Maintenance & Diagnostics ....................356 C.10 Communication ........................367 C.11 Security ..........................372 C.12 Language ..........................373 C.13 Sensor dimension dependent default settings ..............373 Zero point adjustment .......................... 379 Glossary .............................. 383 Index ..............................385 FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 11: Introduction
The sales contract contains all obligations on the part of Siemens as well as the complete and solely applicable warranty conditions. Any statements regarding device versions described in the manual do not create new warranties or modify the existing warranty.
Page 12: Compatibility
Introduction 1.2 Compatibility Edition Remarks EDD version FW revision 05/2014 Description of new param- SIMATIC PDM driver 3.00.00-** Compact version: 3.02.01-** • • • eters for spare part re- AMS Device Manager 3.00.00-** Remote version: 2.02.01-** • • placement SITRANS DTM 3.00.00-** •...
Page 13: Items Supplied
1.3 Items supplied Items supplied The device can be delivered as either a compact or a remote system. Compact system • SITRANS FC430 sensor and compact mounted transmitter • Packet of cable glands • Quick Start guide • CD containing software, certificates and...
Page 14: Checking The Consignment
Introduction 1.4 Checking the consignment Note Supplementary information Supplementary product and production specific certificates are included on the SensorFlash ® SD card in the transmitter socket. Note Scope of delivery may vary, depending on version and add-ons. Make sure the scope of delivery and the information on the nameplate correspond to your order and the delivery note.
Page 15 1.5 Device identification With compact versions, the transmitter and sensor product identifications are both given as 'Coriolis flowmeter SITRANS FC430'. With remote versions, the transmitter is identified as 'Coriolis transmitter SITRANS FCT030' and the sensor as 'Coriolis sensor SITRANS FCS400'.
Page 16 The flowmeter serial number is constructed as follows: PPPYMDDxxxxxx where PPP = Production factory (Siemens Flow Instruments: FDK) Y = Production year (for encryption, see below) M = Production month (for encryption, see below) DD = Production date (for encryption, see below)
Page 17 Introduction 1.5 Device identification 1961, 1981, 2001, 2021 1962, 1982, 2002, 2022 1963, 1983, 2003, 2023 1964, 1984, 2004, 2024 1965, 1985, 2005, 2025 1966, 1986, 2006, 2026 1967, 1987, 2007, 2027 1968, 1988, 2008, 2028 1969, 1989, 2009, 2029 Month (M) Code January...
Page 18 Certificates and approvals HART (Page 209)) Figure 1-3 FCT030 specification nameplate example Note Approval identifications Approval certificates and notified body identifications are available for download at www.siemens.com (http://support.automation.siemens.com/WW/view/en/60666565/134200). FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 19 Introduction 1.5 Device identification FCS400 sensor specification nameplate ① Ex approvals Ex approval specifications for the sensor (ATEX example; for details on all approvals refer to Certificates and approvals HART (Page 209)) ② Consult the operating instructions ③ CE mark ④...
Page 20: Custody Transfer
Introduction 1.5 Device identification FCT030 transmitter approval nameplate ① FORCE OIML Custody Transfer evaluation certificate number ② C✓ C-tick logo ③ QR code Product-specific QR code Figure 1-5 FCT030 approval nameplate example FCS400 sensor approval nameplate ① QR code Product-specific QR code ②...
Page 21: Further Information
Product information on the Internet The Operating Instructions are available on the documentation disk shipped with the device, and on the Internet on the Siemens homepage, where further information on the range of SITRANS F flowmeters may also be found: Product information on the internet (http://www.siemens.com/flow)
Page 22 Introduction 1.6 Further Information FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 23: Safety Notes
Safety notes This device left the factory in good working condition. In order to maintain this status and to ensure safe operation of the device, observe these instructions and all the specifications relevant to safety. Observe the information and symbols on the device. Do not remove any information or symbols from the device.
Page 24 Safety notes 2.1 Laws and directives Conformity with European directives The CE marking on the device symbolizes the conformity with the following European directives: Electromagnetic compatibil- Directive of the European Parliament and of the Council on the ity EMC approximation of the laws of the Member States relating to elec- 2004/108/EC tromagnetic compatibility and repealing Directive 89/336/EEC.
Page 25: Installation In Hazardous Locations
Safety notes 2.2 Installation in hazardous locations Installation in hazardous locations WARNING Equipment used in hazardous locations Equipment used in hazardous locations must be Ex-approved for the region of installation and marked accordingly. It is required that the special conditions for safe use provided in the manual and in the Ex certificate are followed! Hazardous area approvals The device is approved for use in hazardous area and has the approvals listed below.
Page 26 Safety notes 2.2 Installation in hazardous locations Ex d e ia [ia GA] IIC T* Ga/Gb Ta = -40°C to ** °C Ex tb [ia Da] IIIC T**°C Db (Ga/Gb: Zone 20 in pipe and Zone 21 in environment) * Temperature class (dependent on the "Maximum Process Temperature") ** Upper ambient temperature (dependent on the "Maximum Process Temperature") IECEx: FCT030 transmitter (can be installed in Zone 1 for gas and Zone 21 for dust):...
Page 27 Safety notes 2.2 Installation in hazardous locations Installation variations Note Requirements for safe installation • Remote sensor FCS400 can be installed in Zone 1, Div. 1 as Intrinsically Safe or Flameproof. • Standard remote installation with FCT030 because the connection is certified Intrinsically Safe.
Page 28 Safety notes 2.2 Installation in hazardous locations Additionally, the maximum surface temperature of the overall device shall be: ● If Tprocess ≤ 85°C, maximum surface temperature = 85°C. ● If Tprocess > 85°C, maximum surface temperature = process temperature. If the equipment is placed in a "ta" environment (Zone 20), the maximum process temperature shall be as follows: Ta (°C) Maximum Process Temperature per Temperature...
Page 29 ● EN/IEC 60079-14 is considered for installation in hazardous areas. Further information and instructions including approval-specific special conditions for safe use in Ex applications can be found in the certificates on the accompanying literature CD and at www.siemens.com/FC430 (www.siemens.com/FC430). WARNING Laying of cables...
Page 30: Certificates
Certificates Certificates are posted on the online support portal (http://www.siemens.com/processinstrumentation/certificates) and can also be found on the documentation disk shipped with the device. Certification documents including calibration report are supplied with each sensor included on the SensorFlash. Material, pressure test, and factory conformance certificates are optional at ordering.
Page 31: Description
Description Applications Measurement of liquids and gases SITRANS F C Coriolis mass flowmeters are designed for measurement of a variety of liquids and gases. The flowmeters are multi-parameter devices offering accurate measurement of massflow, volumeflow, density, temperature and, depending on product variants, fraction, including industry-specific fractions.
Page 32: System Configuration
Description 3.2 System configuration System configuration The Coriolis flowmeter can be used in a number of system configurations: ● as a field mounted transmitter and display supplied only with the necessary auxiliary power ● as part of a complex system environment, for example SIMATIC S7 FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 33: Design
3.3 Design Design Versions The SITRANS FC430 flowmeter uses the Coriolis principle to measure flow and is available in a remote and a compact version. ● Compact version: The SITRANS FC430 is a single mechanical unit where the transmitter is directly mounted on the sensor.
Page 34 Description 3.3 Design Figure 3-3 Remote version - terminated cable Sensor design All primary process measurement of massflow, volumeflow, density and process temperature are made in the DSL/sensor front end. The sensor comprises two parallel bent tubes welded directly to the process connections at each end via a manifold.
Page 35 Description 3.3 Design Sensor overview ① Sensor front end (DSL) (Remote configuration only) ② Lid-lock ③ Cable feed-through (M12 socket or gland) ④ Plug and threaded port for e.g. pressure guard ⑤ Sensor enclosure ⑥ Process connections Figure 3-4 Overview, remote and compact configuration Transmitter design The transmitter reads the primary values from the sensor and calculates derived values.
Page 36 Description 3.3 Design Transmitter exploded view ① ⑫ Display cover Transmitter housing ② ⑬ Local display (HMI) Terminal space ③ ⑭ Connector for HMI Power supply terminal protection cover ④ ⑮ SD card (SensorFlash) Lid for terminal connections ⑤ ⑯ DIP switch (for custody transfer) Wiring tool ⑥...
Page 37: Features
Description 3.4 Features Features ● The SITRANS FC430 can be used as HART slave in operation on SIEMENS SIMATIC S7/PCS7 or third party automation systems ● Available in compact and remote design ● Full graphical local display (HMI) ● SensorFlash (SD card) for memory backup and documentation storage (certificates etc.) ●...
Page 38 – Fraction B % – Frame temperature ● Simulation of all outputs ● Simulation and suppression of alarms ● Comprehensive diagnostics (NAMUR or Siemens standard) for troubleshooting and sensor checking ● Firmware update ● Use in hazardous locations according to specification...
Page 39: Hart Communication Interface
● AMS suite ● 375 Field Communicator The drivers can be downloaded here: Download EDD drivers (http://www.siemens.com/flowdocumentation) Configuration of the HART polling address The HART address can be set either via hardware (DIP switch) or via software (HMI or SIMATIC PDM).
Page 40 Description 3.5 HART Communication Interface DIP switch configuration Table 3- 2 HW polling address Address Switch 1 Switch 2 Switch 3 Switch 4 0: OFF; 1: ON Mapping of measured process variables The assignment of the measured process values to HART device variables (PV - primary variable;...
Page 41 Description 3.5 HART Communication Interface SV, TV, QV: Freely selectable (HMI menu item 4.6) from the list below. ● Measured values for SV, TV and QV – Massflow – Volumeflow – Density – Process media temperature – Corrected volumeflow – Fraction A massflow –...
Page 42: Theory Of Operation
Description 3.6 Theory of operation Theory of operation The Coriolis principle of measurement The flow measurement is based on the Coriolis law of motion. Particles moving in a rotating / oscillating system will resist imposed oscillations in a manner consistent with their mass and velocity (momentum).
Page 43: Installing/Mounting
Installing/mounting Introduction SITRANS F flowmeters with minimum IP67/NEMA 4X enclosure rating are suitable for indoor and outdoor installations. ● Make sure that specifications for rated process pressure (PS) and media temperature (TS) plus ambient temperature that are indicated on the device nameplate / label will not be exceeded.
Page 44: Wall Mounting
Installing/mounting 4.3 Transmitter installation CAUTION Direct sunlight Device damage. The device can overheat or materials become brittle due to UV exposure. • Protect the device from direct sunlight. • Make sure that the maximum permissible ambient temperature is not exceeded. Refer to the information in Chapter "Technical data (Page 196)".
Page 45: Mounting The Transmitter
Installing/mounting 4.3 Transmitter installation 4.3.3 Mounting the transmitter 1. Remove screw from mounting bracket. 2. Mount transmitter on mounting bracket taking care that the flutes on the mating faces are correctly engaged. 3. Firmly tighten screw on mounting bracket (torque: 25 Nm). 4.3.4 Turning the transmitter In a remote configuration, the transmitter can be turned horizontally and tilted vertically.
Page 46 Installing/mounting 4.3 Transmitter installation 3. Carefully rotate transmitter into desired position. 4. Firmly tighten lock screw (torque: 10 Nm). 5. Replace cap onto lock screw (torque: 10 Nm). Vertical rotation 1. Loosen locking cap at end of mounting bracket by three turns. 2.
Page 47: Turning The Local Display
Installing/mounting 4.3 Transmitter installation 4.3.5 Turning the local display The local display can be turned in steps of 30° in order to optimize the viewing angle. 1. Remove lid lock screw of display cover. 2. Remove display cover. 3. Use a small screwdriver or blade to loosen the three retaining clips within the transmitter. 4.
Page 48: Sensor Installation
Installing/mounting 4.4 Sensor installation Sensor installation 4.4.1 Installation safety precautions WARNING High pressure hazard In applications with working pressures/media that can be dangerous to people, surroundings, equipment or others in case of pipe fracture, we recommend that special precautions such as special placement, shielding or installation of a pressure guard or a safety valve are taken when the flowmeter is mounted.
Page 49: Determining A Location
Refer to the information in "Technical data" (Page 201). Note Material compatibility Siemens can provide you with support concerning selection of sensor components wetted by process media. However, you are responsible for the selection of components. Siemens accepts no liability for faults or failures resulting from incompatible materials.
Page 50: Orientation Of The Sensor
Installing/mounting 4.4 Sensor installation Location in the system The optimum location in the system depends on the application: ● Liquid applications Gas or vapor bubbles in the fluid may result in erroneous measurements, particularly in the density measurement. – Do not install the flowmeter at the highest point in the system, where bubbles will be trapped.
Page 51 Orienting the sensor The sensor operates in any orientation. The optimal orientation depends on the process fluid and the process conditions. Siemens recommends orienting the sensor in one of the following ways: 1. Vertical installation with an upwards flow (self-draining)
Page 52 Installing/mounting 4.4 Sensor installation Note Hygienic applications In 3A and EHEDG certified hygienic applications the flowmeter must be installed vertically as shown in 1 above. Installation in a drop line Installation in a drop line is only recommended if a pipeline reduction or orifice with a smaller cross-section can be installed to create back-pressure and prevent the sensor from being partially drained while measuring.
Page 53: Mounting The Sensor
Installing/mounting 4.4 Sensor installation 4.4.4 Mounting the sensor NOTICE Incorrect mounting The device can be damaged, destroyed, or its functionality impaired through improper mounting. • Before installing ensure there is no visible damage to the device. • Make sure that process connectors are clean, and suitable gaskets and glands are used.
Page 54 Installing/mounting 4.4 Sensor installation Avoid vibrations ● Make sure that any valves or pumps upstream of the sensor do not cavitate and do not send vibrations into the sensor. ● Decouple vibrating pipeline from the flow sensor using flexible tube or couplings. Figure 4-7 Non-flexible pipes not recommended in vibrating environment Figure 4-8...
Page 55: Hydrostatic Testing
The selection of pressure guard solution is the responsibility of the user, however Siemens recommends the following forms of pressure guard: ● A pressure switch screwed directly or piped into one of the purge ports and connected to an automatic shut-off valve will disable pressurized supply to the meter.
Page 56 Installing/mounting 4.4 Sensor installation The pressure switch and relief valve set point should be 2-3 bar gauge. The pressure switch should be rated to withstand the full process pressure and temperature for a short time without rupture. CAUTION Drain flow Ensure the drain flow is safely contained away from personnel and other plant or equipment.
Page 57: Connecting
Connecting This chapter describes how to wire up the device. The following steps must be carried out: ● Step 1: Connecting the DSL and the transmitter (Page 57) (only remote version) ● Step 2: Preparing for the transmitter connections (Page 61) ●...
Page 58: Wiring In Hazardous Locations
Cable specifications ● Only use cables with at least the same degree of protection as the sensor to install the sensor. It is recommended to use cables supplied by Siemens A/S, Flow Instruments: – blue cables for installation in hazardous areas –...
Page 59: Safety Notes For Connecting
Connecting 5.4 Safety notes for connecting Note Output cables If long cables are used in noisy environments, it is recommended to use screened cables. WARNING Unprotected cable ends Danger of explosion through unprotected cable ends in hazardous areas. • Protect unused cable ends in accordance with IEC/EN 60079-14. Safety notes for connecting Use in hazardous locations Before accessing the sensor terminal space and application terminal space check that:...
Page 60 Connecting 5.5 Step 1: Connecting the DSL and the transmitter The cable screen is physically and electrically terminated within the body of the plug. Take care when handling the cable and passing it through cable ducting that the plug is not subjected to excessive tension (pulling) as the internal connections may be disengaged.
Page 61 Connecting 5.5 Step 1: Connecting the DSL and the transmitter 5. Connect wires to terminals according to list below. Terminal number Description Wire color (Siemens) +15 VDC Orange 0 VDC Yellow White Blue 6. Assemble and tighten cable gland 7. Remove O-ring from lid.
Page 62 Connecting 5.5 Step 1: Connecting the DSL and the transmitter 8. Connect wires to terminals according to list below. Terminal number Description Wire color (Siemens cable) +15 VDC Orange 0 VDC Yellow White Blue 9. Ensure the DIP switches are all set to OFF.
Page 63: Lack Of Equipotential Bonding
Connecting 5.6 Lack of equipotential bonding WARNING Insufficient isolation of non-intrinsically safe and intrinsically safe circuits Danger of explosion in hazardous areas. • When connecting intrinsically safe and non-intrinsically safe circuits ensure that isolation is carried out properly in accordance with IEC/EN 60079-14. •...
Page 64 Connecting 5.7 Step 2: Preparing for the transmitter connections 1. Remove blind plugs where required and mount cable glands. ① Input/output connection (channels 2 to 4) ② Power supply connection ③ Current output/HART connection (channel 1) 2. Remove lid lock screw for terminal connections lid. 3.
Page 65 Connecting 5.7 Step 2: Preparing for the transmitter connections ① Power supply Terminal 1 connections Terminal 2 Terminal 3 ② Key to symbols Configured as active input/output Configured as passive input/output Connected as normally open contact Connected as normally closed contact ③...
Page 66 Connecting 5.7 Step 2: Preparing for the transmitter connections Line Neutral Ground Used in current output active configuration Used in current output active and passive configuration Used in current output passive configuration Not used IO2+ Signal output channel 2 positive Signal output channel 2 common (10) IO2-...
Page 67 Connecting 5.7 Step 2: Preparing for the transmitter connections WARNING Unsuitable cables and/or cable glands Danger of explosion in hazardous areas. • Only use suitable cables and cable glands complying with the requirements specified in Chapter "Technical data (Page 205)". •...
Page 68: Step 3: Connecting The Power Supply
Connecting 5.8 Step 3: Connecting the power supply Figure 5-4 Wiring tool location 1. Insert wiring tool hook into receptor slot. 2. Press wiring tool wedge into top slot to spread clamp plates. 3. Insert wire. 4. Release wiring tool. Step 3: Connecting the power supply 1.
Page 69 Connecting 5.8 Step 3: Connecting the power supply 3. Push cable through open gland and cable path. 4. Restore ferrule and tighten cap to lightly hold cable in place. 5. Connect ground to terminal and power to terminals L/+ and N/- using wiring tool in the manner shown below at right.
Page 70: Step 4A: Connecting The Current Output Hart (Channel 1)
Connecting 5.9 Step 4a: Connecting the current output HART (channel 1) 6. Close and latch power supply terminal protection cover. 7. Tighten cable gland. WARNING Missing PE/ground connection Danger of electric shock. Ensure the PE/ground connection is secure before applying power.
Page 71: Step 4B: Connecting The Inputs And Outputs (Channels 2 To 4)
Connecting 5.10 Step 4b: Connecting the inputs and outputs (channels 2 to 4) 5. Connect wires to terminals using wiring tool. Active current output Passive current output ⑤ ⑥ ④ ⑤ Active current output Passive current output 6. Tighten cable gland. Note Active or passive current output is preselected at ordering.
Page 72 Connecting 5.10 Step 4b: Connecting the inputs and outputs (channels 2 to 4) 5. Connect wires to terminals using wiring tool. Active current output Passive current output ⑫ ⑬ IO[3] (common) IO[3]- (passive) ⑪ ⑫ IO[3]+ (active) IO[3] (common) Termination example for channel 3 6.
Page 73 Connecting 5.10 Step 4b: Connecting the inputs and outputs (channels 2 to 4) Factory configu- Software configuration Channel 2 Channel 3, ration Channel 4 Signal input Start Dosing Stop Dosing Active Reset Totalizer 1 Reset Totalizer 2 Reset Totalizer 3 Reset All Totalizers Start Zero Point Adjust- ment...
Page 74: Step 5: Finishing The Transmitter Connection
Connecting 5.11 Step 5: Finishing the transmitter connection Load [Ω] Voltage (active) [V] Voltage (passive) [V] 5000 20.42 21.80 10000 21.13 21.85 20000 21.51 21.88 50000 21.74 21.89 100000 21.82 21.90 Note Load Signal output: < 500 Ω at 14 to 24 VDC (active), 14 to 30 VDC (passive) Relay output: 30 VAC/VDC, 100 mA Passive signal input: 15 to 30 VDC, 2 to 15 mA 5.11...
Page 75: Commissioning
Commissioning General requirements Before commissioning it must be checked that: ● The device has been installed and connected in accordance with the guidelines provided in Installing/mounting (Page 41) and Connecting (Page 55). ● Device installed in hazardous area meets the requirements described in Installation in hazardous locations (Page 23).
Page 76: Commissioning Via Hmi
Commissioning 6.3 Commissioning via HMI WARNING Commissioning and operation with pending error If an error message appears, correct operation in the process is no longer guaranteed. • Check the gravity of the error. • Correct the error. • If the error still exists: –...
Page 77: Quick Commissioning Wizard (Menu Item 1.1)
Commissioning 6.3 Commissioning via HMI View Text Options/description Language Set the language: English, Deutsch, Français, Italiano, Español, Português, РУССКИЙ, 汉语, Polski, Dansk, Svenska, Suomeksi "About" Information about the Quick Commissioning wizard Set Date and Time The set date and time (real time clock) is used for all time stamps of logged information Quick Commissioning The Quick Commissioning wizard comprises the most important...
Page 78: Zero Point Adjustment
Commissioning 6.3 Commissioning via HMI 6.3.3 Zero point adjustment The flowmeter system is optimized through a zero point adjustment which is performed via the Zero Point Adjustment wizard. Performing a zero point adjustment CAUTION Gas application Zero point adjusting the device is only recommended for liquid applications. 1.
Page 79: Zero Point Adjustment Wizard (Menu Item 1.2)
Commissioning 6.3 Commissioning via HMI 6.3.4 Zero Point Adjustment wizard (menu item 1.2) The flowmeter system is optimized through an automatic zero point adjustment. Before you start the zero point adjustment flush the pipe and keep it filled at an absolute flowrate of zero.
Page 80: Wizards
Commissioning 6.3 Commissioning via HMI View Text Options/Description Clear alarms "Clear Alarms" and alarm list are only shown if alarms are present. Select zero point ad- Auto, Manual justment type Configure Configure duration and limits Auto Adjust Zero point Cancel, Start (progress, result, standard deviation and offset) In progress The progress bar is shown Result...
Page 81 Commissioning 6.3 Commissioning via HMI ● Gas Application ● Pulsating Flow ● Dosing Application Use the keys to highlight the desired HMI wizard and press right key to enter the wizard. The first view shows a short description of which settings can be done. Key operation Basic navigation in the HMI wizards is shown in the graphics.
Page 82: Process Values Wizard (Menu Item 1.3)
Commissioning 6.3 Commissioning via HMI 6.3.5.1 Process Values wizard (menu item 1.3) The Process Values wizard will guide you through setup of process values for your application. The prioritizing of the process values automatically configures the measurement views on the display. The process value configured as 1st Process Value is set as first display view.
Page 83: Inputs/Outputs Wizard (Menu Item 1.4)
Commissioning 6.3 Commissioning via HMI View Text Options/Description Prioritize Prioritize the process values 4-13 Configure Configure the process values (unit, low flow cut-off, limits, and hysteresis) 14-17 Totalizer Configure totalizers (if activated in operating view, it is possible to reset totalizer without password access) 6.3.5.2 Inputs/Outputs wizard (menu item 1.4) The Input/Output wizard will guide you through setup of inputs and outputs on channels 1 to...
Page 84 Commissioning 6.3 Commissioning via HMI View Text Options/Description Current Output Configure current output basic settings Scaling Configure current mode, upper and lower scaling Fail Safe Mode / Fail Select current output reaction in case of a fault Safe Value *: When pressing you will return to view "Select Channel".
Page 85 Commissioning 6.3 Commissioning via HMI FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 86 Commissioning 6.3 Commissioning via HMI Current/Frequency/Pulse View Text Options/Description Operation Mode Select the output functionality Output function Configure the output basic settings Scaling Configure the output scaling 9-10 Fail Safe Mode / Fail Safe Select the signal output reaction in case of a fault Value Status View...
Page 87: Gas Application Wizard (Menu Item 1.5)
Commissioning 6.3 Commissioning via HMI Signal input - channels 3 to 4 The Signal Input can be configured to either Dosing control, Totalizer reset, Remote zero adjust or Force/Freeze output(s). View Text Options/Description Operation Mode Select the signal input functionality Delay Time Set the signal input delay time Polarity...
Page 88: Pulsating Flow Wizard (Menu Item 1.6)
Commissioning 6.3 Commissioning via HMI 6.3.5.4 Pulsating Flow wizard (menu item 1.6) The Pulsating Flow wizard will guide you through configuration of essential parameters for applications with pulsating flow. As default the Totalizer will be set to Balanced, the Process Noise Damping is set to 4 and the Low Flow Cut-Off value will be raised.
Page 89: Dosing Application Wizard (Menu Item 1.7)
Commissioning 6.3 Commissioning via HMI 6.3.5.5 Dosing Application wizard (menu item 1.7) The Dosing Application wizard will guide you through configuration of each recipe for dosing control including valve control (discrete/analog) and fault handling. The valve control is done using channels 2, 3 and 4. FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 90: Commissioning With Pdm
This chapter describes how to commission the device via SIMATIC PDM. 6.4.1 Operating via SIMATIC PDM SIMATIC PDM is a software package used to commission and maintain process devices. Further information can be found at: www.siemens.com/simatic-pdm (www.siemens.com/simatic-pdm). 6.4.2 Functions in SIMATIC PDM Note - For a complete list of parameters, see HMI menu structure (Page 231).
Page 91: Initial Setup
Updating the Electronic Device Description (EDD) You can locate the EDD in Device Catalog, under "Sensors/Flow/Coriolis/Siemens AG/SITRANS FC430". Check the product page of our website at: www.siemens.com/FC430, under Downloads, to make sure you have the latest version of SIMATIC PDM, the most recent Service Pack (SP) and the most recent hot fix (HF).
Page 92 Commissioning 6.4 Commissioning with PDM Installing a new EDD: 1. Download the EDD from the product page of our website at: www.siemens.com/FC430 and save the files to your computer. 2. Extract the zipped file to an easily accessed location. 3. Launch "SIMATIC PDM – Manage Device Catalog", browse to the unzipped EDD file and select it.
Page 93: Adding Device To Communication Network
Your PC is now added to the HART network, for example "My computer". – Right click on "HART Modem" and select "Insert New Object"->"HART Device". – Click on "Assign", assign the HART device to FC430 (Sensors->Flow->Coriolis- >SIEMENS AG->SITRANS FC430 Dev Rev 2) and click "ok". Figure 6-2 Assigning HART device to network 2.
Page 94: Configuring A New Device
Commissioning 6.4 Commissioning with PDM 6.4.5 Configuring a new device Note Clicking on "Cancel" during an upload from device to SIMATIC PDM will result in some parameters NOT being updated. 1. Check that you have the most recent EDD, and if necessary update it, see "Updating the Electronic Device Description (EDD)"...
Page 95 Commissioning 6.4 Commissioning with PDM Step 1 - Identification Note The layout of the dialog boxes shown may vary according to the resolution setting for your computer monitor. The recommended resolution is 1280 x 960. FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 96 Commissioning 6.4 Commissioning with PDM 1. Click on "Read Data from Device" to upload Quick Start parameter settings from the device to the PC/PG and ensure PDM is synchronized with the device. 2. If required, change the language for the local user interface. 3.
Page 97 Commissioning 6.4 Commissioning with PDM Step 2 - Sensor orientation Select the application type (gas or liquid) and sensor orientation, then click on "Next". Figure 6-5 Quick start step 2 FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 98 Commissioning 6.4 Commissioning with PDM Step 3 - Sensor connection (remote version only) A remote system can be ordered with M12 connection or with terminated cable (for example conduit connections) Figure 6-6 Quick start step 3 FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 99 Commissioning 6.4 Commissioning with PDM Step 4 - Mapping of variables Set the process values (PV, SV, TV, and QV) to be used in the HART system integration and click on "Next". Figure 6-7 Quick start step 4 FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 100 Commissioning 6.4 Commissioning with PDM Step 5 - Measurement conditions Configure the measurement conditions for the selected process variables. Change "Flow Direction" if necessary. Figure 6-8 Quick start step 5 Reduce the sensitivity of the flow measurement signal by clicking on the "Pulsating Flow" button and selecting the appropriate filter.
Page 101 Commissioning 6.4 Commissioning with PDM Figure 6-9 Filter setting selection Step 6 - I/O configuration Configure the current output (channel 1). The process value is selected as PV in step 4 "Mapping of variables". Configure channels 2, 3 and 4, if ordered. For each channel: Select the "Operation Mode" and click on the button below for detailed configuration.
Page 102: Wizard - Zero Point Adjustment
Commissioning 6.4 Commissioning with PDM Step 7 - Summary Check parameter settings, and click on "Back" to return and revise values, "Apply" to save settings offline, or "Apply and Transfer" to save settings offline and transfer them to the device. Figure 6-11 Quick start step 7 The message "Quick Start was successful"...
Page 103 Commissioning 6.4 Commissioning with PDM It is recommended to use the default settings. Change the "Zero Point Adjustments Settings", if necessary. Click on "Auto Zero Point Adjustment". FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 104: Changing Parameter Settings Using Simatic Pdm
Commissioning 6.4 Commissioning with PDM 6.4.8 Changing parameter settings using SIMATIC PDM Note For a complete list of parameters, see the HMI menu structure (Page 231). Clicking on "Cancel" during an upload from device to SIMATIC PDM will result in some parameters NOT being updated.
Page 105: Parameters Accessed Via Drop-Down Menus
Commissioning 6.4 Commissioning with PDM Many parameters are accessed via the online menus in PDM, see "Parameters accessed via drop-down menus" for the others. 1. Launch SIMATIC PDM, connect to the appropriate device and upload data. 2. Adjust parameter values in the parameter value field then click on "Enter". The status fields read "Changed".
Page 106 Commissioning 6.4 Commissioning with PDM Menu Description Communication Path Shows the communication interface (HART modem) Download to Device Downloads all writable parameters to the device Upload to PC/PG Uploads all parameters from the device to the parameter table Update Diagnostic Status Reads current diagnostic status from the device and updates the diagnostic status icon Set Address...
Page 107: Zero Point Adjustment
Commissioning 6.4 Commissioning with PDM 6.4.10 Zero point adjustment The flowmeter system is optimized through a zero point adjustment. Performing a zero point adjustment Note Preconditions Before a zero point adjustment is initiated, the pipe must be flushed, filled and at an absolute flowrate of zero preferably also at operating pressure and temperature.
Page 108 Commissioning 6.4 Commissioning with PDM 4. Select Device → Wizard → Zero Point Adjustment... from the main menu of SIMATIC PDM to perform an automatic zero point adjustment. 5. Click Next and then Auto Zero Point Adjust. 6. During the process a progress bar is visible. 7.
Page 109: Process Variables
Commissioning 6.4 Commissioning with PDM 6.4.11 Process variables 1. To compare outputs in real time select "View->Process variables" to see all process values, totalizers and loop current. 2. Verify that the process values show the expected values. Figure 6-13 View process variables Trend view Open the menu "View->Process variables"...
Page 110 Commissioning 6.4 Commissioning with PDM FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 111: Operating
Operating A considerable amount of information regarding the operation and status of the flowmeter is available to the user via the local display (HMI ) and SIMATIC PDM. Local display (HMI) Operation via local user interface The device is operated with the capacitive proximity keypad on the local user interface. The elements are actuated by touching the glass panel above the appropriate key.
Page 112: Display View Structure
Operating 7.1 Local display (HMI) Note HMI timeout If no key is pressed for 10 minutes, the display switches to show operation view. Note Operation does not require opening of the device. This means that the high degree of protection of IP67 and safety in hazardous locations are guaranteed at all times. Note Motor fuel dispensers The Local User Interface is not suitable as an indication device for motor fuel dispensers.
Page 113 Operating 7.1 Local display (HMI) Navigating the operation view Browse the operation views and menu items using the control buttons as follows: Table 7- 1 Measurement view Function No functionality Go to the previous menu in the operation view Go to the next menu in the operation view Enter the navigation view Table 7- 2 Alarm view level 1...
Page 114 Operating 7.1 Local display (HMI) Table 7- 5 Operating view level 1 Function No functionality Previous view Next view Enter operating view level 2 Table 7- 6 Operating view level 2 Function Enter operating view level 1 Select action to perform Select action to perform Perform selected action Table 7- 7...
Page 115 Operating 7.1 Local display (HMI) ① Measurement view ② Acccess level view ③ Measurement view ④ Measurement view ⑤ Alarm view - level 1 ⑥ Alarm view - level 2 ⑦ Alarm view - level 3 Navigating the navigation view Browse the navigation view and menu items using the control buttons as follows: Table 7- 8 Navigation view...
Page 116 Operating 7.1 Local display (HMI) Function Select the item below in the list; keep pressing the key to accelerate scrolling down the selection list. If the key is pressed when the bottom item is selected, the top item will be highlighted.
Page 117: Access Control
(Page 231). Note Lost PIN code If the PIN code is lost, provide Siemens customer support with the transmitter serial number (see nameplate). Siemens customer support will provide a code to be entered in Reset PINs (menu item 5.1.3). Disable access level control If logged in as "Expert"...
Page 118: Operation View
Operating 7.1 Local display (HMI) Auto Log Off function With the "Auto Log Off" function enabled (default), you will be prompted to enter the password if no keys have been pressed for ten minutes before operating the display again. With the "Auto Log Off" function disabled, you will not be prompted to enter the password before operating the HMI.
Page 119 Operating 7.1 Local display (HMI) In general, all of the HMI views show the following: ① Long TAG Describes the measurement point and is shown in all operation views. Can be changed via the menu "Long TAG" (3.1.1). ② View number Shows the operation view number.
Page 120 Operating 7.1 Local display (HMI) Three Values ① First process value The user-defined process value to be displayed is configured in menu "View" (1-6) located at "Setup" → "Display" ② Lower Limit Alarm The lower limit of the bar graph is defined by the lower alarm limit of the selected process value.
Page 121 Operating 7.1 Local display (HMI) Note Bargraph The bargraph limits are defined as the lower and upper alarm values. 1 Value and Graph ① Process Value ② Graph ③ Instruction Press to freeze/unfreeze display Six Values ① First process value The user-defined process value to be displayed is configured in menu "View"...
Page 122 Operating 7.1 Local display (HMI) Operating Views Totalizer (level 1) ① Process value ② Graph ③ Instruction Press to enter the operation view. Totalizer (level 2) ① Process value ② Graph ③ Control Dosing (level 1) ① Dosed amount Actual dosed amount ②...
Page 123 Operating 7.1 Local display (HMI) Dosing (level 2) ① Dosed amount Actual dosed amount ② Amount Dosing progress ③ Count Number of dosings ④ Recipe Name of the selected recipe ⑤ Status Dosing status ⑥ Control Dosing control Alarm views Alarm List (level 1) ①...
Page 124 Operating 7.1 Local display (HMI) Alarm List (level 2) ① List of alarms List of all active alarms in device. Each Alarm can be selected for detailed information. ② Alarm icon Shows the alarm class, see Alarms and system messages (Page 171).
Page 125 Operating 7.1 Local display (HMI) Alarm acknowledgement There are two ways to have the alarms removed from the alarm list. ● Manual: The alarm remains in the alarm list until the alarm is manually acknowledged (ack.). The time of the acknowledgement is shown in the history log. ●...
Page 126 Operating 7.1 Local display (HMI) Fixed display text Process value name FRACTION A Fraction A FRACTION B Fraction B FRCT.A % Fraction A % FRCT.B % Fraction B % TOT1 Totalizer 1 TOT2 Totalizer 2 TOT3 Totalizer 3 Table 7- 12 Diagnostic values Fixed display text Diagnostic value name...
Page 127: Navigation View
Level 1 of the navigation view (entered from the operation view) is standardized for all Siemens Process Instrumentation devices and covers the following groups: 1. Quick Start (menu): Lists the most important parameters for quick configuration of the device.
Page 128 Operating 7.1 Local display (HMI) Menu item In navigation view menus are identified by an arrow in the most right position. When a menu is selected, the background turns black. Figure 7-3 Menu in navigation view "Quick start" selected "Setup" not selected. For further information on how to gain access to the menus, see Access control (Page 115).
Page 129: Parameter View
Operating 7.1 Local display (HMI) 7.1.5 Parameter view Depending upon your access level, you can edit the value of the selected parameter or read the current value. Numeric parameters edit view Numeric parameters in edit view are displayed as shown here. ①...
Page 130 Operating 7.1 Local display (HMI) Changing the resolution: 1. Select decimal point by pressing keys. 2. Move decimal point by pressing key (moves decimal point to the left) or (moves decimal point to the right). In order to change the resolution of the process value shown in the operation view (for example massflow), change the resolution of one configuration parameter for this process value (for example "Low Flow Cut-off"...
Page 131 Operating 7.1 Local display (HMI) Parameter list edit view Lists of parameters in edit view are displayed as shown here. ① Parameter list ② Parameter name ③ Parameter item number ④ Help text describing the parameter function. The help text appears if no key is pressed for three seconds.
Page 132 Operating 7.1 Local display (HMI) Multiselection view It is possible to select/deselect multiple alarms to be suppressed. ① Parameter name ② Alarm list ③ Save settings (select and press right key to save settings) to scroll through the alarms. Use to select/deselect the alarm.
Page 133: Functions
Functions In the following the main functionalities of the device are described in detail. For overview of all functions and parameters, refer to the parameter tables in the appendix HMI menu structure (Page 231). Process values The process values are updated every 10 ms (100 Hz update rate) synchronous with the DSP update cycle.
Page 134 Functions 8.1 Process values ● Lower Limit Alarm ● Alarm Hysteresis The system reports a process alarm when the process value exceeds the Upper Limit Alarm or the Lower Limit Alarm. Likewise, the system reports a process warning when the process value exceeds the Upper Limit Warning or the Lower Limit Warning.
Page 135 Functions 8.1 Process values Limit behavior on the outputs Process Alarms can trigger Fail Safe behavior on the Signal Output, whereas Process Warnings are only used as information available in HMI and on the communication. Process value will bring the Signal output to Fail Safe mode if: - Signal Output is configured to Current, Pulse or Frequency - Fail Safe Mode is configure to react on a failure - Process Alarm occurs on a process value selected on the output...
Page 136: Zero Point Adjustment
Functions 8.2 Zero point adjustment Reference density is the density of the media at reference conditions, normally atmospheric pressure and 20 °C. Reference density can be programmed into the flowmeter menu in two forms, either as a fixed reference or with a selection of linear or square-law temperature dependence.
Page 137: Low Flow Cut-Off
Functions 8.3 Low flow cut-off Zero point calculation During zero point adjustment, an average value is automatically calculated from a large number of samples. The resultant flow value represents an offset from true zero flow. The standard deviation is also calculated which represents the stability of the zero offset value. Successful automatic zero point adjustment If the new zero point offset value is valid, it is automatically stored as the new zero point for the sensor.
Page 138: Process Noise Damping
Functions 8.5 Process noise damping Empty tube monitoring parameters Two parameters for setting the empty tube monitoring function are available: ● Empty Tube Detection (Modbus address 2129) ● Empty Tube Limit (Modbus address 2127) The empty tube monitoring is activated via the Empty Tube Detection parameter. When the empty tube monitoring function is on, the massflow / volumeflow value is forced to zero if the tube is empty.
Page 139 Functions 8.5 Process noise damping Figure 8-2 Centrifugal pump (1: low) Figure 8-3 Triplex pump (2) Figure 8-4 Duplex pump (3; default setting) Figure 8-5 Simplex pump (4) FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 140: Inputs And Outputs
Functions 8.6 Inputs and outputs Figure 8-6 Cam pump (5: high) Note Increased reaction time The reaction time of the sensor increases when the process noise is damped. Inputs and outputs The hardware functionality of input and output is fixed when ordering the product. The available configuration is described in the following table: Channel HW configuration...
Page 141: Current Output
Functions 8.6 Inputs and outputs Channel HW configuration SW configuration (fixed when ordering) available to the user Current input Signal output Current (0/4-20 mA) • Frequency or pulse • Three-stage analog valve dosing control • Discrete one or two-valve dosing control •...
Page 142 Functions 8.6 Inputs and outputs The accuracy specified for the analog output signal applies only within the range 4 to 20 mA. Lower limit (4 mA) and upper limit (20 mA) can be assigned to any specific flow values. ① Linear control range ②...
Page 143 Functions 8.6 Inputs and outputs Output scaling configuration Below are four examples describing configuration possibilities for a current output. Positive flow with negative scaling ① Low-flow cut-off ② Upper scaling ③ Maximum output current ④ Upper alarm current ⑤ Upper range ⑥...
Page 144 Functions 8.6 Inputs and outputs Positive flow across zero with positive scaling ① Lower scaling ② Low-flow cut-off ③ Upper scaling ④ Maximum measurement value ⑤ Upper range ⑥ Lower range ⑦ Minimum measurement value ⑧ Lower alarm value ⑨ Measurement range Current output setting ●...
Page 145 Functions 8.6 Inputs and outputs Bidirectional flow across zero with positive scaling ① Lower scaling ② Low-flow cut-off ③ Upper scaling ④ Maximum measurement value ⑤ Upper range ⑥ Lower range ⑦ Minimum measurement value ⑧ Lower alarm value ⑨ Measurement range Current output setting ●...
Page 146: Pulse Output
Functions 8.6 Inputs and outputs Bidirectional flow with symmetrical scaling ① Upper scaling ② Lower scaling ③ Low-flow cut-off ④ Upper alarm value ⑤ Maximum measurement value ⑥ Upper range ⑦ Lower range ⑧ Minimum measurement value ⑨ Measurement range Current output setting ●...
Page 147: Frequency Output
Functions 8.6 Inputs and outputs Pulse repetition Pulse repetition is calculated as follows: Note Pulse width must be selected with the view that remaining time is always greater than pulse width at the highest measured flow. Example ● Pulse output configuration (channels 2 to 4) –...
Page 148: Redundancy Mode
Functions 8.6 Inputs and outputs ● Direction = Positive ● Frequency Value High = 12 kHz ● Frequency Value Low = 2 kHz ● Flow Value High = 15 kg/s ● Flow Value Low = 5 kg/s Measured massflow value = 7.5 kg/s (constant) Result: ●...
Page 149: Status Output
The alarm class options depend on the Alarm Mode setting, either NAMUR or Standard (Siemens Standard), selected in menu item 3.2.1. Both NAMUR and Siemens Standard alarms and their messages are described in more detail in Alarms and system messages (Page 171).
Page 150: Totalizers
Functions 8.7 Totalizers The following input options are available: ● Start dosing ● Hold / continue dosing – When this function is activated, it will pause the dosing. When it is deactivated, the dosing will continue ● Stop dosing – Sets the digital output to "Off" and resets the dosing counter ●...
Page 151: Dosing
Functions 8.8 Dosing Dosing The dosing function controls the sequence of flow through one or two valves into a container. The user can set the Amount and the sequence of controlling the valve(s). The dosing function then controls the valves to open and close in sequence to achieve the Amount. The process values for dosing control are updated with 100 Hz to ensure maximum response time of 10 ms to rapidly changing flows.
Page 152: Dosing Control Configuration
Functions 8.8 Dosing Configure the dosing function as follows: 1. Basic dosing parameters common for all recipes in menu 2.5 "Dosing" – Select valve control functionality at parameter "Dosing Mode" – Select measured process value for dosing at parameter "Process Values" 2.
Page 153: Valve Control Configuration
Functions 8.8 Dosing Recipes Five recipes can be configured individually, however only one of the recipes can be active at a time. 8.8.2 Valve control configuration Valve control dosing Dosing is controlled with either one or two discrete valves or a single analog valve. The transmitter provides up to three input/output channels which can be used for dosing control.
Page 154 Functions 8.8 Dosing One of the following channels must be assigned to control the discrete primary valve and one must be assigned to control the secondary discrete valve. Table 8- 2 Two Stage Dosing Valve control Channel HW con- Output Channel SW configuration figuration channel...
Page 155 Functions 8.8 Dosing Table 8- 4 Parameter settings for Two Stage Dosing valve control Valve control parameter con- Default values Description figured in each recipe Stage 1 Primary Open 0.00 % of Amount The quantity or percent of the Amount at which the primary valve will open Stage 1 Primary Close 80.00 % of Amount...
Page 156 Functions 8.8 Dosing ① Open primary valve ② Open secondary valve ③ Close primary valve ④ Close secondary valve Example 2: Open primary valve at 0 %; close primary valve after closing secondary valve configured in recipe 1 Parameter configuration: Menu 2.5 Dosing - 2.5.1 Dosing Mode = Two Stage Dosing Menu 2.5.5.6 Valve Control...
Page 157 Functions 8.8 Dosing - 2.5.5.6.4 Stage 2 Secondary Open = 0 % - 2.5.5.6.5 Stage 2 Secondary Close = 100 % ① Open secondary valve ② Open primary valve ③ Close primary valve ④ Close secondary valve Example 4: Open secondary valve at 0 %; close primary valve after closing secondary valve configured in recipe 1 Parameter configuration: Menu 2.5 Dosing...
Page 158: Dosing Operation
Functions 8.8 Dosing Valve control parameter con- Default value Description figured in each recipe Fully Open 0.00 % of The quantity or percent of amount at which the valve will transition Amount from partial to full flow Partially Closed 100.00 % of The quantity or percent of amount at which the valve will transition Amount from full flow to partial flow...
Page 159: Fault Handling
Functions 8.9 Audit trail Dosing compensation In static applications the flowrate is constant. Thus, the dosing compensation, if required, is fixed. Use the fixed compensation by entering the amount in menu item 2.5.5.5.2 (Fixed Compensation). 8.8.4 Fault handling The transmitter fault handling provides monitoring of both dosing time and amount. The configuration of the fault handling is done in menu 2.5.4.6 Fault Handling.
Page 160: Custom Unit
Material, pressure test, factory testing and order conformance certificates are optional at ordering. The Siemens SensorFlash memory unit offers a permanent database with backup of all parameter settings. The SensorFlash supports copy and transfer of user settings from one flowmeter to another to simplify commissioning.
Page 161 Alarm simulation It is possible to simulate either specific alarms (ID numbers) or alarm classes. The alarm classes are either Siemens or NAMUR depending on the configuration of Alarm Mode, menu item 3.2.1. Any simulated alarms will be time-stamped 1900-01-01 00:00 if the alarms have not previously appeared as real alarms.
Page 162: Maintenance
Functions 8.14 Maintenance 8.14 Maintenance ● Set Date and Time The device has a built-in real-time clock used for time stamps of various events (for example alarms and configuration changes). The date and time can be set in menu item 3.3.2.
Page 163: Custody Transfer
Custody Transfer The SITRANS FC430 flowmeter is suitable for custody transfer measurement for liquids other than water according to OIML R 117-1 with accuracy class 0.3. Note Ordering Only flowmeters with local display ordered with Z-option "B31" (Custody Transfer) can be set to this mode.
Page 164 Custody Transfer 9.2 Verification The device may only be used for applications subject to legal metrology once it has been verified on site by the Verification Authority. The associated seals on the device ensure this status. NOTICE Verification requirements All flowmeters used for invoicing in applications subject to legal metrology controls must be verified by the Verification Authorities.
Page 165: Setting Up Custody Transfer Mode
Custody Transfer 9.3 Setting up custody transfer mode Setting up custody transfer mode The device has to be operational and not yet set to custody transfer mode. 1. Configure the functions important for custody transfer measurement, such as the output setup (pulse, frequency), custody transfer variable and the measuring mode.
Page 166 Custody Transfer 9.3 Setting up custody transfer mode 9. Reinstate display lid until mechanical stop. Wind back lid by one turn. 10.Mount O-ring by pulling it over the display lid and wind the lid in until you feel friction from the O-ring on both sides.
Page 167 Custody Transfer 9.3 Setting up custody transfer mode Figure 9-5 Remote transmitter seals in place - M12 plug variant. Arrows indicate the seal points of the two lock screws and cable sealing Figure 9-6 Remote sensor seals in place - M12 variant. Arrows indicate the seal points of the lock screw and cable sealing FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 168: Parameter Protection In Custody Transfer Mode
Custody Transfer 9.4 Parameter protection in custody transfer mode For remote variants with M12 plugs it is necessary to use the plug seals supplied with the flow sensor. The plug seal encases the M12 plug, preventing unauthorized removal of the sensor cable at either end.
Page 169 Custody Transfer 9.4 Parameter protection in custody transfer mode Level 2 Level 3 Level 4 Level 5 Name Name Name Name 2.2.7.1 Measurement Mode 2.2.7 Fraction 2.2.7.2 Unit 2.2.7.3 Active Fraction 2.2.7.4 Fraction Name 2.2.7.5.1 Fraction A Text 2.2.7.5 Fraction A 2.2.7.6.1 Fraction B Text 2.2.7.6 Fraction B...
Page 170 Custody Transfer 9.4 Parameter protection in custody transfer mode Level 2 Level 3 Level 4 Level 5 Name Name Name Name 2.6.4 Standard Deviation Limit 2.6.6 Offset Limit 2.6.8 Offset 2.8.10.2. Custom Text Display 2.8.10 Custom Units 2.8.10.2 Totalizer Unit 2.8.10.2.
Page 171 Custody Transfer 9.4 Parameter protection in custody transfer mode Level 2 Level 3 Level 4 Level 5 Name Name Name Name 3.7.1.6.3 Simulation 3.7.1.6.4 Simulated Value 3.7.1.6.5 Simulation 3.7.1.6.6 Simulated Value 3.7.1.6.7 Simulation 3.7.1.6.8 Simulated Value 3.7.1.7.1 Simulation 3.7.1.7 Relay Output (4) 3.7.1.7.2 Simulated Value 3.7.1.8.1 Simulation 3.7.1.8...
Page 172: Disabling Custody Transfer Mode
Custody Transfer 9.5 Disabling custody transfer mode Level 2 Level 3 Level 4 Level 5 Name Name Name Name 3.9.9 Bandwidth Factor 3.9.10 Filter Pole Shift 4.7.8 Totalizer 1 Unit HART Units 4.7.9 Totalizer 2 Unit 4.7.10 Totalizer 3 Unit Note Reset of totalizers The reset functions (totalizer 1, totalizer 2, and all totalizers) are not available in CT mode.
Page 173: Alarms And System Messages
3.2.3. The alarm history log can be reset in menu item 3.2.4. Characteristics of messages The device provides two types of alarm classes, NAMUR and Siemens standard, selected in menu item 3.2.1 Alarm Mode. The following tables summarize the two types of alarm classes in an overview.
Page 174: Alarm Messages
10.2 Alarm messages Alarms and system messages support both Siemens standard and NAMUR. In the following tables the alarm ID (identification number) can be found along with possible causes and directions for corrective action. The alarm may affect the output depending on the process value selected to be signaled on the output as listed in the tables below.
Page 175 Contact Siemens customer support for recali- Yes* bration Invalid compensation data Contact Siemens customer support Yes* Malfunction in Pickup Amplitude Contact Siemens customer support Yes* Malfunction in sensor driver Contact Siemens customer support Yes* Unstable driver oscillation Contact Siemens customer support...
Page 176 Frame temp. below limit Increase fluid temperature and check that ambient temperature is within specified limits. If the failure continues then contact Siemens customer support Frame temp. above limit Reduce fluid temperature and check that am- bient temperature is within specified limits. If...
Page 177 Alarms and system messages 10.2 Alarm messages Diagnostic Action Effect on output Fluid temp. above alarm limit Check process conditions or align limit to nor- mal operation. Adjust parameter "Upper Limit Alarm" Fluid temp. below alarm limit Check process conditions or align limit to nor- mal operation.
Page 178 Invalid proc. val. during dosing Check installation for abnormal operating conditions. If the failure continues for several dosings, contact Siemens customer support Current output below Scaling Check process conditions or align limit to nor- mal operation. Adjust channel 2 parameter "Lower Scaling"...
Page 179 ""Flow Value High" Pulse overflow Pulse output insufficient pulse separation. Increase "Amount Per Pulse" or reduce "Pulse Width" on channel 4 Alarm class: Process value warning (Siemens standard), Out of specification (NAMUR) Diagnostic Action Effect on output "Standard Deviation" above limit Measurement continues with values from last successful zero point adjustment.
Page 180 Alarms and system messages 10.2 Alarm messages Diagnostic Action Effect on output Massflow above warning limit Check process conditions or align limit to nor- mal operation. Adjust parameter "Upper Limit Warning" Massflow below warning limit Check process conditions or align limit to nor- mal operation.
Page 181 If the status remains "Coming" then turn off the power, wait 5 seconds and turn on the power again. If the failure continues then contact Siemens customer support. Sensor serial number mismatch SensorFlash backup is disabled due to mismatch of serial numbers between sensor front-end and SensorFlash.
Page 182 Alarms and system messages 10.2 Alarm messages Diagnostic Action Effect on output Density simulated Disable "Simulation" before returning to normal operation Fluid temp. simulated Disable "Simulation" before returning to normal operation Fraction simulated Disable "Simulation" before returning to normal operation Ref.
Page 183: Service And Maintenance
● Seal integrity of the process connections, cable entries, and cover screws ● Reliability of power supply, lightning protection, and grounds NOTICE Repair and service must be carried out by Siemens authorized personnel only. Note Siemens defines flow sensors as non-repairable products.
Page 184: Recalibration
● Manual Zero Point ● Zero Point Standard Deviation 11.3 Recalibration Siemens A/S, Flow Instruments offers to recalibrate the sensor at our works in Denmark. The following calibration types are offered as standard according to configuration (standard, density, °Brix/°Plato, fraction): ● Standard calibration ●...
Page 185: Technical Support
● Information about field service, repairs, spare parts and lots more under Services. Additional Support Please contact your local Siemens representative and offices if you have additional questions about the device. Find your local contact partner at: http://www.automation.siemens.com/partner (http://www.automation.siemens.com/partner)
Page 186: Transportation And Storage
11.7 Repair WARNING Impermissible repair of explosion protected devices Danger of explosion in areas subject to explosion hazard. • Repair must be carried out by Siemens authorized personnel only. FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 187: Return And Disposal
Service and maintenance 11.8 Return and disposal WARNING Impermissible accessories and spare parts Danger of explosion in areas subject to explosion hazard. • Only use original accessories or original spare parts. • Observe all relevant installation and safety instructions described in the instructions for the device or enclosed with the accessory or spare part.
Page 188 11.8 Return and disposal Required forms ● Delivery Note ● Cover Note for Return Delivery with the following information Cover note (http://support.automation.siemens.com/WW/view/en/16604370) – product (ordering number) – number of devices or spare parts returned – reason for the return ● Declaration of Decontamination Declaration of Decontamination (http://www.automation.siemens.com/w1/efiles/automation-...
Page 189: Troubleshooting/Faqs
Troubleshooting/FAQs 12.1 Diagnosing with PDM SIMATIC PDM is a suitable tool for diagnosing the device. You can use SIMATIC PDM to read all available parameters to a table for analyzing offline, view online/actual process values and online/actual diagnostic information. Requirements The following procedure must be completed before diagnosing: ●...
Page 190 Troubleshooting/FAQs 12.2 Troubleshooting sensor-related problems Step 1: Inspecting the application Ensure that: 1. The sensor is installed as described in Installing/mounting (Page 41). 2. The sensor is located in a vibration-free position. Vibrations can disturb the sensor and therefore cause measurement error. Depending on application, you should furthermore ensure the following: ●...
Page 191 Troubleshooting/FAQs 12.2 Troubleshooting sensor-related problems Calculating the measurement error Given the Zero Point Standard Deviation, the error expected for different flow rates can be calculated, without performing time-consuming measurements. So using this formula, one can assess if the application can be used as–is, or whether to use more time improving the installation.
Page 192 Troubleshooting/FAQs 12.2 Troubleshooting sensor-related problems As can be seen, in this case it is not so important that the standard deviation is 1 kg/h. The error due to the zero point is only 0.1% for a flowrate of 1000 kg/h, and even less for a higher flowrate. So for this installation with the given flowrate and zero point error (Zero Point Standard Deviation value), you should typically choose not to spend more time finding ways to improve the application.
Page 193 Troubleshooting/FAQs 12.2 Troubleshooting sensor-related problems Air in the liquid When air is present in the liquid, the zero point becomes unstable, which leads to a poor measurement accuracy. Checking for air: ● Check the Driver Current (View → Device Diagnostics → Advanced Diagnostic) ●...
Page 194: How Do I Copy Application Setup From One Device To Another
12.4 How do I update the firmware? 1. Download the new firmware bundle from www.siemens.com/FC430 and save it to the SensorFlash. An instruction is also available at this site. 2. Access the flowmeter with access level Expert (the default PIN code is 2834).
Page 195: Technical Data
Technical data 13.1 Function and system design Table 13- 1 Designated use Description Specification Measurement of process media Fluid Group 1 (suitable for dangerous fluids) • Aggregate state: Paste/light slurry, liquid and gas • Table 13- 2 Function and system design Description Specification Measuring principle...
Page 196: Process Variables
Technical data 13.3 Process variables 13.3 Process variables Table 13- 4 Process variables Description Specification Primary process vari- Massflow • ables Density • Fluid temperature • Derived process vari- Volumeflow • ables Corrected volumeflow • Fraction A:B • Fraction % A:B •...
Page 197: Bus Communication
Technical data 13.4 Bus communication 13.4 Bus communication Table 13- 5 HART communication Description Specification More information Manufacturer ID 42 (2A Hex) Manufacturer ID parameter Device ID 34 (22 Hex) Device type parameter HART protocol revision HART protocol revision parameter Device revision Device revision parameter Number of device variables...
Page 198: Rated Operating Conditions
Technical data 13.6 Rated operating conditions Table 13- 8 Density accuracy Description Specification Density accuracy, standard calibration [kg/m³] ±5 Density accuracy, extended calibration [kg/m³] ±1 Density repeatability [kg/m³] ±0.25 Density, media pressure effect [(kg/m³)/Bar] ±0.5 Density, media temperature effect [(kg/m³)/°C] ±0.1 Table 13- 9 Media temperature accuracy...
Page 199: Pressure Drop Curves
Technical data 13.7 Pressure drop curves Description Specification Relative humidity [%] Bump resistance On request Shock resistance On request Thermal shock On request Vibration resistance On request EMC performance EN/IEC 61326-1 (Industry) Table 13- 12 Cleaning and sterilizing conditions Description Specification Cleaning method •...
Page 200: Pressure - Temperature Ratings
Technical data 13.8 Pressure - temperature ratings 13.8 Pressure - temperature ratings Pressure - temperature ratings are determined by process connection material and applicable standards. The tables below detail the allowed maximum process pressure for sensor variants with stainless steel and Hastelloy measuring tubes. With two major exceptions, the pressure rating of the flow sensors is independent of the process medium temperature.
Page 201 Technical data 13.8 Pressure - temperature ratings Table 13- 15 ISO228-G and ASME B1.20.1 NPT [bar] PN (bar) Temperature TS (°C) 100.0 100.0 100.0 100.0 100.0 100.0 Table 13- 16 ASME B16.5 [bar] Class / Temperature TS (°C) Group 150 / 2.3 15.8 15.8 15.3...
Page 202 Technical data 13.8 Pressure - temperature ratings Table 13- 20 DIN 11864 & ISO 2853 [bar] PN (bar) / DN Temperature TS (°C) 25 / 50-100 40 / 10-40 Table 13- 21 Swagelok SS-12-VCO-3 socket weld with SS-12-VCO-4 nut [bar] PN (bar) Temperature TS (°C) 100.0...
Page 203: Design
Technical data 13.9 Design Table 13- 24 ASME B16.5 [bar] Class Temperature TS (°C) 20.0 20.. 19.5 17.7 15.8 13.8 51.7 51.7 51.7 51.5 50.3 48.6 103.4 103.4 103.4 103.0 100.3 97.2 155.1 155.1 153.0 145.0 134.0 125.0 Table 13- 25 DIN 11851 [bar] PN (bar) / DN Temperature TS (°C) 25 / 50-100...
Page 204 Technical data 13.9 Design Description Specification Electrical connection M12 connector with 4-wire cable • Standard cable with polymer / brass / stain- • less steel cable glands (metric or NPT) Armored cable with stainless steel armored • cable glands (metric or NPT) Conduit entries (metric or NPT) •...
Page 205: Inputs And Outputs
Technical data 13.10 Inputs and outputs 13.10 Inputs and outputs Table 13- 28 Current output Description Channel 1 Channels 2 to 4 Signal range 4 to 20 mA 0/4 to 20 mA Resolution 0.4 μA 0.4 μA Load < 500 Ω (HART ≥ 230 Ω) <...
Page 206 Technical data 13.10 Inputs and outputs Description Channels 2 to 4 10000 21.13 21.85 20000 21.51 21.88 50000 21.74 21.89 100000 21.82 21.90 Time constant (adjustable) 0 to 100 s Active 0 to 24 V DC, 87 mA, short-circuit-protected Passive 3 to 30 V DC, 100 mA, short-circuit-protected Functions Pulse...
Page 207: Local Display (Hmi)
Technical data 13.11 Local display (HMI) 13.11 Local display (HMI) Table 13- 32 HMI Description Specification Display Full graphical Resolution: 240 x 160 pixels Size: 60.0 x 41.4 mm (2.36" x 1.63") Ambient temperature Storage: -40 to +60 °C (-40 to +140 °F) Operation: -20 to +60 °C (-4 to +140 °F) The readability of the display may be impaired at temperatures outside the permitted operating...
Page 208 Technical data 13.13 Cables and cable entries Description Specification Maximum length [m (ft.)] 150 (492) Installation environment Industrial including chemical processing plants Insulation material Special polyolefin Halogen-free RoHS compliant Torsional strength >3 million cycles at ± 180° on 200 mm •...
Page 209: Installation Torques
Table 13- 38 Installation torques Description Torque (Nm) Pressure guard fittings Wall bracket screws Transmitter to wall bracket Transmitter pedestal lock screw Compact version: Remote version: Pedestal lock screw cap Cable gland to housing (Siemens supplied, metric) FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 210 Technical data 13.14 Installation torques Note NPT glands When using NPT glands, user must take care when packing threads and installing cables that sufficient tightness is obtained to prevent ingress of moisture. FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 211: Certificates And Approvals Hart
Technical data 13.15 Certificates and approvals HART 13.15 Certificates and approvals HART Table 13- 39 Certificates and approvals Description Specification ATEX FCT030 transmitter (can be installed in Zone 1 for gas and Zone 21 for dust): Certificate SIRA 11ATEX1342X: II 2(1) GD Ex d e [ia Ga] IIC T6 Gb Ta = -40°C to +60°C Ex tb [ia Da] IIIC T85°C Db FCS400 sensor + DSL (can be installed in Zone...
Page 212 Custody Transfer FC430 compact and remote systems: OIML R 117-1 accuracy class 0.3 for liquids other than water 2004/22/EC MID 005. For information regarding tested liquids, contact Siemens Hygienic version EHEDG EC1935:2004 and 2023:2006 (food contact mate- rial: stainless steel)
Page 213: Ped
Technical data 13.16 PED 13.16 The pressure equipment directive 97/23/EC applies to the alignment of the statutory orders of the European member states for pressure equipment. Such equipment in the sense of the directive includes vessels, pipelines and accessories with a maximum allowable pressure of more than 0.5 bar above atmospheric.
Page 214 Technical data 13.16 PED Division of media (liquid/gaseous) into the fluid groups Fluids are divided according to Article 9 into the following fluid groups: Group 1 fluids Explosive Very toxic R phrases: for example: 2, 3 (1, 4, 5, 6, 9, 16, 18, R phrases: for example: 26, 27, 28, 39 (32) 19, 44) Extremely flammable...
Page 215 Technical data 13.16 PED Highly flammable Oxidizing R phrases: for example: 11, 15, 17 (10, 30) R phrases: for example: 7, 8, 9 (14, 15, 19) Flammable R phrases: for example11 (10) Group 2 fluids All fluids not belonging to Group 1. Also applies to fluids which are for example dangerous to the environment, corrosive, dangerous to health, irritant or carcinogenic (if not highly toxic).
Page 216 Technical data 13.16 PED Diagrams ● Gases of fluid group 1 ● Pipelines according to Article 3 Number 1.3 Letter a) First dash ● Exception: unstable gases belonging to Categories I and II must be included in Category III. Figure 13-3 Diagram 6 ●...
Page 217 Technical data 13.16 PED ● Pipelines according to Article 3 Number 1.3 Letter b) First dash Figure 13-5 Diagram 8 ● Liquids of fluid group 2 ● Pipelines according to Article 3 Number 1.3 Letter b) Second dash Figure 13-6 Diagram 9 FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 218 Technical data 13.16 PED FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 219: Spare Parts/Accessories
Spare parts/Accessories 14.1 Ordering Ensure that your ordering data is not outdated. The latest ordering data is always available on the Internet: Catalog process instrumentation (http://www.siemens.com/processinstrumentation/catalogs) 14.2 Ex approved products WARNING Repair of Ex-approved products It is the customer's responsibility that repair of Ex-approved products fulfill national requirements.
Page 220: Replaceable Components
Spare parts/Accessories 14.3 Replaceable components 14.3 Replaceable components This table gives an overview of which components can be replaced. Table 14- 1 Overview of replaceable components Component Order number Photo and Hot swappable position on Figure 3-5 Transmitter exploded view (Page 34) SITRANS FCS400 Standard: 7ME4610- •...
Page 221 Spare parts/Accessories 14.3 Replaceable components Component Order number Photo and Hot swappable position on Figure 3-5 Transmitter exploded view (Page 34) ⑨ SITRANS FCT030 A5E03549357 Transmitter interface cassette HART (Active) (might need firmware update) ⑨ SITRANS FCT030 A5E03549383 Transmitter interface cassette HART (Passive) (might need firmware update) ⑳...
Page 222 Spare parts/Accessories 14.3 Replaceable components Component Order number Photo and Hot swappable position on Figure 3-5 Transmitter exploded view (Page 34) ② SITRANS FCT030 A5E03548971 Display and keypad (might need firmware update) ① SITRANS FCT030 A5E03549344 Display lid Observe hazard- ous area access protocols! SITRANS FCT030...
Page 223 Spare parts/Accessories 14.3 Replaceable components Component Order number Photo and Hot swappable position on Figure 3-5 Transmitter exploded view (Page 34) SITRANS FCS400 A5E03549324 Contents: Bag of loose parts for sensor Screws, O-rings, cable clamp parts SITRANS FCT030 A5E03906091 Remote version Mounting bracket kit for wall and pipe mounting SITRANS FCS400...
Page 224 Spare parts/Accessories 14.3 Replaceable components FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 225: Dimensions And Weight
Dimensions and weight 15.1 Sensor dimensions Table 15- 1 Basic dimensions Sensor DN A in mm (inch) B in mm (inch) C in mm (inch) Weight in kg (lb) 15 (½") 90 (3.54) 280 (11.0) 90 (3.54) 4.6 (10.1) 25 (1") 123 (4.84) 315 (12.4) 90 (3.54)
Page 226: Lengths Matrix
Dimensions and weight 15.2 Lengths matrix 15.2 Lengths matrix 316L stainless steel or Hastelloy - standard Table 15- 2 7ME461 - sensor sizes DN15 and DN25 Sensor DN15 DN25 Connection DN10 DN15 DN20 DN25 DN25 DN32 DN40 EN1092-1 B1, PN16 (10.4) (10.4) (14.2)
Page 227 Dimensions and weight 15.2 Lengths matrix ISO 2852 Hygienic clamp (10.4) (14.2) (14.2) ISO 2853 Hygienic screwed (10.4) (14.2) (14.2) SMS 1145 Hygienic screwed (10.4) (14.2) 12-VCO-4 Quick connect (11.2) JIS B2220 10K (10.4) (14.2) JIS B2220 20K (10.4) (14.2) JIS B2220 40K (10.6) (14.2)
Page 228 Dimensions and weight 15.2 Lengths matrix SMS 1145 Hygienic screwed 610 (24.0) 610 (24.0) 875 (34.4) 12-VCO-4 Quick connect JIS B2220 10K 620 (24.4) 610 (24.0) 840 (33.1) JIS B2220 20K 620 (24.4) 610 (24.0) 860 (33.9) JIS B2220 40K 620 (24.4) 610 (24.0) 875 (34.4)
Page 229 Dimensions and weight 15.2 Lengths matrix DIN 32676-C Hygienic clamp (20.1) (20.1) (23.6) (23.6) DIN 11864-1 Aseptic screwed (20.1) (23.6) DIN 11864-2A Aseptic flanged (20.1) (23.6) DIN 11864-3A Aseptic clamp (20.1) (23.6) ISO 2852 Hygienic clamp (20.1) (23.6) (23.6) ISO 2853 Hygienic screwed (20.1) (23.6) (23.6)
Page 230 Dimensions and weight 15.2 Lengths matrix 316L stainless steel - hygienic version Table 15- 6 7ME462 - sensor sizes DN15 and DN25 Sensor DN15 DN25 Connection DN10 DN15 DN20 DN25 DN25 DN32 DN40 DIN 11851 Hygienic screwed (10.4) (10.4) (10.6) (14.2) (14.2) DIN 32676-C Hygienic clamp...
Page 231: Transmitter Dimensions
Dimensions and weight 15.3 Transmitter dimensions 15.3 Transmitter dimensions Compact version Dimensions in mm Remote version Dimensions in mm Weight: 4.8 kg (10.6 lbs) FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 232: Mounting Bracket
Dimensions and weight 15.4 Mounting bracket 15.4 Mounting bracket Figure 15-1 Mounting bracket dimensions FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 233: Hmi Menu Structure
HMI menu structure How to read the tables italic In the following tables the menus are entered in bold text and the parameters in The first table shows the main HMI menu, that is HMI menu levels 1 and 2. The following tables show the HMI submenus, that is HMI menu levels 3 to 5.
Page 234: Menu Item 2.1: Basic Settings
HMI menu structure A.2 Menu item 2.1: Basic Settings Level 1 Level 2 More information Name Name Zero Point Adjustment Menu item 2.6: Zero Point Adjustment (Page 245) Safe Operation Menu item 2.7: Safe Operation (Page 245) Display Menu item 2.8: Display (Page 246) Maintenance &...
Page 235: Menu Item 2.2: Process Values
HMI menu structure A.3 Menu item 2.2: Process Values Menu item 2.2: Process Values Table A- 3 Process values Level 3 Level 4 Level 5 Name Name Name 2.2.1.1 Unit 2.2.1 Massflow 2.2.1.2 Low Flow Cut-Off 2.2.1.3 Upper Limit Alarm 2.2.1.4 Upper Limit Warning 2.2.1.5...
Page 236 HMI menu structure A.3 Menu item 2.2: Process Values Level 3 Level 4 Level 5 Name Name Name 2.2.4.1 Adjustment Factor 2.2.4 Flow Adjustment 2.2.5.1 Unit 2.2.5 Density 2.2.5.2 Empty Tube Detection 2.2.5.3 Empty Tube Limit 2.2.5.4 Upper Limit Alarm 2.2.5.5 Upper Limit Warning 2.2.5.6...
Page 237: Menu Item 2.3: Totalizer
HMI menu structure A.4 Menu item 2.3: Totalizer Level 3 Level 4 Level 5 Name Name Name 2.2.7.7.5 Alarm Hysteresis 2.2.7.7.6 Decimal Places 2.2.7.8.1 Upper Limit Alarm 2.2.7.8 Fraction B % 2.2.7.8.2 Upper Limit Warning 2.2.7.8.3 Lower Limit Warning 2.2.7.8.4 Lower Limit Alarm 2.2.7.8.5 Alarm Hysteresis...
Page 238: Menu Item 2.4: Inputs/Outputs
HMI menu structure A.5 Menu item 2.4: Inputs/Outputs Level 3 Level 4 Level 5 Name Name Name 2.3.2.12 Decimal Places 2.3.3.1 Process Value 2.3.3 Totalizer 3 2.3.3.2 Unit 2.3.3.3 Direction 2.3.3.4 Fail Safe Mode 2.3.3.5 Upper Limit Alarm 2.3.3.6 Upper Limit Warning 2.3.3.7 Lower Limit Warning 2.3.3.8...
Page 239 HMI menu structure A.5 Menu item 2.4: Inputs/Outputs Table A- 6 Signal output on channel 2 Level 3 Level 4 Level 5 Name Name Name 2.4.2.1 Operation Mode 2.4.2 Signal Output (2) 2.4.2.2 Process Value 2.4.2.3 Direction 2.4.2.4 Current Mode 2.4.2.5 Upper Scaling 2.4.2.6...
Page 240 HMI menu structure A.5 Menu item 2.4: Inputs/Outputs Level 3 Level 4 Level 5 Name Name Name 2.4.2.39.3 Current (mA) 2.4.2.39.4 Time (s) Table A- 7 Signal output on channel 3 Level 3 Level 4 Level 5 Name Name Name 2.4.3.1 Operation Mode 2.4.3...
Page 241 HMI menu structure A.5 Menu item 2.4: Inputs/Outputs Level 3 Level 4 Level 5 Name Name Name 2.4.3.34 Simulation Alarms 2.4.3.35 Input/Output Alarms 2.4.3.36 Alarm Class 2.4.3.37 Alarm Class 2.4.3.38 Polarity 2.4.3.39 On Delay 2.4.3.40 Off Delay 2.4.3.41.1 Amount Per Pulse 2.4.3.41 Decimal Places 2.4.3.41.2 Pulse Width (s)
Page 242 HMI menu structure A.5 Menu item 2.4: Inputs/Outputs Table A- 10 Signal output on channel 4 Level 3 Level 4 Level 5 Name Name Name 2.4.6.1 Operation Mode 2.4.6 Signal Output (4) 2.4.6.2 Process Value 2.4.6.3 Direction 2.4.6.4 Current Mode 2.4.6.5 Upper Scaling 2.4.6.6...
Page 243: Menu Item 2.5: Dosing
HMI menu structure A.6 Menu item 2.5: Dosing Level 3 Level 4 Level 5 Name Name Name 2.4.6.39.3 Current (mA) 2.4.6.39.4 Time (s) Table A- 11 Relay output on channel 4 Level 3 Level 4 Level 5 Name Name Name 2.4.7.1 Status Mode 2.4.7...
Page 244 HMI menu structure A.6 Menu item 2.5: Dosing Table A- 14 Recipe 1 Level 3 Level 4 Level 5 Name Name Name 2.5.5.1 Name 2.5.5 Recipe 1 2.5.5.2 Unit 2.5.5.3 Amount 2.5.5.4 Decimal Places 2.5.5.5.2 Fixed Compensation 2.5.5.5 Calibration 2.5.5.6.1 Stage Setup Format 2.5.5.6 Valve Control...
Page 245 HMI menu structure A.6 Menu item 2.5: Dosing Level 3 Level 4 Level 5 Name Name Name 2.5.6.6.6 Fully Closed Current Level 2.5.6.6.7 Partially Open Current Level 2.5.6.6.8 Fully Open Current Level 2.5.6.6.9 Fully Open 2.5.6.6.10 Partially Closed 2.5.6.7.1 Duration Mode 2.5.6.7 Fault Handling 2.5.6.7.2...
Page 246 HMI menu structure A.6 Menu item 2.5: Dosing Table A- 17 Recipe 4 Level 3 Level 4 Level 5 Name Name Name 2.5.8.1 Name 2.5.8 Recipe 4 2.5.8.2 Unit 2.5.8.3 Amount 2.5.8.4 Decimal Places 2.5.8.5.2 Fixed Compensation 2.5.8.5 Calibration 2.5.8.6.1 Stage Setup Format 2.5.8.6 Valve Control...
Page 247: Menu Item 2.6: Zero Point Adjustment
HMI menu structure A.7 Menu item 2.6: Zero Point Adjustment Level 3 Level 4 Level 5 Name Name Name 2.5.9.6.6 Fully Closed Current Level 2.5.9.6.7 Partially Open Current Level 2.5.9.6.8 Fully Open Current Level 2.5.9.6.9 Fully Open 2.5.9.6.10 Partially Closed 2.5.9.7.1 Duration Mode 2.5.9.7...
Page 248: Menu Item 2.8: Display
HMI menu structure A.9 Menu item 2.8: Display Level 3 Level 4 Level 5 Name Name Name 2.7.7 Enter Non-Safe Opera- tion 2.7.8 Acknowledge Safety Alarms 2.7.9 Safety Transition Errors 2.7.10 Safety Error Reasons Menu item 2.8: Display Table A- 21 Display Level 3 Level 4...
Page 249 HMI menu structure A.9 Menu item 2.8: Display Level 3 Level 4 Level 5 Name Name Name 2.8.6.2 View 2.8.6.3 1st Process Value 2.8.6.4 2nd Process Value 2.8.6.5 3rd Process Value 2.8.6.6 4th Process Value 2.8.6.7 5th Process Value 2.8.6.8 6th Process Value 2.8.6.9 Trend Scale Mode...
Page 250: Menu Item 3.1: Identification
HMI menu structure A.10 Menu item 3.1: Identification Level 3 Level 4 Level 5 Name Name Name 2.8.9.7 5th Process Value 2.8.9.8 6th Process Value 2.8.9.9 Trend Scale Mode 2.8.9.10 Trend Log Time Window 2.8.9.11 Trend Scale Lower Limit 2.8.9.12 Trend Scale Upper Limit 2.8.10.1.1 Custom Text 2.8.10...
Page 251: Menu Item 3.2: Alarms
HMI menu structure A.11 Menu item 3.2: Alarms Level 3 Level 4 Level 5 Name Name Name 3.1.14.4 Serial Number A.11 Menu item 3.2: Alarms Table A- 23 Alarms Level 3 Level 4 Level 5 Name Name Name 3.2.1 Alarm Mode 3.2.2 Alarm Acknowledgment 3.2.3...
Page 252: Menu Item 3.3: Maintenance
HMI menu structure A.12 Menu item 3.3: Maintenance A.12 Menu item 3.3: Maintenance Table A- 24 Maintenance Level 3 Level 4 Level 5 Name Name Name 3.3.1 Current Date and Time 3.3.2 Set Date and Time 3.3.3 Set To Default 3.3.4 Restart Device 3.3.5...
Page 253: Menu Item 3.4: Diagnostics
HMI menu structure A.13 Menu item 3.4: Diagnostics A.13 Menu item 3.4: Diagnostics Table A- 25 Diagnostics Level 3 Level 4 Level 5 Name Name Name 3.4.2.1 Driver Current 3.4.2 Sensor 3.4.2.2 Pickup S1 Amplitude 3.4.2.3 Pickup S1 Amplitude 3.4.2.4 Max.
Page 254: Menu Item 3.6: Sensorflash
HMI menu structure A.15 Menu item 3.6: SensorFlash Level 3 Level 4 Level 5 Name Name Name 3.5.5.1 Design 3.5.5 Transmitter 3.5.5.2 Hazardous Area Approval 3.5.6.1 Hazardous Area Approval 3.5.6 Sensor 3.5.6.2 Maximum Massflow Capacity 3.5.6.3 Calibration Factor 3.5.6.4 Density Calibration Offset 3.5.6.5 Density Calibration Factor 3.5.6.6...
Page 255 HMI menu structure A.16 Menu item 3.7: Simulate Level 3 Level 4 Level 5 Name Name Name 3.7.1.3.2 Simulated Value 3.7.1.3.3 Simulation 3.7.1.3.4 Simulated Value 3.7.1.3.5 Simulation 3.7.1.3.6 Simulated Value 3.7.1.3.7 Simulation 3.7.1.3.8 Simulated Value 3.7.1.4.1 Simulation 3.7.1.4 Relay Output (3) 3.7.1.4.2 Simulated Value 3.7.1.5.1...
Page 256: Menu Item 3.8: Audit Trail
HMI menu structure A.17 Menu item 3.8: Audit Trail Level 3 Level 4 Level 5 Name Name Name 3.7.2.7.1 Simulation 3.7.2.7 Fraction 3.7.2.7.2 Fraction A % Value 3.7.2.7.3 Fraction B % Value Table A- 30 Alarm Level 3 Level 4 Level 5 Name Name...
Page 257: Menu Item 3.10: Self Test
HMI menu structure A.19 Menu item 3.10: Self Test Level 3 Level 4 Level 5 Name Name Name 3.9.3 Alarm Limit 3.9.4 Warning Limit 3.9.5 Measurement Sample Time 3.9.6 Filter Start Hysteresis 3.9.7 Minimum Filtering Time 3.9.8 Filter Iteration 3.9.9 Bandwidth Factor 3.9.10 Filter Pole Shift...
Page 258: Menu Item 5.1: Access Management
HMI menu structure A.22 Menu item 5.1: Access Management Level 3 Level 4 Level 5 Name Name Name 4.7.4 Density Unit 4.7.5 Fluid Temperature Unit 4.7.6 Fraction Unit 4.7.7 Fraction Unit 4.7.8 Totalizer 1 Unit 4.7.9 Totalizer 2 Unit 4.7.10 Totalizer 3 Unit A.22 Menu item 5.1: Access Management...
Page 259: Hart Commands
HART commands Universal commands The device supports the following universal commands: Table B- 1 Universal commands Command number Function Read Unique Identifier Read Primary Variable Read Loop Current And Percent Of Range Read Dynamic Variables And Loop Current Write Polling Address Read Loop Configuration Read Dynamic Variable Classifications Read Device Variables With Status...
Page 260 HART commands B.2 Common practice commands Command number Function Write Primary Variable Range Values Set Primary Variable Upper Range Value Set Primary Variable Lower Range Value Enter/Exit Fixed Current Mode Perform Device Reset Write Primary Variable Units Trim Loop Current Zero Trim Loop Current Gain Read Dynamic Variable Assignments Write Dynamic Variable Assignments...
Page 261: Default Settings
Default settings The following tables show the default settings as well as the range for various parameters. The parameters can be accessed on three levels. ● Read Only Allows no configuration. The user is only able to view the parameter values. No PIN code required.
Page 262: Process Values
Default settings C.2 Process Values Process Values Table C- 2 Massflow HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.1.1 Unit Select unit for displayed mass kg/s g/s, g/min, User flow rate. Unit is not applied at g/h, kg/s, communication interface.
Page 263 Default settings C.2 Process Values Table C- 3 Volumeflow HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.2.1 Unit Select unit for displayed volume L/s, L/min, User flow rate. Unit is not applied at L/h, L/d, communication interface.
Page 264 Default settings C.2 Process Values HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.2.7 Alarm Hysteresis Enter the hysteresis to avoid User unwanted rapid switching. 2.2.2.8 Decimal Places Define the decimal point for the User • process value displayed in the •...
Page 265 Default settings C.2 Process Values HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.3.7 Decimal Places Define the decimal point for the User • process value displayed in the • Local User Interface. • • • •...
Page 266 Default settings C.2 Process Values Table C- 5 Flow Adjustment HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.4.1 Adjustment Factor Adjust displayed flow. Elimi- Expert nates inaccuracies caused by process conditions. Table C- 6 Density HMI menu ID Parameter Description...
Page 267 Default settings C.2 Process Values HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.5.10 Density Adjustment 2.2.5.10.1 Adjustment Factor Set compensation factor to Expert adjust density calculation. 2.2.5.10.2 Adjustment Offset Enter the displayed density Expert adjustment offset. [kg/m³] Table C- 7 Fluid Temperature...
Page 268 Default settings C.2 Process Values Table C- 8 Fraction HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.7.1 Measurement Mode Select between mass fraction Massflow User Massflow • and volume fraction measure- Volu- • ment. meflow 2.2.7.2 Unit Select unit for displayed fraction...
Page 269 Default settings C.2 Process Values HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.7.3 Active Fraction Select the Fraction A / Fraction °Brix User American • B or ° Concentration Petroleum Institute (API) number Balling • °Baumé...
Page 270 Default settings C.2 Process Values HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.7.5.2 Upper Limit Alarm Set upper limit alarm. Alarm is User displayed if fraction A value is above the limit. 2.2.7.5.3 Upper Limit Warning Set upper limit warning.
Page 271 Default settings C.2 Process Values HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.7.7 Fraction A % 2.2.7.7.1 Upper Limit Alarm Set upper limit alarm. Alarm is 0.0 to 100.0 User displayed if fraction A % value is above the limit.
Page 272: Totalizer
Default settings C.3 Totalizer HMI menu ID Parameter Description Default value Value range Access level [unit] 2.2.7.9 Fraction Adjustment 2.2.7.9.1 Adjustment Factor Enter the displayed fraction flow Expert adjustment factor. 2.2.7.9.2 Adjustment Offset Enter the displayed fraction flow Expert adjustment offset. : See Sensor dimension dependent default settings (Page 373) Totalizer Table C- 9...
Page 273 Default settings C.3 Totalizer HMI menu ID Parameter Description Default value Value range Access level [unit] 2.3.1.6 Upper Limit Warning Set upper limit warning. Waning [kg] User is displayed if totalizer 1 value is above the limit. 2.3.1.7 Lower Limit Warning Set lower limit alarm.
Page 274 Default settings C.3 Totalizer Table C- 10 Totalizer 2 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.3.2.1 Process Value Select process value for totali- Massflow User Massflow • zation. Volu- • meflow Corrected • Volu- meflow Fraction A •...
Page 275 Default settings C.3 Totalizer HMI menu ID Parameter Description Default value Value range Access level [unit] 2.3.2.6 Upper Limit Warning Set upper limit warning. Waning User is displayed if totalizer 2 value is above the limit. 2.3.2.7 Lower Limit Warning Set lower limit alarm.
Page 276 Default settings C.3 Totalizer Table C- 11 Totalizer 3 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.3.3.1 Process Value Select process value for totali- Massflow User Massflow • zation. Volu- • meflow Corrected • Volu- meflow Fraction A •...
Page 277 Default settings C.3 Totalizer HMI menu ID Parameter Description Default value Value range Access level [unit] 2.3.3.6 Upper Limit Warning Set upper limit warning. Waning User is displayed if totalizer 1 value is above the limit. 2.3.3.7 Lower Limit Warning Set lower limit alarm.
Page 278: Inputs/Outputs
Default settings C.4 Inputs/Outputs Inputs/Outputs Table C- 12 Current Output (1) HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.1.1 Process Value Select process value for current Massflow User Massflow • output. Volumeflow • Density • 2.4.1.2 HART Mode Select for single point or multi-...
Page 279 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.1.8 Fail Safe Mode Select current output reaction in Minimum Cur- User Minimum • case of a fault. rent Current Maximum • Current Last Good •...
Page 280 Default settings C.4 Inputs/Outputs Table C- 13 Signal Output (2) HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.1 Operation Mode Set the output functionality. User • Current Out- • Frequency • Output Pulse Output • Status Output •...
Page 281 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.4 Current Mode Select current output scaling 4-20mA User 4-20 mA • according to desired measure- NAMUR (3.5) NAMUR (3.5 ment range and fail-safe mode. 3.8-20.5 (22.6) mA) 3.8 mA - 20.5 mA (22.6...
Page 282 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.7 Filter Time Constant Set filter time constant. Defines 0.0 to 100.0 User the damping of the current output signal. 2.4.2.8 Fail Safe Mode Select current output reaction in Minimum Current User...
Page 283 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.14 Flow Value High Assign process value to upper User output frequency "Frequency Value Low". 2.4.2.15 Flow Value Low Assign process value to upper User output frequency "Frequency Value High".
Page 284 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.19 Process Value Select process value for pulse Massflow User Massflow • output. Volumeflow • Corrected • Volumeflow • Fraction A • Fraction B •...
Page 285 Process (2) Alarms User 2.4.2.32 Simulation Alarms User 2.4.2.33 Input/Output Alarms User 2.4.2.34 Alarm Class Select one or more Siemens User Maintenance • alarm classes. The output is Alarm active when alarm in selected Function • alarm class occurs. check Process Value •...
Page 286 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.37 On Delay Set the time delay between 0 to 100.0 User alarm condition and activating the output. Allows to ignore transient fault conditions. 2.4.2.38 Off Delay Set the time delay between...
Page 287 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.2.39.3 Current (mA) Define the decimal point dis- User • played for the process value. • • • • • • 2.4.2.39.4 Time (s) Define the decimal point dis- User •...
Page 288 Default settings C.4 Inputs/Outputs Table C- 14 Signal Output (3) HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.1 Operation Mode Set the output functionality. User • Current Out- • Frequency • Output Pulse Output • Status Output •...
Page 289 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.4 Current Mode Select current output scaling 4-20mA User 4-20 mA • according to desired measure- NAMUR (3.5) NAMUR (3.5 ment range and fail-safe mode. 3.8-20.5 (22.6) mA) 3.8 mA - 20.5 mA (22.6...
Page 290 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.7 Filter Time Constant Set filter time constant. Defines 0.0 to 100.0 User the damping of the current output signal. 2.4.3.8 Fail Safe Mode Select current output reaction in Minimum Cur- User...
Page 291 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.15 Flow Value High Assign process value to upper User output frequency "Frequency Value Low". 2.4.3.14 Flow Value Low Assign process value to upper User output frequency "Frequency Value High".
Page 292 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.19 Fail Safe Value Define fail-safe frequency out- 0.0 to 12500.0 User put value if "Fail Safe Mode" [Hz] parameter is set to ’User De- fined Value’.
Page 293 2.4.3.33 Process (2) Alarms User 2.4.3.34 Simulation Alarms User 2.4.3.35 Input/Output Alarms User 2.4.3.36 Alarm Class Select one or more Siemens Process Value User Maintenance • alarm classes. The output is Alarm Alarm active when alarm in selected Function •...
Page 294 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.37 Alarm Class Select one or more NAMUR Out of specifica- User Failure • alarm classes. The output is tion Function • active when alarm in selected check alarm class occurs.
Page 295 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.3.41.2 Pulse Width (s) Set the number of places after User • the decimal point displayed for • the process value. • • • •...
Page 296 User 2.4.4.7 Simulation Alarms Alarm Class User 2.4.4.8 Input/Output Alarms Alarm Class User 2.4.4.9 Alarm Class Select one or more Siemens Process Value User Maintenance • alarm classes. The output is Alarm Alarm active when alarm in selected Function •...
Page 297 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.4.12 On Delay Set the time delay between 0 to 100.0 User alarm condition and activating the output. Allows to ignore transient fault conditions. 2.4.4.13 Off Delay Set the time delay between...
Page 298 Default settings C.4 Inputs/Outputs Table C- 16 Signal Input (3) HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.5.1 Operation Mode Select the signal input func- User • Delay Time tionality. Reset totalizer • Reset totalizer •...
Page 299 Default settings C.4 Inputs/Outputs Table C- 17 Signal Output (4) HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.1 Operation Mode Set the output functionality. User • Current Out- • Frequency • Output Pulse Output • Status Output •...
Page 300 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.4 Current Mode Select current output scaling 4-20mA User 4-20 mA • according to desired measure- NAMUR (3.5) NAMUR (3.5 ment range and fail-safe mode. 3.8-20.5 (22.6) mA) 3.8 mA - 20.5 mA (22.6...
Page 301 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.7 Filter Time Constant Set filter time constant. Defines 0.0 to 100.0 User the damping of the current output signal. 2.4.6.8 Fail Safe Mode Select current output reaction in Minimum Cur- User...
Page 302 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.14 Flow Value High Assign process value to upper User output frequency "Frequency Value Low". 2.4.6.15 Flow Value Low Assign process value to upper User output frequency "Frequency Value High".
Page 303 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.19 Process Value Select process value for pulse Massflow User Massflow • output. Volumeflow • Corrected • Volumeflow • Fraction A • Fraction B •...
Page 304 2.4.6.31 Process (2) Alarms User 2.4.6.32 Simulation Alarms User 2.4.6.33 Input/Output Alarms User 2.4.6.34 Alarm Class Select one or more Siemens Process Value User Maintenance • alarm classes. The output is Alarm Alarm active when alarm in selected Function •...
Page 305 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.37 On Delay Set the time delay between 0 to 100.0 User alarm condition and activating the output. Allows to ignore transient fault conditions. 2.4.6.38 Off Delay Set the time delay between...
Page 306 Default settings C.4 Inputs/Outputs HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.6.39.3 Current (mA) Define the decimal point dis- User • played for the process value. • • • • • • 2.4.6.39.4 Time (s) Define the decimal point dis- User •...
Page 307 User 2.4.7.7 Simulation Alarms Alarm Class User 2.4.7.8 Input/Output Alarms Alarm Class User 2.4.7.9 Alarm Class Select one or more Siemens Process Value User Maintenance • alarm classes. The output is Alarm Alarm active when alarm in selected Function •...
Page 308 Default settings C.4 Inputs/Outputs Table C- 19 Signal Input (4) HMI menu ID Parameter Description Default value Value range Access [unit] level 2.4.8.1 Operation Mode Select the signal input function- User • Delay Time ality. Reset totalizer • Reset totalizer •...
Page 309: Dosing
Default settings C.5 Dosing Dosing Table C- 20 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.1 Dosing Mode Select the dosing mode to con- User • trol the valve(s) on the output. • Stage Dosing •...
Page 310 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.5.2 Unit Select unit for the recipe. Unit is User • not applied at communication Nm³ • interface. • Sft³ • Sm³ • 2.5.5.3 Amount Define the filling amount.
Page 311 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.5.5.2 Fixed Compensation Define the fixed pre-stop value. [kg] User The value is subtracted from "Amount" to compensate for application delays in closing the valves.
Page 312 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.5.6.5 Stage 2 Secondary Define the dosing amount value User Close to close the secondary valve. [kg] The value is in % of defined dosing amount.
Page 313 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.5.6.9 Fully Open Define the dosing amount value User at which the valve will transition [kg] from partial flow to full flow. 2.5.5.6.10 Partially Closed Define the dosing amount value User at which the valve will transition...
Page 314 Default settings C.5 Dosing Table C- 22 Recipe 2 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.6.1 Name Define the name of the recipe. User Switching between recipes is done in dosing operating view. 2.5.6.2 Unit Select unit for the recipe.
Page 315 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.6.4 Decimal Places Define the decimal point for the User • process value displayed in the • Local User Interface. • • • • •...
Page 316 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.6.6.4 Stage 2 Secondary Define the dosing amount value 0.0 to 100.0 User Open to open the secondary valve. The value is in % of defined dosing amount.
Page 317 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.6.6.4 Stage 2 Secondary Define the dosing amount value 0.0002 User Open to open the secondary valve. [normal m The value is in % of defined dosing amount.
Page 318 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.6.7.3 Overrun mode Enable or disable dosing User • amount supervision. An alarm is • raised and valve(s) closed if dosing amount is exceeded. 2.5.6.7.4 Overrun value Define the dosing overrun...
Page 319 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.7.3 Amount Define the filling amount. The 0.001 User valve will be closed and filling stopped when defined amount is reached. 2.5.7.3 Amount Define the filling amount. The 0.001 User valve will be closed and filling...
Page 320 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.7.5.2 Fixed Compensation Define the fixed pre-stop value. [normal m User The value is subtracted from "Amount" to compensate for application delays in closing the valves.
Page 321 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.7.6.4 Stage 2 Secondary Define the dosing amount value 0.0002 User Open to open the secondary valve. The value is in % of defined dosing amount.
Page 322 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.7.6.9 Fully Open Define the dosing amount value User at which the valve will transition [normal m from partial flow to full flow. 2.5.7.6.10 Partially Closed Define the dosing amount value 0.001...
Page 323 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.8.2 Unit Select unit for the recipe. Unit is User not applied at communication interface. 2.5.8.2 Unit Select unit for the recipe. Unit is User •...
Page 324 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.8.5.2 Fixed Compensation Define the fixed pre-stop value. [kg] User The value is subtracted from "Amount" to compensate for application delays in closing the valves.
Page 325 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.8.6.5 Stage 2 Secondary Define the dosing amount value User Close to close the secondary valve. [kg] The value is in % of defined dosing amount.
Page 326 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.8.6.9 Fully Open Define the dosing amount value User at which the valve will transition [kg] from partial flow to full flow. 2.5.8.6.10 Partially Closed Define the dosing amount value User at which the valve will transition...
Page 327 Default settings C.5 Dosing Table C- 25 Recipe 5 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.9.1 Name Define the name of the recipe. User Switching between recipes is done in dosing operating view. 2.5.9.2 Unit Select unit for the recipe.
Page 328 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.9.4 Decimal Places Define the decimal point for the User • process value displayed in the • Local User Interface. • • • • •...
Page 329 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.9.6.4 Stage 2 Secondary Define the dosing amount value 0.0 to 100.0 User Open to open the secondary valve. The value is in % of defined dosing amount.
Page 330 Default settings C.5 Dosing HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.9.6.4 Stage 2 Secondary Define the dosing amount value 0.0002 User Open to open the secondary valve. [normal m The value is in % of defined dosing amount.
Page 331: Zero Point Adjustment
Default settings C.6 Zero Point Adjustment HMI menu ID Parameter Description Default value Value range Access level [unit] 2.5.9.7.3 Overrun mode Enable or disable dosing User • amount supervision. An alarm is • raised and valve(s) closed if dosing amount is exceeded. 2.5.9.7.4 Overrun value Define the dosing overrun...
Page 332: Safe Operation
Default settings C.7 Safe Operation Safe Operation Table C- 27 Safe Operation HMI menu ID Parameter Description Default value Value range Access level [unit] 2.7.1 Safety Mode Operation mode for safety criti- Read only cal applications. 2.7.2 Enter Safe Configura- Setup parameters {refer to Non-Safe Oper- User...
Page 333: Display
Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.7.9 Safety transition errors Safety transition error number Read only {refer to Safety Manual} 2.7.10 Safety error reasons Safety error number {refer to Read only Safety Manual} Display Table C- 28...
Page 334 Default settings C.8 Display Table C- 29 View 1 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.4.1 View Select the view type. Three Values User Single • Value Three • Values 1 Value • and Bar- graph 1 Value •...
Page 335 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.4.3 2nd Process Value Select the second process Density User Massflow • value for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 336 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.4.5 4th Process Value Select the fourth process value Volumeflow User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 337 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.4.7 6th Process Value Select the sixth process value Totalizer 2 User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 338 Default settings C.8 Display Table C- 30 View 2 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.5.1 Enable or disable Select whether the view is visi- Enabled User Disable • ble. Enabled • 2.8.5.2 View Select the view type.
Page 339 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.5.4 2nd Process Value Select the second process Massflow User Massflow • value for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 340 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.5.6 4th Process Value Select the fourth process value Volumeflow User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 341 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.5.8 6th Process Value Select the sixth process value Totalizer 2 User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 342 Default settings C.8 Display Table C- 31 View 3 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.6.1 Enable or disable Select whether the view is visi- Enabled User Disable • ble. Enabled • 2.8.6.2 View Select the view type.
Page 343 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.6.4 2nd Process Value Select the second process Density User Massflow • value for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 344 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.6.6 4th Process Value Select the fourth process value Volumeflow User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 345 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.6.8 6th Process Value Select the sixth process value Totalizer 2 User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 346 Default settings C.8 Display Table C- 32 View 4 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.7.1 Enable or disable Select whether the view is visi- Enabled User Disable • ble. Enabled • 2.8.7.2 View Select the view type.
Page 347 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.7.4 2nd Process Value Select the second process Density User Massflow • value for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 348 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.7.6 4th Process Value Select the fourth process value Volumeflow User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 349 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.7.8 6th Process Value Select the sixth process value Totalizer 2 User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 350 Default settings C.8 Display Table C- 33 View 5 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.8.1 Enable or disable Select whether the view is visi- Enabled User Disable • ble. Enabled • 2.8.8.2 View Select the view type.
Page 351 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.8.4 2nd Process Value Select the second process Fraction B User Massflow • value for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 352 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.8.6 4th Process Value Select the fourth process value Volumeflow User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 353 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.8.8 6th Process Value Select the sixth process value Totalizer 2 User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 354 Default settings C.8 Display Table C- 34 View 6 HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.9.1 Enable or disable Select whether the view is visi- Enabled User Disable • ble. Enabled • 2.8.9.2 View Select the view type.
Page 355 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.9.4 2nd Process Value Select the second process Density User Massflow • value for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 356 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.9.6 4th Process Value Select the fourth process value Volumeflow User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 357 Default settings C.8 Display HMI menu ID Parameter Description Default value Value range Access level [unit] 2.8.9.8 6th Process Value Select the sixth process value Totalizer 2 User Massflow • for the view. Volume- • flow Density • Fluid • Tempera- ture Corrected...
Page 358: Maintenance & Diagnostics
3.1.5 Startup Date Enter the installation date of the 2012-01-01 User device. 00:00 3.1.6 Manufacturer Device manufacturer Siemens Read only 3.1.7 Product Name Also shown on the device SITRANS Read only nameplate. FC430 3.1.8 Version Product version. Also shown on Read only the device nameplate.
Page 359 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.1.11 Hardware Revision System hardware version. Expert 3.1.12 Final Assembly Number Materials and components used User in the final assembly. Table C- 37 Transmitter HMI menu ID Parameter...
Page 360 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.2.6.1 Sensor (1) Alarms Sup- Auto User pressed 3.2.6.2 Sensor (2) Alarms Sup- Auto User pressed 3.2.6.3 Process (1) Alarms Auto User Suppressed 3.2.6.4 Process (2) Alarms...
Page 361 Default settings C.9 Maintenance & Diagnostics Table C- 41 Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.4.1 Sensor HW Diagnostic • • 3.4.2 Sensor 3.4.2.1 Driver Current The actual current value that Read only excites the sensor.
Page 362 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.4.4.8 Pulse Value (3) Actual value of pulse output 3. Read only 3.4.4.9 Frequency Value (3) Actual value of frequency out- [Hz] Read only put 3.
Page 363 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.5.6.7 Dens. Comp. Frame Factory-set frame temperature Read only Temp. compensation for density calcu- lation. 3.5.6.8 Wetted Materials Type of wetted material of the Read only sensor.
Page 364 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.7.1.2.8 Simulated Value Enter the status output simula- User • tion value. • 3.7.1.3 Signal Output (3) 3.7.1.3.1 Simulation Enable or disable simulation of Disable User Disable...
Page 365 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.7.1.6.5 Simulation Enable or disable simulation of Disable User Disable • pulse output. Enabled • 3.7.1.6.6 Simulated Value Enter the pulse output simula- 0.0 to User tion value.
Page 366 Default settings C.9 Maintenance & Diagnostics HMI menu ID Parameter Description Default value Value range Access level [unit] 3.7.2.4.1 Simulation Enable or disable simulation. Disable User Disable • Enabled • 3.7.2.4.2 Density Value Set density simulation value for 1000 User all outputs.
Page 367 3.7.3.2.6 Input/Output Alarms Simulate single or multiple User alarms. Select from alarm lists, see Alarm messages (Page 172). 3.7.3.3 Alarm Class Select Siemens standard alarm Process Value User Mainte- • class. Alarm status is activated Alarm nance on all outputs.
Page 368 Default settings C.9 Maintenance & Diagnostics Table C- 47 Aerated Flow HMI menu ID Parameter Description Default value Value range Access level [unit] 3.9.1 Aerated Flow Filter Set the process value filter for Auto User • aerated flow. Auto means that (non-SIL vari- •...
Page 369: Communication
Default settings C.10 Communication C.10 Communication Table C- 49 Communication HMI menu ID Parameter Description Default value Value range Access level [unit] Polling Address (SW) Enter the device HART ad- 0 to 63 User dress. HW address device address overwrites the SW device address.
Page 370 Default settings C.10 Communication Table C- 50 Mapping of Variables HMI menu ID Parameter Description Default value Value range Access level [unit] 4.6.1 SV Process Value Select the Secondary HART Volumeflow User Massflow • process value. Volume- • flow Density •...
Page 371 Default settings C.10 Communication HMI menu ID Parameter Description Default value Value range Access level [unit] 4.6.3 QV Process Value Select the Quaternary HART Fluid Tempera- User Massflow • process value. ture Volume- • flow Density • Fluid • Tempera- ture Corrected •...
Page 372 Default settings C.10 Communication Table C- 51 HART Units HMI menu ID Parameter Description Default value Value range Access level [unit] 4.7.1 Massflow Unit Select massflow unit for the kg/h g/s, g/min, User communication interface g/h, kg/s, (mass/time). kg/min, kg/h, kg/d, t/min, t/h, t/d, lb/s, lb/min, lb/h,...
Page 373 Default settings C.10 Communication HMI menu ID Parameter Description Default value Value range Access level [unit] 4.7.5 Fluid Temperature Unit Select temperature unit for the °C °C, °F, °R, K User communication interface. 4.7.6 Fraction Unit Select fraction unit for the kg/h g/s, g/min, User...
Page 374: Security
Default settings C.11 Security HMI menu ID Parameter Description Default value Value range Access level [unit] 4.7.9 Totalizer 2 Unit Select Totalizer 2 unit for the NL, Nm³, SL, User communication interface. Unit is Sft³, Sm³ not applied at Local User Inter- face.
Page 375: Language
Default settings C.12 Language C.12 Language Table C- 53 Language HMI menu ID Parameter Description Default value Value range Access level [unit] Language Select the local display lan- English User English • guage Deutsch • Italiano • Français • Español •...
Page 376 Default settings C.13 Sensor dimension dependent default settings Sensor dimension Default value Unit Range DN 25 0.0245 kg/s 0 to +24.5 DN 50 0.0982 kg/s 0 to +98.2 DN 80 0.251 kg/s 0 to +251 Volumeflow Sensor dimension Default value Unit Range Upper Limit Alarm and Upper Limit Warning...
Page 377 Default settings C.13 Sensor dimension dependent default settings Sensor dimension Default value Unit Range Alarm Hysteresis DN 15 normal m 0 to +8.84 DN 25 normal m 0 to +24.5 DN 50 normal m 0 to +98.2 DN 80 normal m 0 to +251 Low Flow Cut-Off DN 15...
Page 378 Default settings C.13 Sensor dimension dependent default settings Zero Point Adjustment Sensor dimension Default value Unit Range Standard Deviation Limit DN 15 0.0004 kg/s DN 25 0.004 kg/s DN 50 0.015 kg/s DN 80 0.019 kg/s Offset Limit DN 15 0.031944444 kg/s DN 25...
Page 379 Default settings C.13 Sensor dimension dependent default settings Sensor dimension Default value Unit Range DN 25 Massflow kg/s -24.5 to +24.5 Volumeflow 0.000098 -0.015 to +0.015 Corrected Volumeflow 0.000098 normal m³/s -0.015 to +0.015 DN 50 Massflow 19.64 kg/s -98.2 to +98.2 Volumeflow 0.0003928 -0.059 to +0.059...
Page 380 Default settings C.13 Sensor dimension dependent default settings FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 381: Zero Point Adjustment
Do not change any other parameter during the zero point adjustment procedure. Automatic zero point adjustment SITRANS FC430 measures and calculates the correct zero point automatically. The automatic zero point adjustment of the flowmeter is set by the following parameters: ●...
Page 382 Zero point adjustment Zero point calculation During zero point adjustment, an average value is automatically calculated using the following formula: Zero Point Offset Value Average of N flow values is an instantaneous flow value sampled in the time domain N = Number of samples during zero point adjustment The offset value must be within the determined "...
Page 383 Zero point adjustment The standard deviation must be within the determined "Zero Point Standard Deviation Limit" (menu item number 2.6.4). Note Exceeded standard deviation limit If the standard deviation is greater than the configured limit, proceed as follows: • Check that the tube is completely filled and that the flow rate is absolute zero. •...
Page 384 Zero point adjustment FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 385: Glossary
Glossary BRIX Degrees Brix (symbol °Brix) is a measurement of the mass ratio of dissolved sugar to water in a liquid. A 25 °Bx solution is 25% (w/w), with 25 grams of sugar per 100 grams of solution. Coriolis The Coriolis effect is an apparent deflection of moving objects from a straight path when they are viewed from a rotating frame of reference.
Page 386 All these factors are customer specific and can’t be simulated at the factory. Therefore Siemens recommends to carry out a zero point adjustment before use. FC430 with HART...
Page 387: Index
Index Access Management, 256 Decontamination, 185 Accuracy Default settings Density, 196 Aerated flow, 366 Massflow, 195 Basic settings, 259 Temperature, 196 Characteristics, 360 Aerated flow, 254 Communication, 367 Alarm classes, 171 Display, 331 Alarm classes, overview, 171 Dosing, 307 Alarm symbols, overview, 171 Inputs/Outputs, 276 Alarms, 249 Language, 373...
Page 388 Index Flow documentation, 19 Support, 183 Failure, 172 Items supplied, 11 Flow direction, 48 Function check, 171, 172 Local display Turning, 45 Handling, 51 Local user interface, 109 HART Low flow cut-off, 135, 190 Modem, 39 Network, 91 Slave address switch, 37 HART communication, 195 HART Units, 255 Main menu, 231...
Page 389 Scope of delivery, 12 Self test, 255 Sensor orientation, (See Installation) SensorFlash, 193, 252 Service, 181, 183 Service information, 181 Siemens standard alarm classes, 171 Signal Input, 239, 241 Signal output, 237, 238, 240 Signal processing, 40 Simulate Alarm, 254...
Page 390 Index FC430 with HART Operating Instructions, 05/2015, A5E03361511-AF...
Page 391 For more information www.siemens.com/flow Siemens A/S Subject to change without prior notice Flow Instruments Order No.: A5E03361511 Nordborgvej 81 Lit. No.: A5E03361511-AF DK-6430 Nordborg © Siemens AG 05.2015 A5E03361511 www.siemens.com/processautomation...

Siemens SITRANS FC430 Operating Instructions Manual

1 Introduction

2 Safety Notes

3 Description

4 Installing/Mounting

5 Connecting

6 Commissioning

7 Operating

8 Functions

9 Custody Transfer

10 Alarms and System Messages

11 Service and Maintenance

12 Troubleshooting/Faqs

13 Technical Data

14 Spare Parts/Accessories

15 Dimensions and Weight

Quick Links

Related Manuals for Siemens SITRANS FC430

Summary of Contents for Siemens SITRANS FC430
