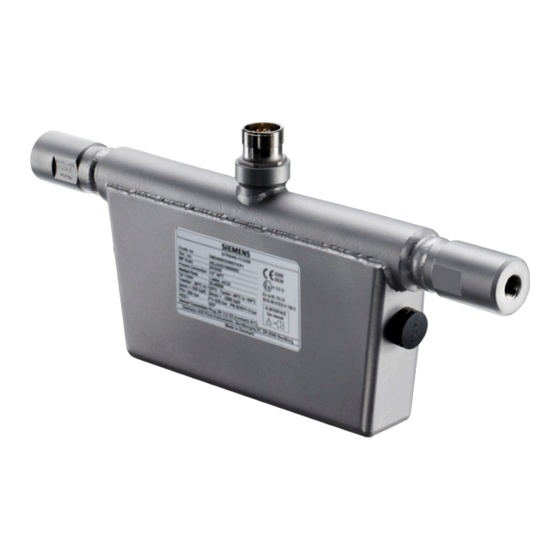

Coriolis flowmeters
SITRANS FCS200
Operating instructions • 02/2011
SITRANS F

Advertisement

   Related Manuals for Siemens SITRANS F

   Summary of Contents for Siemens SITRANS F

  • Page 1 Coriolis flowmeters SITRANS FCS200 Operating instructions • 02/2011 SITRANS F...
  • Page 3: A5e02508199

    Introduction Safety notes Description SITRANS F Installing/Mounting Coriolis Flowmeters SITRANS FCS200 Connecting Commissioning Operating Instructions Service and maintenance Troubleshooting/FAQs Technical data Appendix Coriolis flow sensor for use with SITRANS F C transmitter types SIFLOW FC070 and MASS 6000 02/2011 A5E02508199-01...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5: Table Of Contents

    Table of contents Introduction..............................5 Items supplied ..........................5 Device identification ........................5 History ............................6 Further Information ........................7 Notes on warranty..........................7 Safety notes............................... 9 General safety instructions ......................9 Laws and directives ........................9 Installation in hazardous area ......................10 Certificates ...........................12 Description............................... 13 Theory of operation........................14 Installing/Mounting...........................
  • Page 6 Table of contents Troubleshooting/FAQs..........................27 General information........................27 Step 1: Inspecting the application ....................27 Step 2: Improving the application....................28 Technical data ............................29 Pressure / temperature range ..................... 30 Pressure drop..........................31 Electrical connection schematics ....................32 Dimensions ..........................34 Appendix..............................
  • Page 7: Introduction

     SITRANS FCS200  Sensorprom Memory unit  Calibration certificate  Quick Start Guide  SITRANS F C Literature CD-ROM Device identification Inspection 1. Check for mechanical damage due to possible improper handling during shipment. All claims for damage are to be made promptly to the shipper.
  • Page 8: History

    Introduction 1.3 History Identification Entity Intrinsically safe for: CI, I, DIV 1,GPS ABCD, T* Controldrawing nr. A5E03442871A ① Order No. Device specific code number ② Serial No. Device specific serial number ③ Connection Process connector type ④ Material Tube material designation ⑤...
  • Page 9: Further Information

    The sales contract contains all obligations on the part of Siemens as well as the complete and solely applicable warranty conditions. Any statements regarding device versions described in the manual do not create new warranties or modify the existing warranty.
  • Page 10 Introduction 1.5 Notes on warranty SITRANS FCS200 Operating Instructions, 02/2011, A5E02508199-01...
  • Page 11: Safety Notes

    Safety notes General safety instructions CAUTION Correct, reliable operation of the product requires proper transport, storage, positioning and assembly as well as careful operation and maintenance. Only qualified personnel should install or operate this instrument. Note Alterations to the product, including opening or improper modifications of the product, are not permitted.
  • Page 12: Installation In Hazardous Area

    WARNING Due to the increased safety concept, SITRANS F C MASS 6000 and SIFLOW FC070 Ex have to be mounted in the safe area. SITRANS F C MASS 6000 Ex d is allowed for use in hazardous area...
  • Page 13 Safety notes 2.3 Installation in hazardous area Table 2- 3 Sensor circuit Sensor circuit (Terminal 5-6 and 7-8) 30 V DC 50 mA 0.4 W Insignificant 14 mH 0.3 V AC Temperature specifications for use in hazardous area Table 2- 4 Temperature specifications Temperature class Max.
  • Page 14: Certificates

    Safety notes 2.4 Certificates Certificates Certificates are posted on the Internet and on the documentation CD-ROM shipped with the device. See also Certificates (http://www.siemens.com/processinstrumentation/certificates) UL control drawings on the internet (http://www.automation.siemens.com/w1/automation- technology-process-instrumentation-18092.htm#lb-61,related-installationdrawings) SITRANS FCS200 Operating Instructions, 02/2011, A5E02508199-01...
  • Page 15: Description

    SITRANS FCS200 can be remote mounted with the following transmitter types: ● SIFLOW FC070 and SIFLOW FC070 Ex ● SITRANS F C MASS 6000, MASS 6000 Ex and SITRANS F C MASS 6000 Ex d Further information about the transmitter can be found in the relevant Operating Instructions available on the SITRANS F literature CD-ROM or on the flow documentation webpage (http://www.siemens.com/flowdocumentation).
  • Page 16: Theory Of Operation

    SENSORPROM All SITRANS F C Coriolis flow meters feature a SENSORPROM memory unit which stores sensor-specific calibration data and transmitter settings for the lifetime of the product. The factory settings matching the sensor are stored in the SENSORPROM.
  • Page 17: Installing/mounting

    Installing/Mounting SITRANS F flowmeters with minimum IP67/NEMA 4X enclosure rating are suitable for indoor and outdoor installations. ● Make sure that pressure and temperature specifications indicated on the device nameplate / label will not be exceeded. WARNING Installation in hazardous location Special requirements apply to the location and interconnection of sensor and transmitter.
  • Page 18: Orienting The Sensor

    Installing/Mounting 4.2 Orienting the sensor Rupture disc The two black rupture discs prevent overpressure in the enclosure. In case of a tube fracture generating overpressure in the enclosure, the rupture discs will immediately burst and keep the pressure at a safe level. Figure 4-1 Rupture safety disc Note...
  • Page 19: Mounting The Sensor

    Installing/Mounting 4.3 Mounting the sensor Orienting the sensor SITRANS FCS200 operates in any orientation, but Siemens recommends orienting the sensor in one of the following ways: 1. Vertical orientation with an upwards flow Figure 4-2 Vertical orientation, upwards flow 2. Horizontal installation, tubes sideways...
  • Page 20 Installing/Mounting 4.3 Mounting the sensor SITRANS FCS200 Avoid vibrations ● Make sure that any valves or pumps upstream of the sensor do not cavitate and do not send vibration into the sensor. Figure 4-5 Eliminate vibrations Avoid cross talk If operating more than one flowmeter in one or multiple interconnected pipelines there is a risk of cross talk.
  • Page 21: Connecting

    Connecting The following contains a short description of how to connect the sensor for operation with a SITRANS F C MASS 6000 or SIFLOW FC070 transmitter. Note For more information, including information about connecting the sensor to the transmitter, refer to the Operating Instructions for the respective transmitters.
  • Page 22: Wiring Fcs200

    Only commission the device after it has been properly connected and, if required, closed. Note Ordering information Find SITRANS F C standard blue cable order information in the FI01 catalog: Catalog process instrumentation (http://www.siemens.com/processinstrumentation/catalogs). See also Electrical connection schematics (Page 32)
  • Page 23: Commissioning

    Commissioning Before commissioning it must be checked that: ● The device has been installed and connected in accordance with the guidelines provided in chapter 4 "Installing / Mounting (Page 15)" and 5 "Connecting (Page 19)" ● Device installed in hazardous location meets the requirements described in "Installation in hazardous location (Page 10)"...
  • Page 24 Commissioning 6.1 Zero point adjustment 3. Stop the flow while pumping by closing the outlet valve and then the inlet valve Note  The flow must be completely stopped and the sensor completely filled with gas.  The zero point adjustment has to be carried out under stable pressure conditions. 4.
  • Page 25: Service And Maintenance

    ● Seal integrity of the process connections, cable entries, and cover screws ● Reliability of power supply, lightning protection, and grounds Recalibration Siemens A/S Flow Instruments offers to recalibrate the sensor. The following calibrations are offered as standard: ● Standard matched pair calibration...
  • Page 26: Technical Support

    ● Information about field service, repairs, spare parts and lots more under "Services." Additional Support Please contact your local Siemens representative and offices if you have additional questions about the device Find your contact partner at: Local contact person (http://www.automation.siemens.com/partner)
  • Page 27: Transportation And Storage

    ● Devices/replacement parts should be returned in their original packaging. ● If the original packaging is no longer available, ensure that all shipments are properly packaged to provide sufficient protection during transport. Siemens cannot assume liability for any costs associated with transportation damages.
  • Page 28: Disposal

    Service and maintenance 7.7 Disposal If the device has been operated together with toxic, caustic, flammable or water- damaging products, clean the device before return by rinsing or neutralizing. Ensure that all cavities are free from dangerous substances. Then, double-check the device to ensure the cleaning is completed.
  • Page 29: Troubleshooting/faqs

    Troubleshooting/FAQs General information Incorrect and unstable measurements, especially at low flows, are typically a result of an unstable zero point due to: ● Incorrect installation ● Vibrations/Cross talk In the following a 2 steps guide to troubleshooting is provided: Step 1 Preliminary application inspection Step 2 Application improvement...
  • Page 30: Step 2: Improving The Application

    Troubleshooting/FAQs 8.3 Step 2: Improving the application Step 2: Improving the application Incorrect installation of the sensor Especially for low flow rates, i.e. flow rates less than 10% of the maximum capacity of the flowmeter, it is important that the sensor is correctly and stably installed. If the sensor is not correctly fixed in place, the zero point of the sensor will move, leading to measuring errors.
  • Page 31: Technical Data

    Technical data Table 9- 1 Technical data DN10 DN15 DN25 Nominal diameter DN10 DN15 DN25 Mass flow measuring range 250 (9,2) ... 1.200 (44,1) ... 3.000 (110,2) ... 30.000 (1.102,3) Min ... max. [kg/h (lbs/min)] 2.500 (91,9) 12.000 (440,9) Process temperature [°C -40...+125 (-40...+257) (°F)] Ambient temperature [°C...
  • Page 32: Pressure / Temperature Range

    Technical data 9.1 Pressure / temperature range Table 9- 3 Process connectors DN10 DN15 DN25 ¼" NPT (f) ½" NPT (f) 1" NPT (f)    ½" NPT (f) ¾" NPT (f) 1½" NPT (f)    1" NPT (f) ...
  • Page 33: Pressure Drop

    Technical data 9.2 Pressure drop Table 9- 6 Pressure / temperature range [°C (°F)] -40 (-40) 0 (32) 50 (122) 100 (212) 125 (257) DN10 350 Bar 350 Bar 350 Bar 346 Bar 325 Bar DN15 350 Bar 350 Bar 350 Bar 346 Bar 325 Bar...
  • Page 34: Electrical Connection Schematics

    Technical data 9.3 Electrical connection schematics Figure 9-4 Pressure drop DN25 Electrical connection schematics Electrical connection of FCS200 and SIFLOW FC070 FCS200 Shield Ex Shield Shield Ex DRV + DRV - T In + T In - PU1 + PU1 - Shield Ex Shield PU2 +...
  • Page 35 Technical data 9.3 Electrical connection schematics Electrical connection of FCS200 and MASS 6000 FCS200 ① Driver ② PT 1000 ③ PT 1000 ④ Pick up 2 ⑤ Pick up 1 ⑥ Ground Figure 9-6 Electrical connection, FCS200 and MASS 6000 SITRANS FCS200 Operating Instructions, 02/2011, A5E02508199-01...
  • Page 36: Dimensions

    Technical data 9.4 Dimensions Dimensions Dimensions, DN10 and DN15, VCO and NPT connectors Position DN10 DN10 DN15 with NPT connectors with VCO connectors [mm (inch)] [mm (inch)] [mm (inch)] ① 350 (13.78) 330 (12.99) 450 (17.72) ② 72 (2.84) 72 (2.84) 72 (2.84) ③...
  • Page 37 Technical data 9.4 Dimensions Dimensions, DN25, VCO and NPT connectors Position DN25 DN25 with NPT connectors with VCO connectors [mm (inch)] [mm (inch)] ① 520 (20.47) 550 (21.65) ② 72 (2.84) 72 (2.84) ③ 200 (7.87) 200 (7.87) ④ 357 (14.77) 357 (14.77) ⑤...
  • Page 39: Appendix

    In order to ensure that the ordering data you are using is not outdated, the latest ordering data is always available on the Internet: Catalog process instrumentation (http://www.siemens.com/processinstrumentation/catalogs) Serial number structure The following contains a short description of the serial number structure for SITRANS FCS200 sensors.
  • Page 40 March April June July August September October O, 0 November December According to DIN EN60062 In contrast to DIN EN60062, "Zero" (0) is valid. The letter "O" is not allowed in Siemens serial numbers. SITRANS FCS200 Operating Instructions, 02/2011, A5E02508199-01...
  • Page 41: Glossary

    Glossary ASIC Application-Specific Integrated Circuit is an integrated circuit (IC) customized for a particular use, rather than intended for general-purpose use. Compressed natural gas, or CNG, is natural gas under pressure which remains clear, odorless, and non-corrosive. Vehicles can use natural gas as either a liquid or a gas. Compressed natural gas →...
  • Page 42 All these factors are customer specific and can’t be simulated at the factory. Therefore Siemens recommends to carry out a zero point adjustment before use. SITRANS FCS200...
  • Page 43: Index

    Index Installation Incorrect, 28 Accuracy, 30 Indoor/outdoor, 15 Applications, 13 Mounting of sensor, 17 Orienting the sensor, 17 Safety precautions, 15 Internet Certificates and approvals, 30 Contact person, 7, 24 Compliance, 9 Flowdocumentation, 7 Connection Support, 24 Electrical, (See Electrical connection) Intrinsically safe data, 10 Contact person, 7 Introduction, 5...
  • Page 44 Index System components, 13 Technical data, 29 Temperature specifications, 11 Theory of operation, 14 Type plate, 6 Vibrations, 18, 28 Weight, 29 Wiring, 20, 32, 33 Zero point adjustment, 21 Basic requirements, 21 SITRANS FCS200 Operating Instructions, 02/2011, A5E02508199-01...
  • Page 46 For more information www.siemens.com/flow Siemens A/S Subject to change without prior notice *A5E02508199* Flow Instruments Order No.: A5E02508199 Nordborgvej 81 Lit. No.: A5E02508199-01 DK-6430 Nordborg © Siemens AG 02.2011 www.siemens.com/processautomation...
