Unocode 399 PLUS
7.8 A
CCESS TO BACK

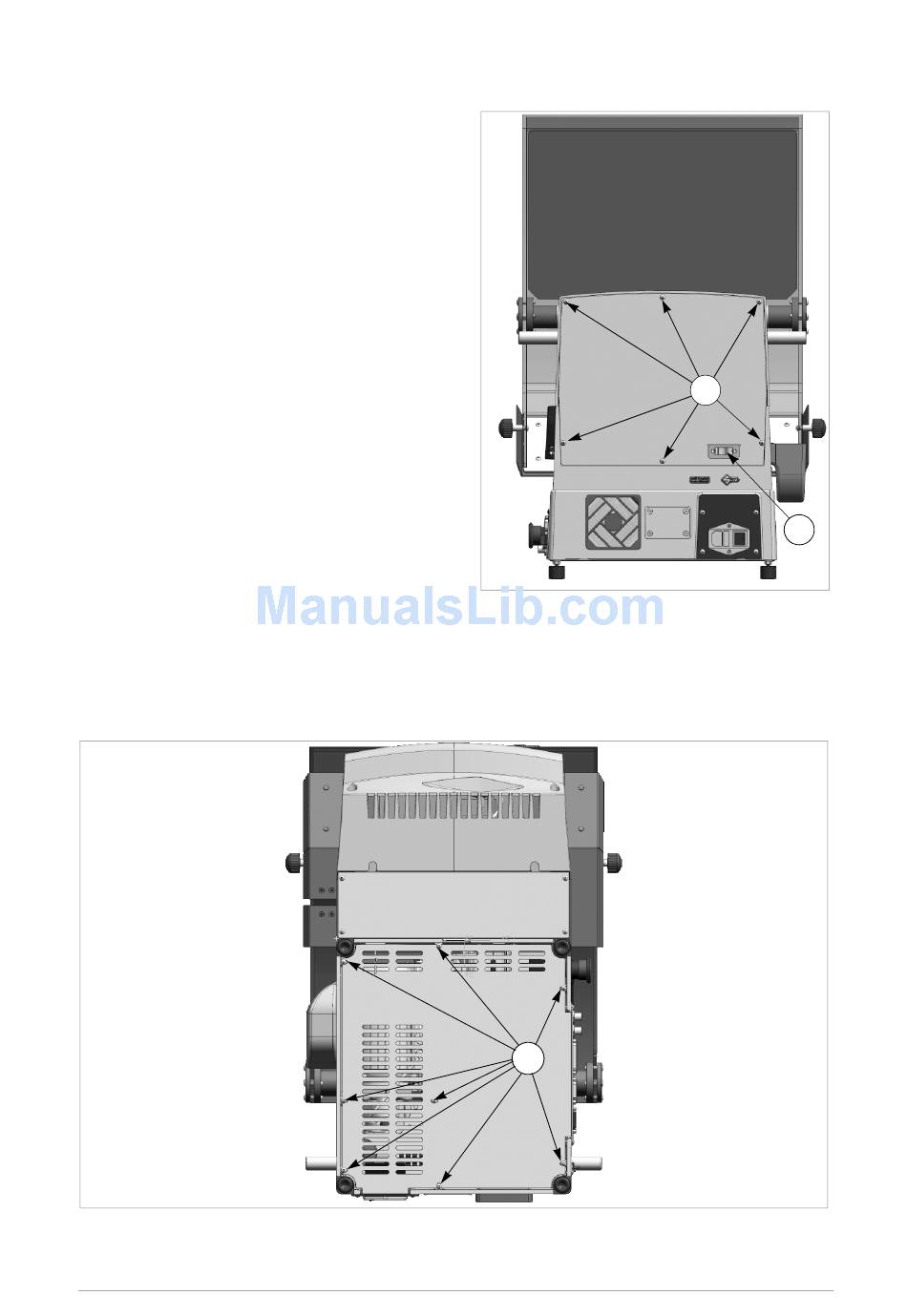

To gain access to the back compartment, proceed as
follows:
1) turn the machine off and unplug it from its power supply
cable.
2) remove the vacuum system's connector (U2) (fig. 7.9).
3) unscrew the 6 (M1) screws that secure the back panel
(fig. 7.9) thus removing it.
7.9 A
CCESS TO BOTTOM COMPARTMENT
To gain access to the bottom compartment, proceed as follows:
1) turn the machine off and unplug it from its power supply cable.
2) remove the vacuum system's connector (U2) (fig. 7.9).
3) turn the machine on its back side.
4) remove the machine's bottom panel by unscrewing the 8 (L1) screws.
Fig. 57
70
C
OMPARTMENT
Fig. 56
Copyright Silca 2016
Operating manual - English
L1
M1
U2
