• Insert the depth symbol (number or letter). Press
ENTER.
• Enter the depth measurement associated to the symbol.
Press ENTER.
Repeat the operation to the last depth.
All measurements are expressed in hundredths
of millimetres or inches, according to the setting
in machine Options (chap.5.9, page 52)
When the operation is finished, press F1 to
continue.
cutting angle
cutting spaces
Fig. 30
• Enter the figure for the cutting space from the key stop to the centre of the first cut and press ENTER.
• Enter the figure for flare related to the set cut and press ENTER.
• Enter the figure for the cutting space from the centre of the first cut to the centre of the second cut and press ENTER.
• Enter the figure for flare related to the set cut and press ENTER.
• Repeat the operation to the last cut.
HEAD stop
When the operation is complete, press F1 to save and
continue. The display will show:
• Press ENTER to save the data.
• Press STOP to go back to the previous menu without saving the
data.

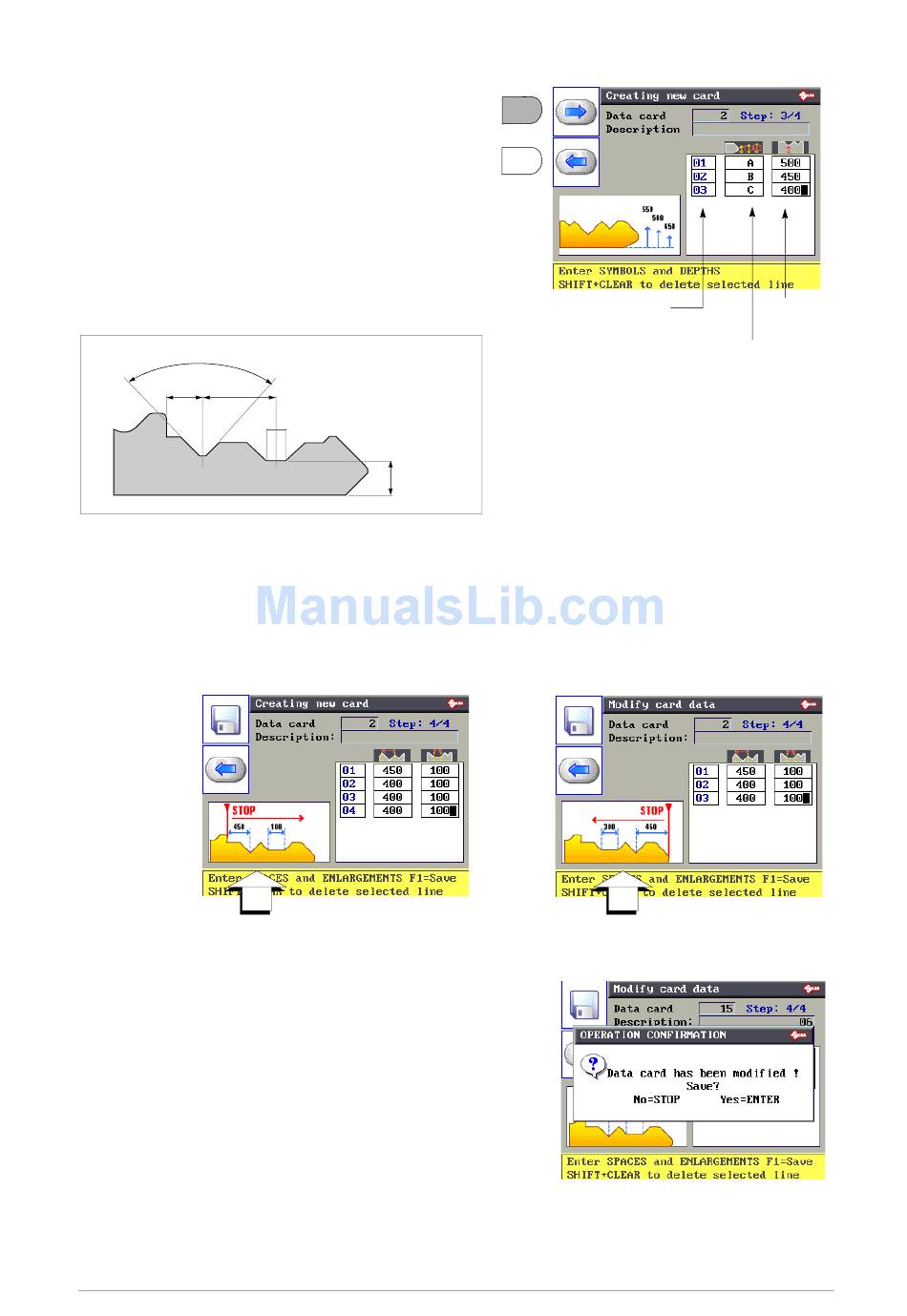

Step 3
flare (base of the cut)
cutting
depths
Copyright Silca 2016
F1
F2
number of
depths entered
Step 4
TIP stop
Unocode 399 PLUS
depths
symbols associated
with depths
