Operating manual - English
5.8.3

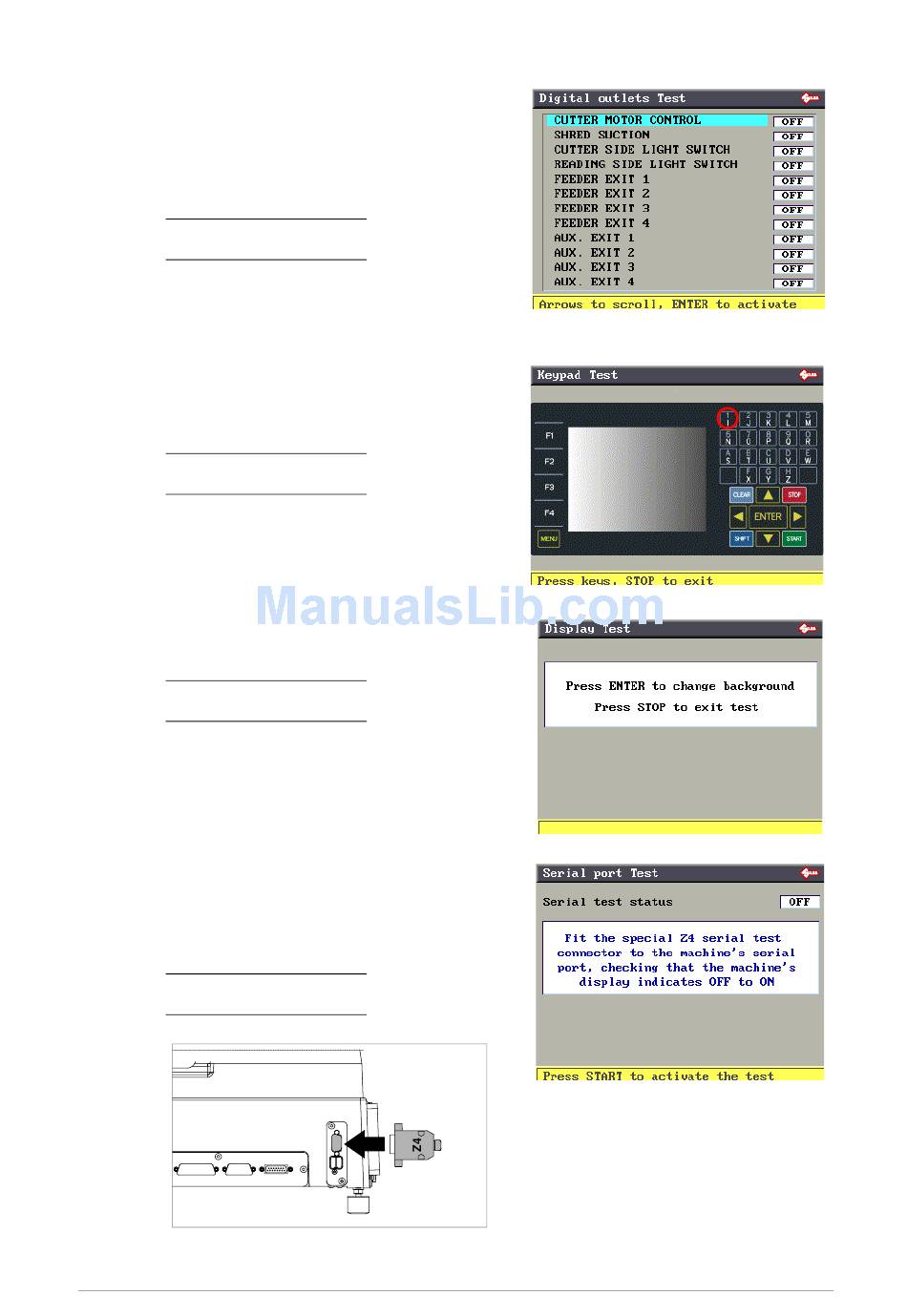

DIGITAL OUTLETS TESTS

Use the up/down arrow keys to move onto the
required field, lower the safety shield and press
START; it will go from OFF to ON.
- In the case of the cutter, the motor will also start.
- In the case of the cutting side or reading lamp, the one in ques-
tion will illuminate momentarily.
Note: if this is not so, contact Silca's Technical Assistance
Dept.
This test (Exit...) can be carried out only when an automatic
feeder (or other optional component) is installed on the
machine.
5.8.4

KEYPAD TEST

Press all keys (except STOP) one at time and verify
that for every key pressed the display shows the
same key circled. Press STOP at the end of the
operation to quit the test.
Note: if this is not so, contact Silca's Technical Assistance
Dept.
5.8.5

DISPLAY TEST

Press ENTER repeatedly to verify changes in the
background colour.
Note: if no changes are noticed, contact Silca's technical
assistance department.
Press STOP to exit Test.
5.8.6

SERIAL PORT

Check that the machine's display indicates OFF.
Fit the special (Z4) serial test connector (accessories
provided) to the machine's serial port.
Press START and check that the machine's display
indicates OFF to ON.
Note: if the ON/OFF transition is not made, contact Silca's
Technical Assistance Dept.
Fig. 33
Copyright Silca 2016
Unocode 399 PLUS
45
