5.7.1 C
ALIBRATE

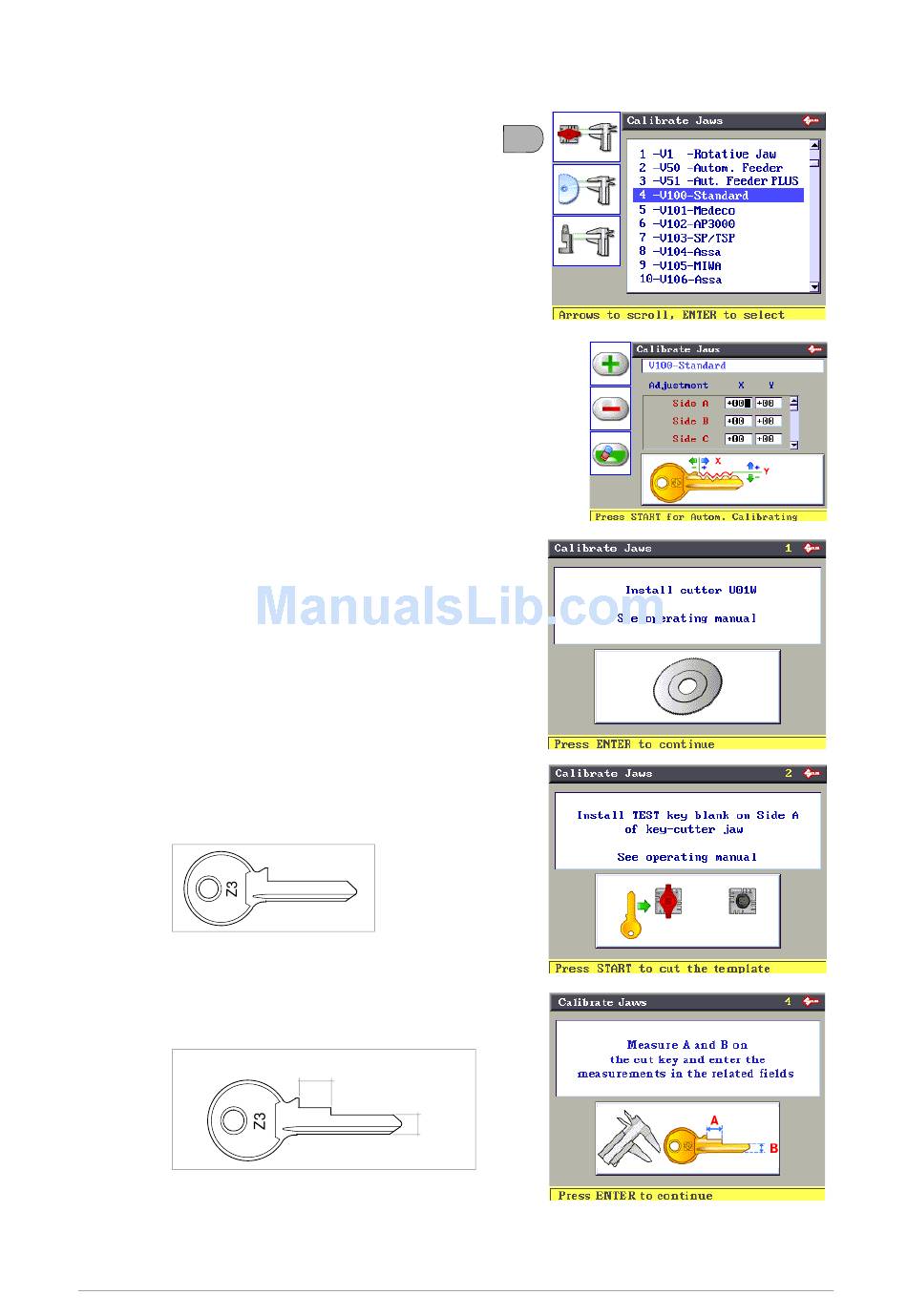

1) Press F1 to access the list of clamps.
2) Select standard clamp V100, then press ENTER.
3) Press START to proceed with automatic calibration; the display
will show:
4) Press ENTER, the display will show:
5) Make sure the U01W standard prismatic cutter is installed.
ATTENTION:if the original Silca U01W cutter is
replaced with one that is NOT original or has been
sharpened, it will be necessary to repeat clamp
calibration and also gauge all the optional
cutters.
6) Press ENTER, the display will show:
7) Fit the test key blank (Z3 template) into side A of the clamp (Stop
0).
Fig. 31
8) Press START.
9) Clean the previously cut test key (template Z3) and measure
measurements A and B with a centesimal gauge.
Fig. 32
10) Press ENTER.
STANDARD JAWS
A
